E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Trunk / Liftgate Shock / Support
>>
Service and Repair
Trunk / Liftgate Shock / Support: Service and Repair
AR72.20-P-3600B Removing And Installing Tailgate Gas Pressure Strut

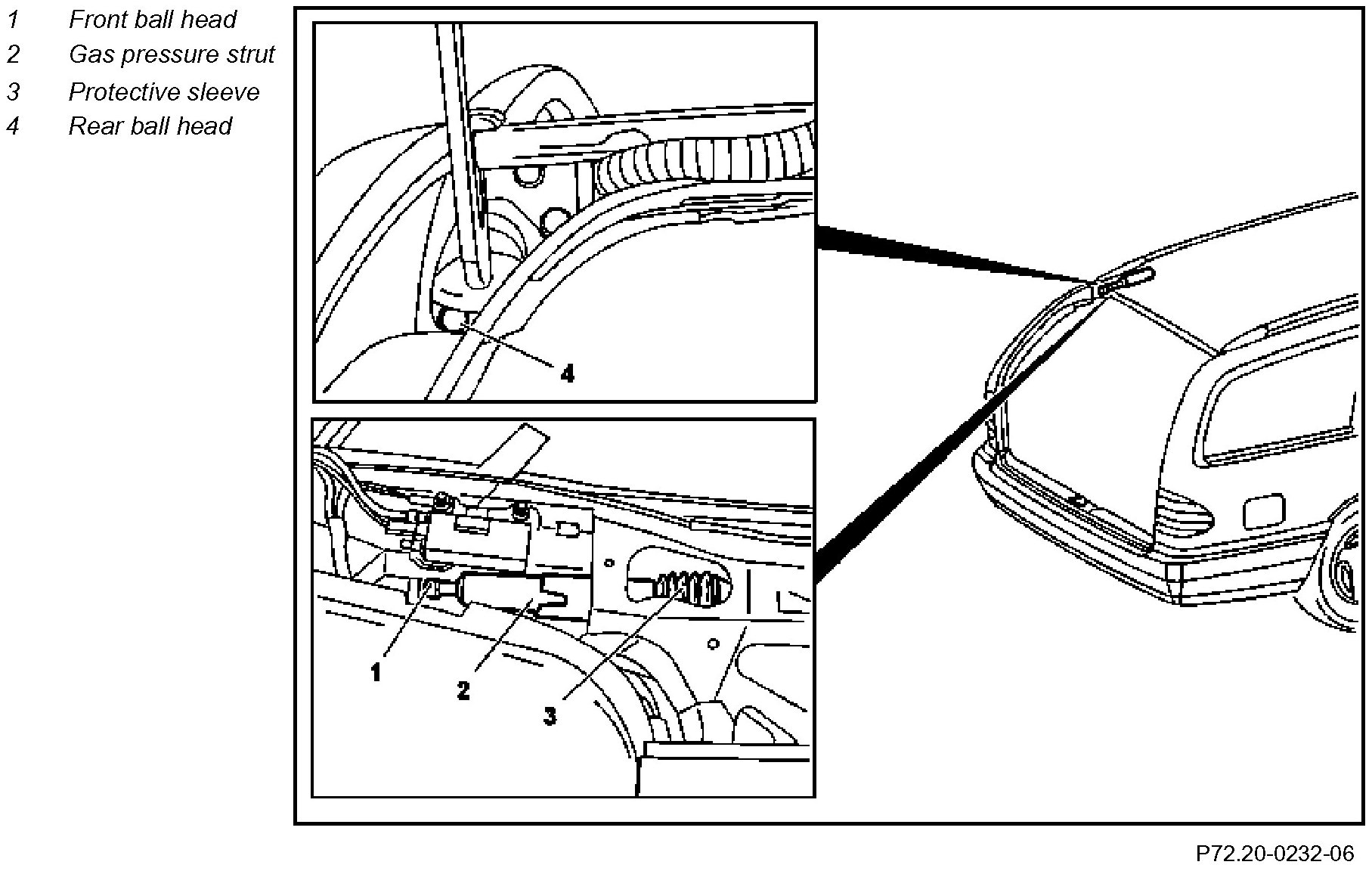

Component Identification:

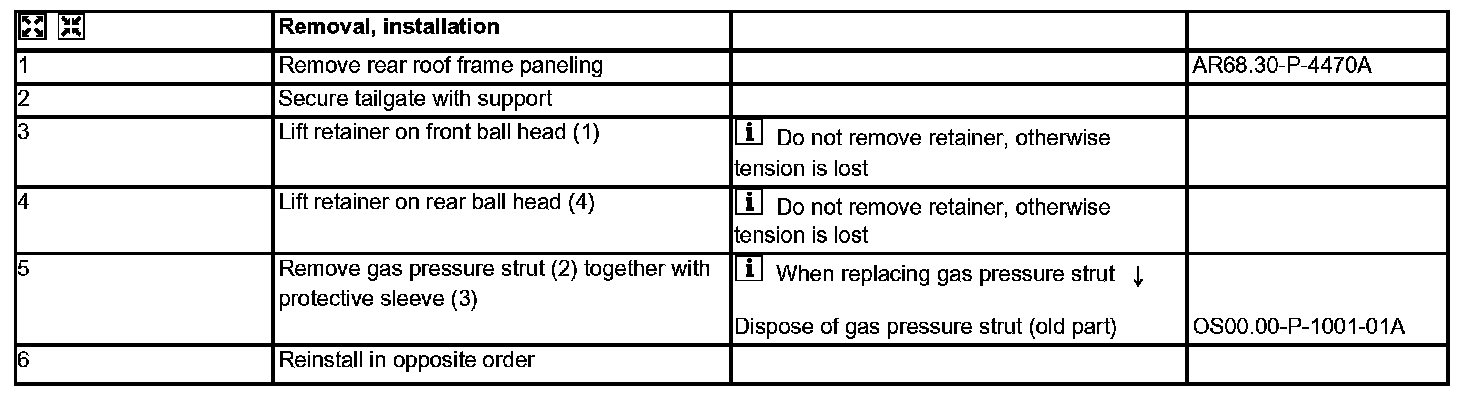

Steps 1 - 6:
