Trunk / Liftgate Latch: Service and Repair
AR72.20-P-2550B Removing And Installing Tailgate Lock

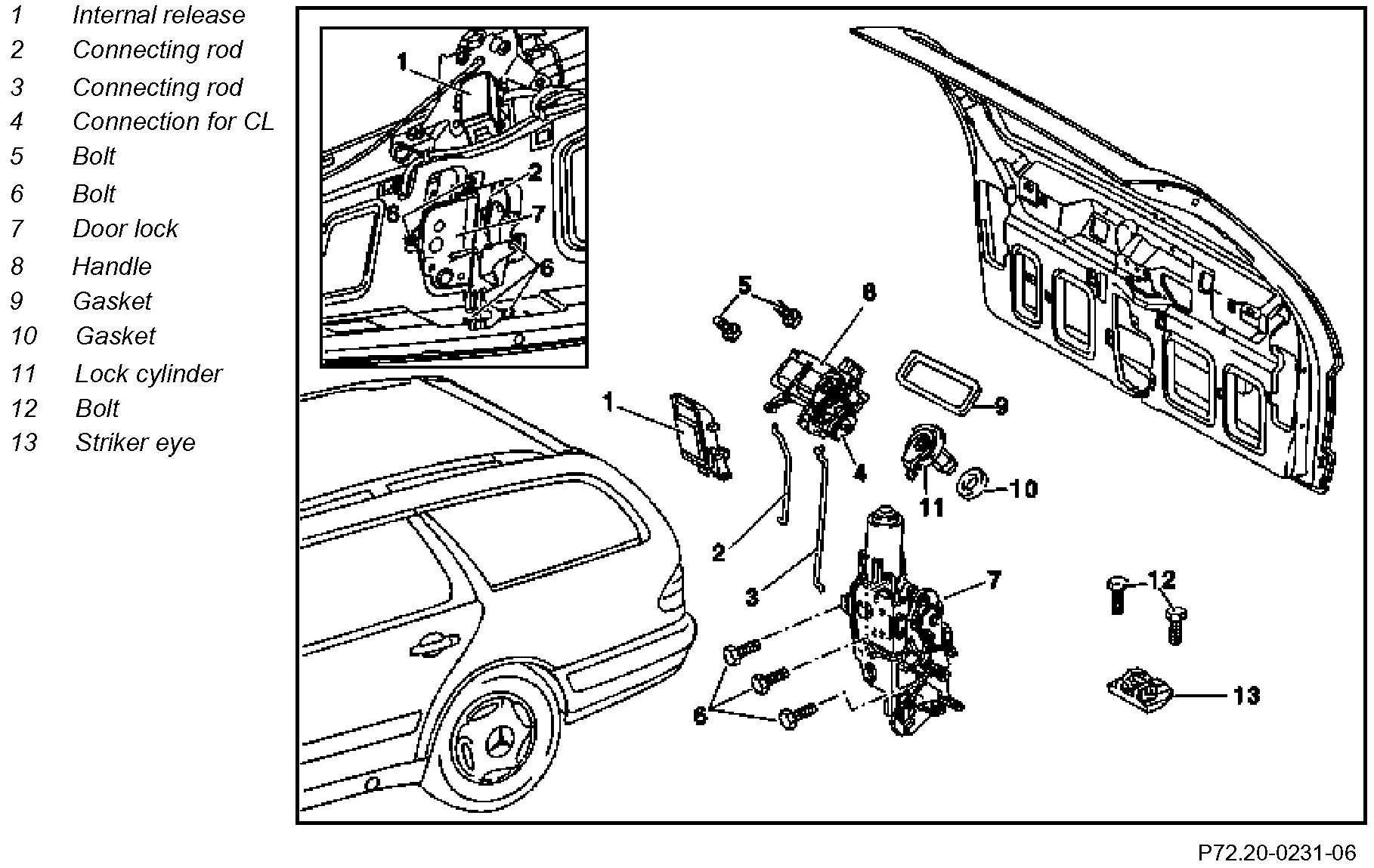

Component Identification:

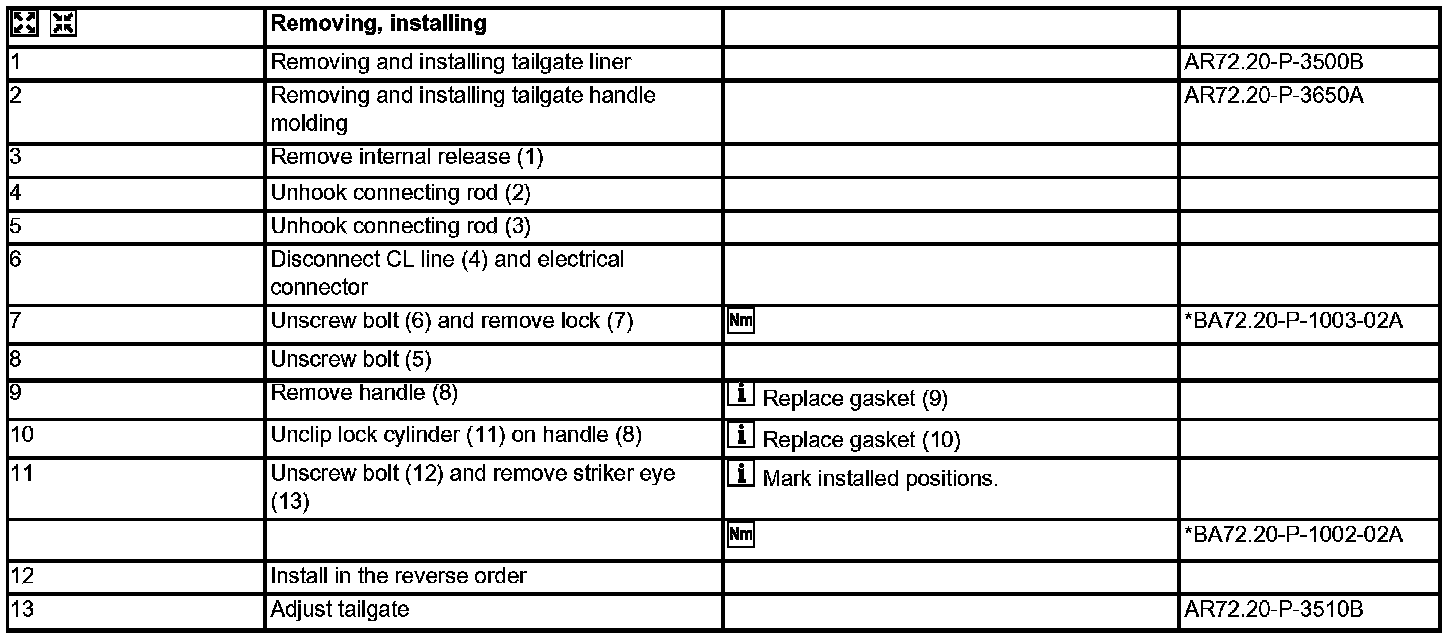

Steps 1 - 13:

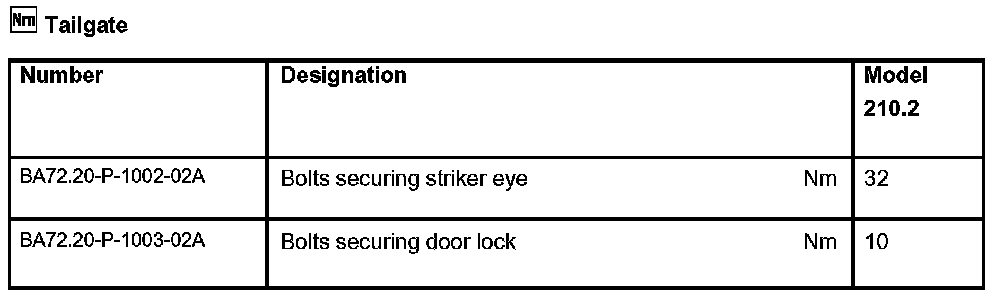

Tailgate:
