Trunk / Liftgate Interior Trim Panel: Service and Repair
AR68.30-P-1050B Removing And Installing Liner On Tailgate

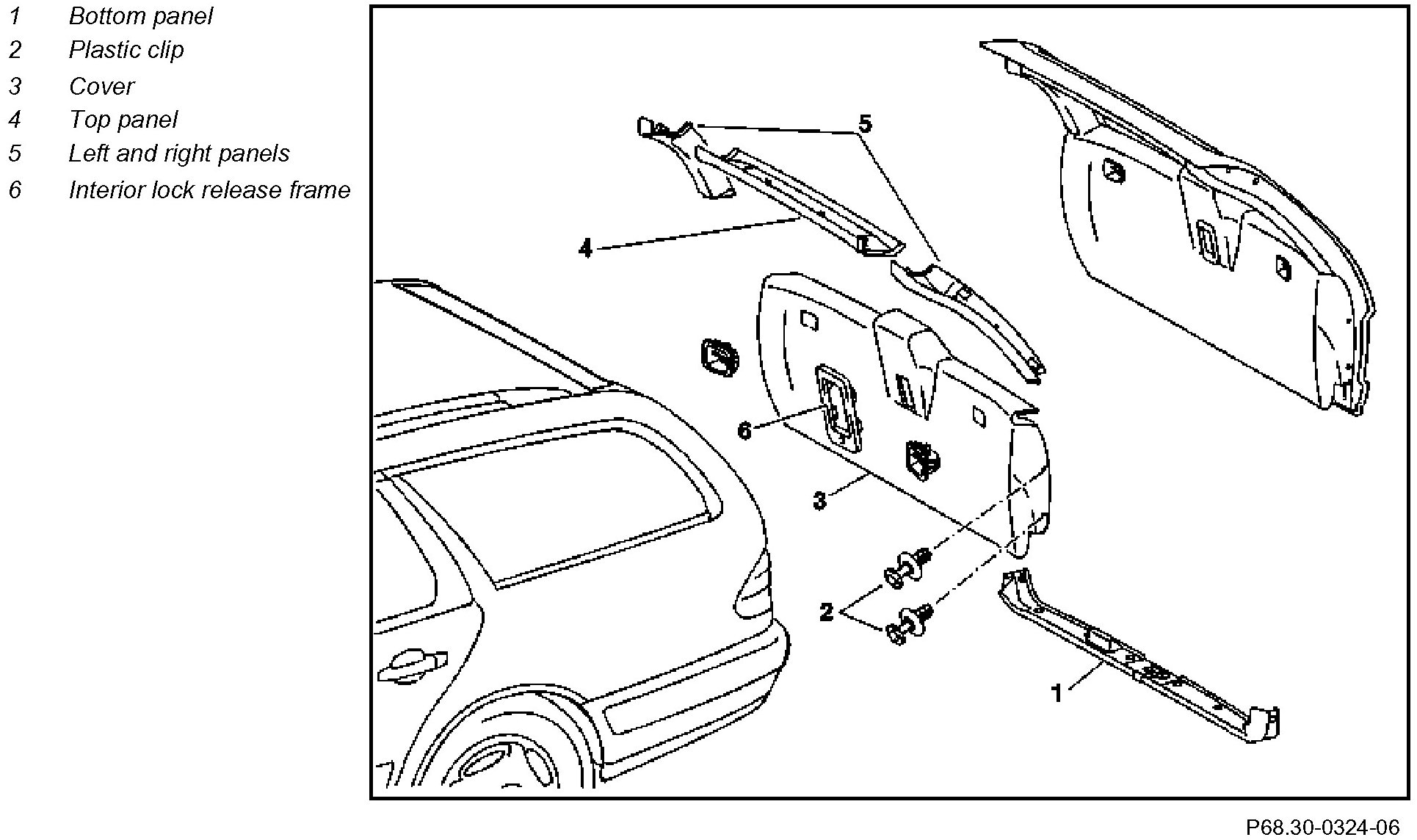

Component Identification:

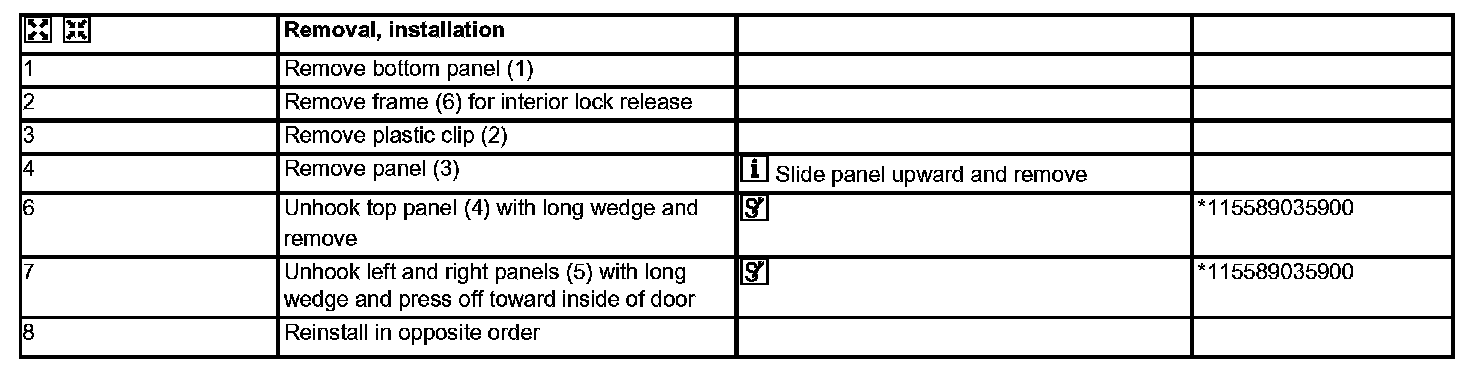

Steps 1 - 8:

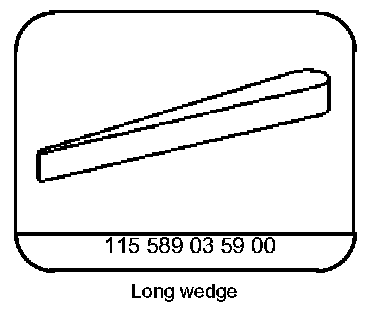

Special Tools:
