Hood Hinge: Service and Repair

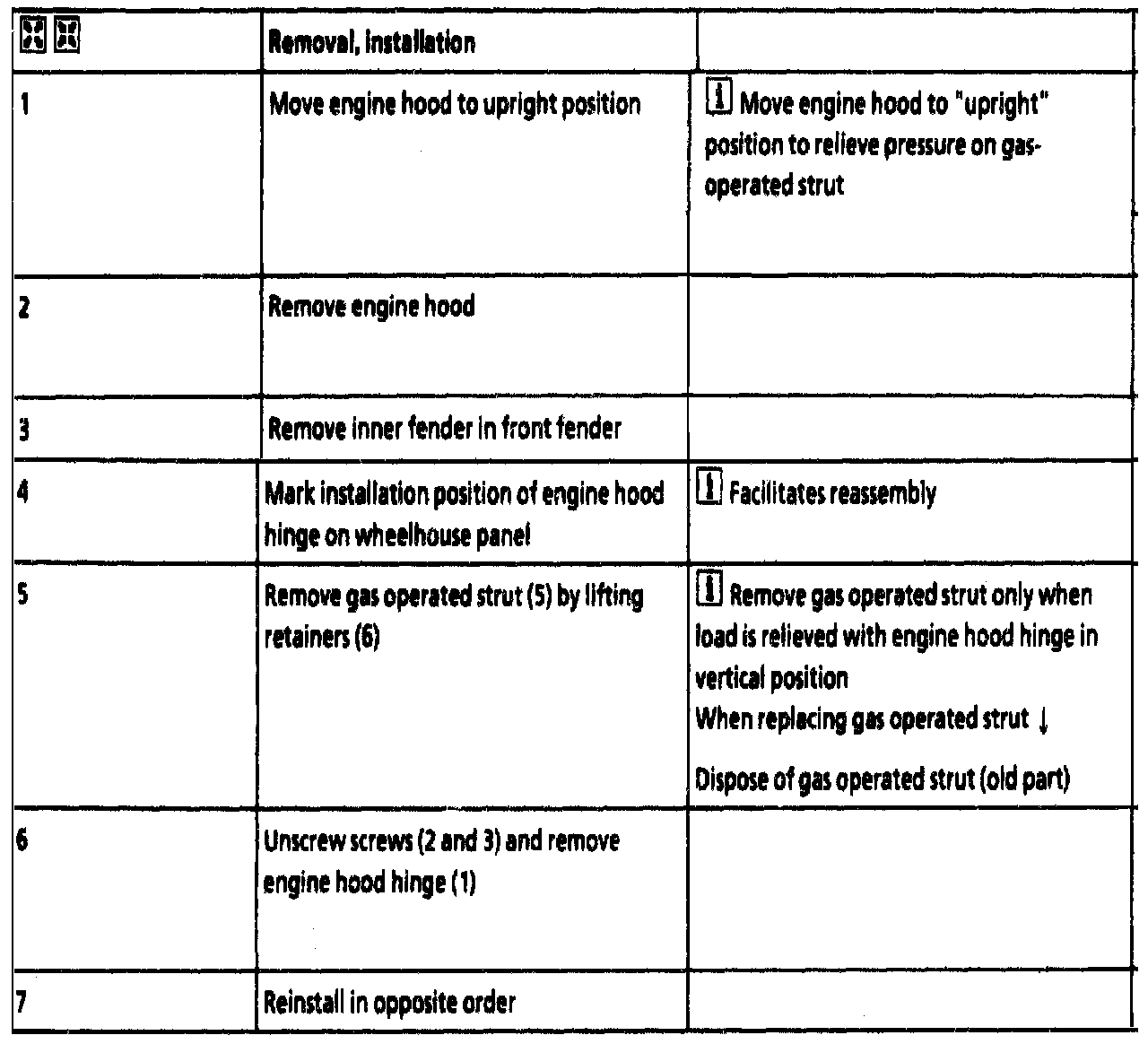

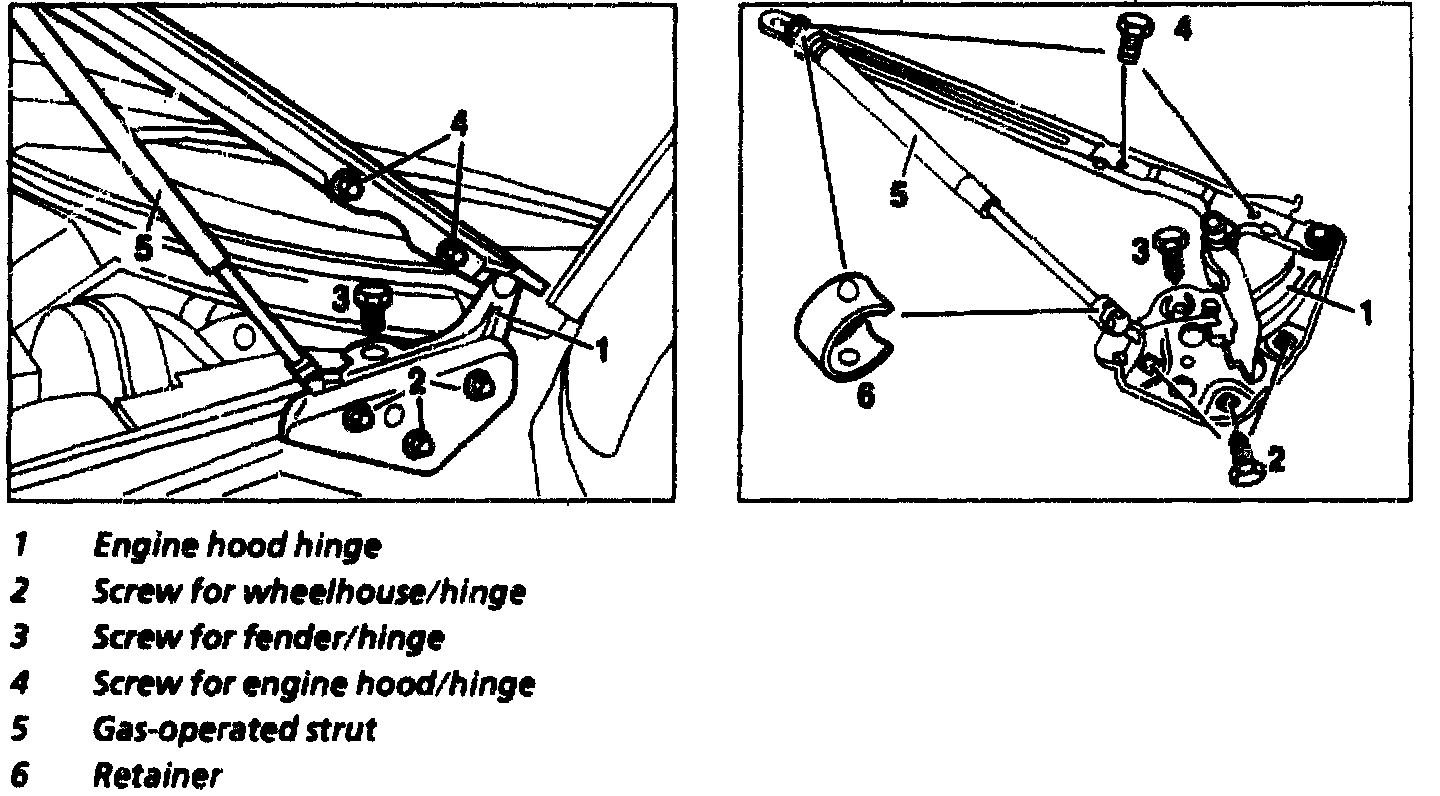

AR88.40-P-3060F Remove/Install Engine Hood Hinge












Tightening Specifications
Nuts/bolts on engine hood hinge
Model 208: 12 Nm
Model 210: 10 Nm
