Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Front Bumper Bracket >> Service and Repair

Front Bumper Bracket: Service and Repair



AR88.20-P-2150F Replacing Bracket On Bumper

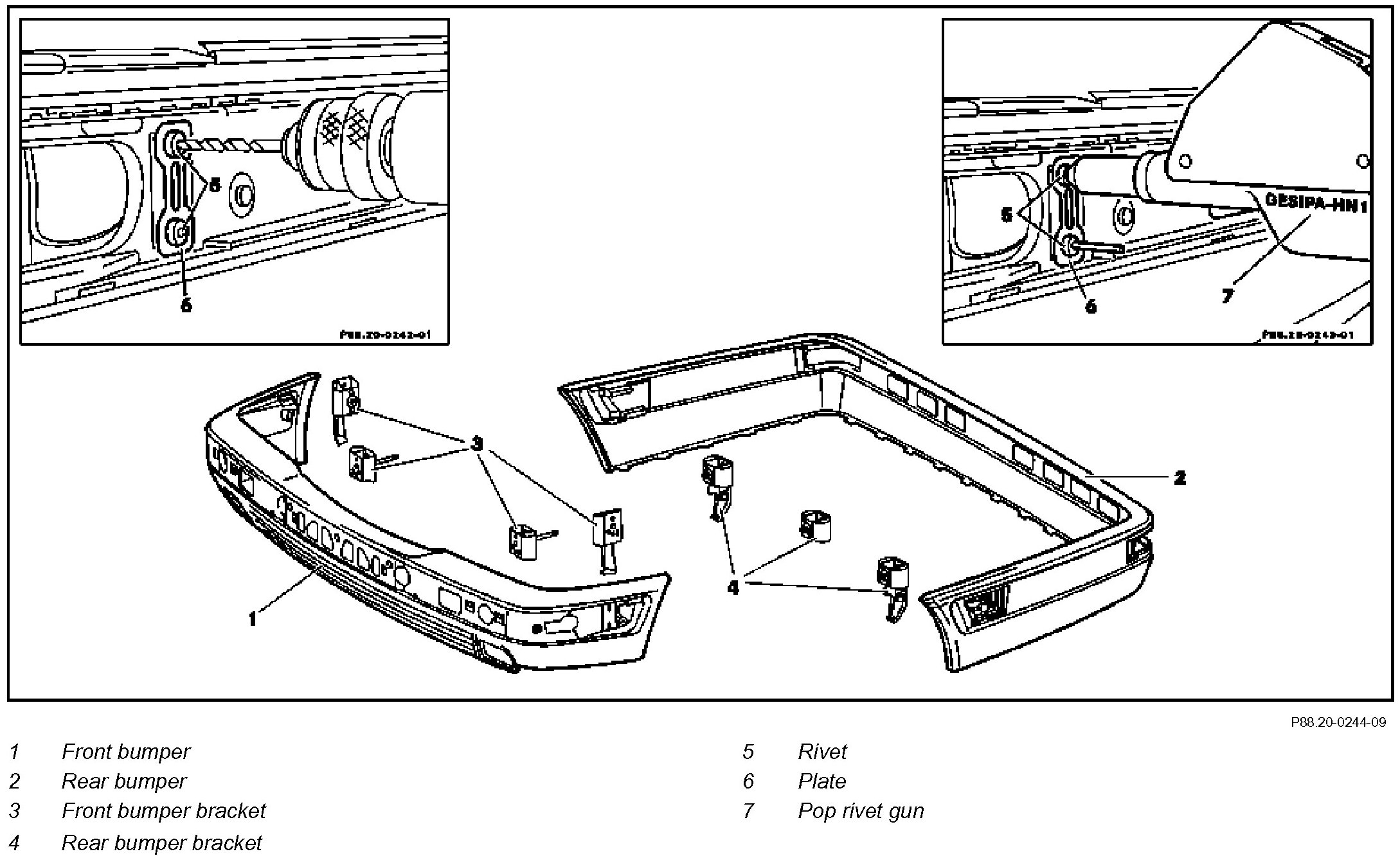

Component Identification:

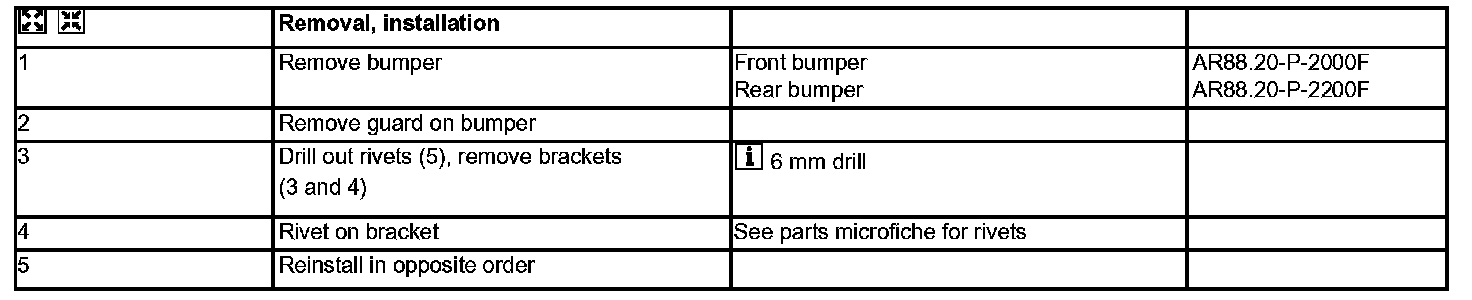

Steps 1 - 5:
