Home >> Mercedes Benz >> 1999 >> E 320 4MATIC Wagon (210.282) V6-3.2L (112.941) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Remove/Install Loudspeaker In Front Door

Remove/Install Loudspeaker In Front Door

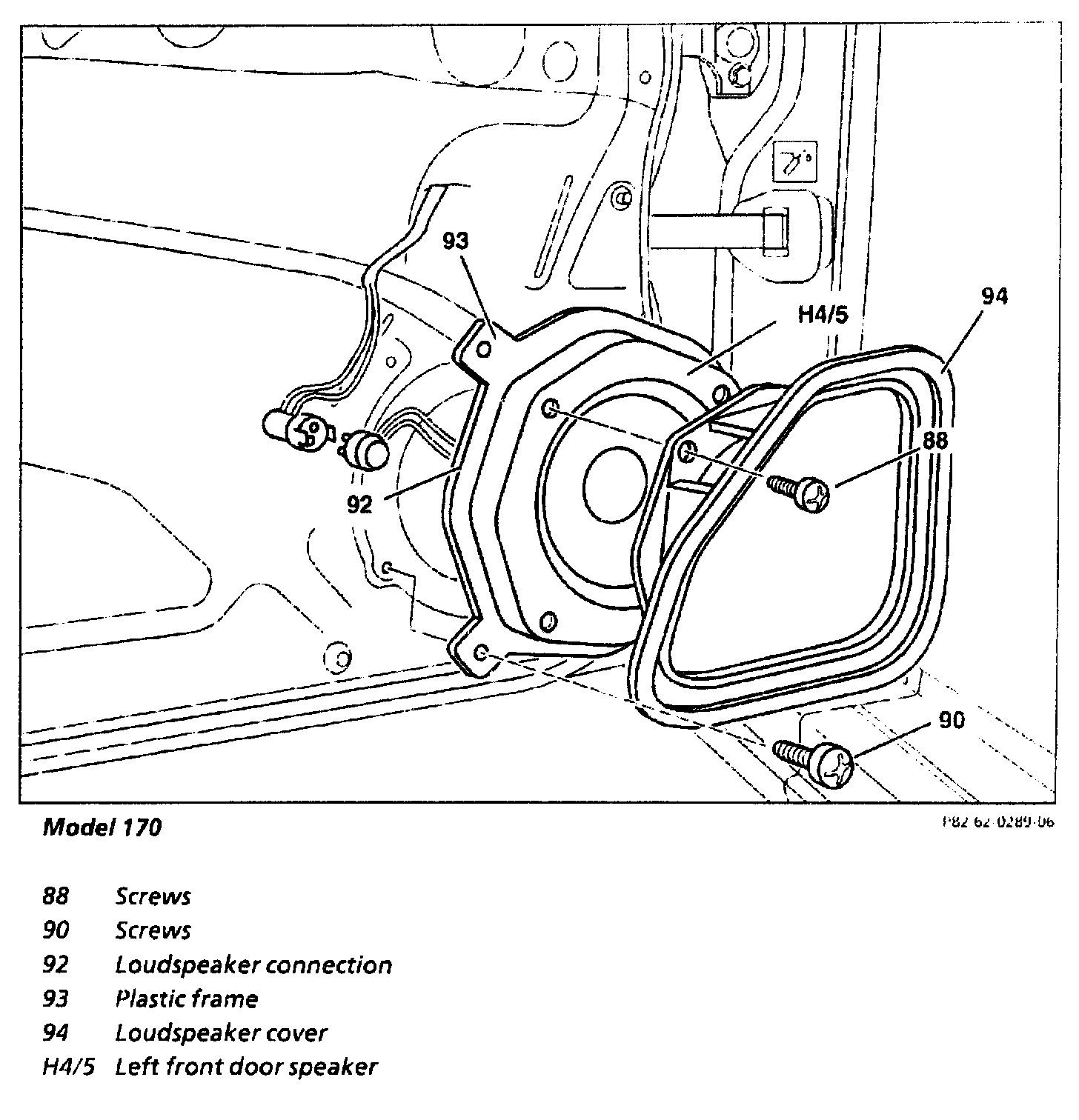

Model 170:

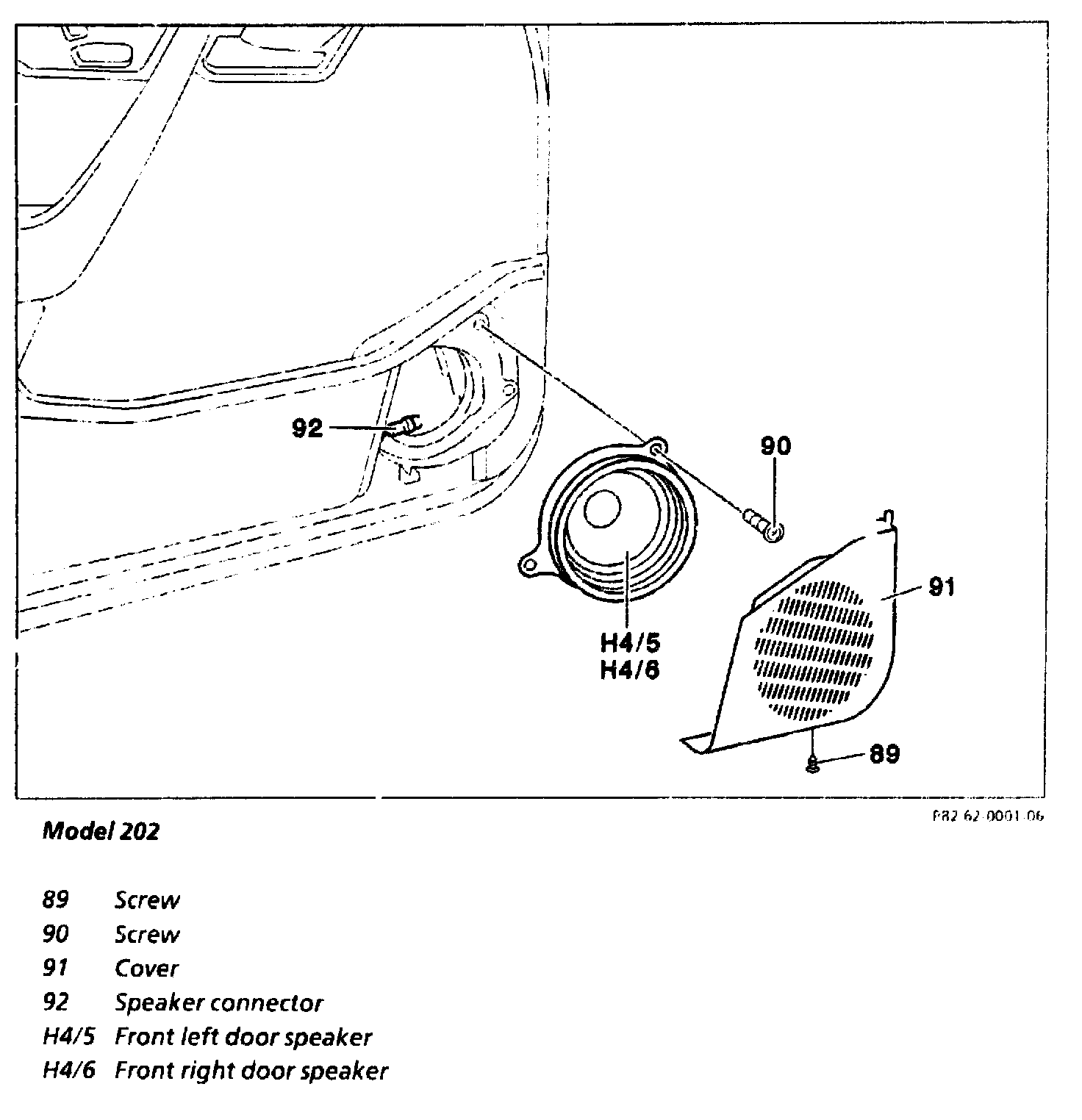

Model 202:

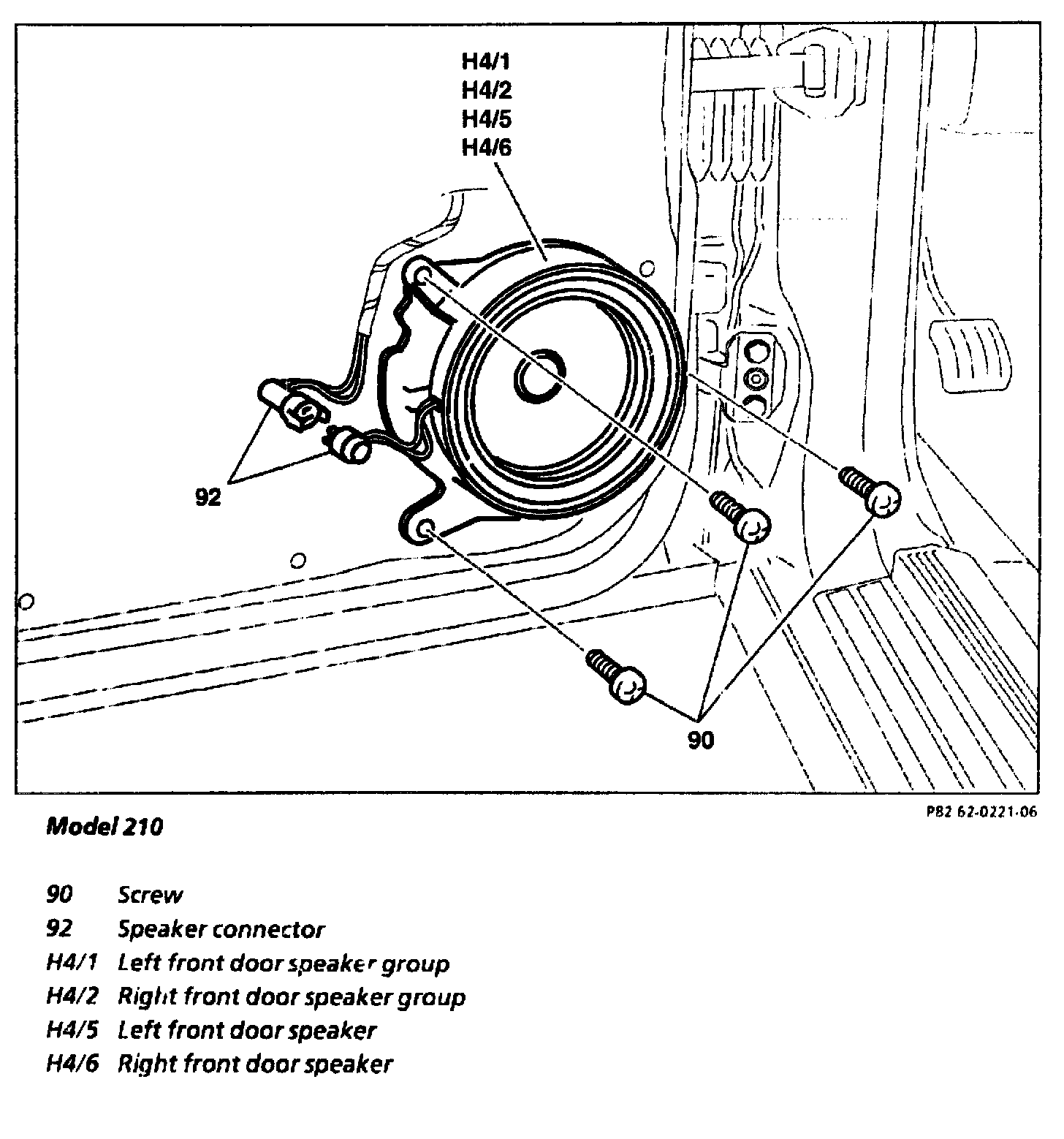

Model 210:

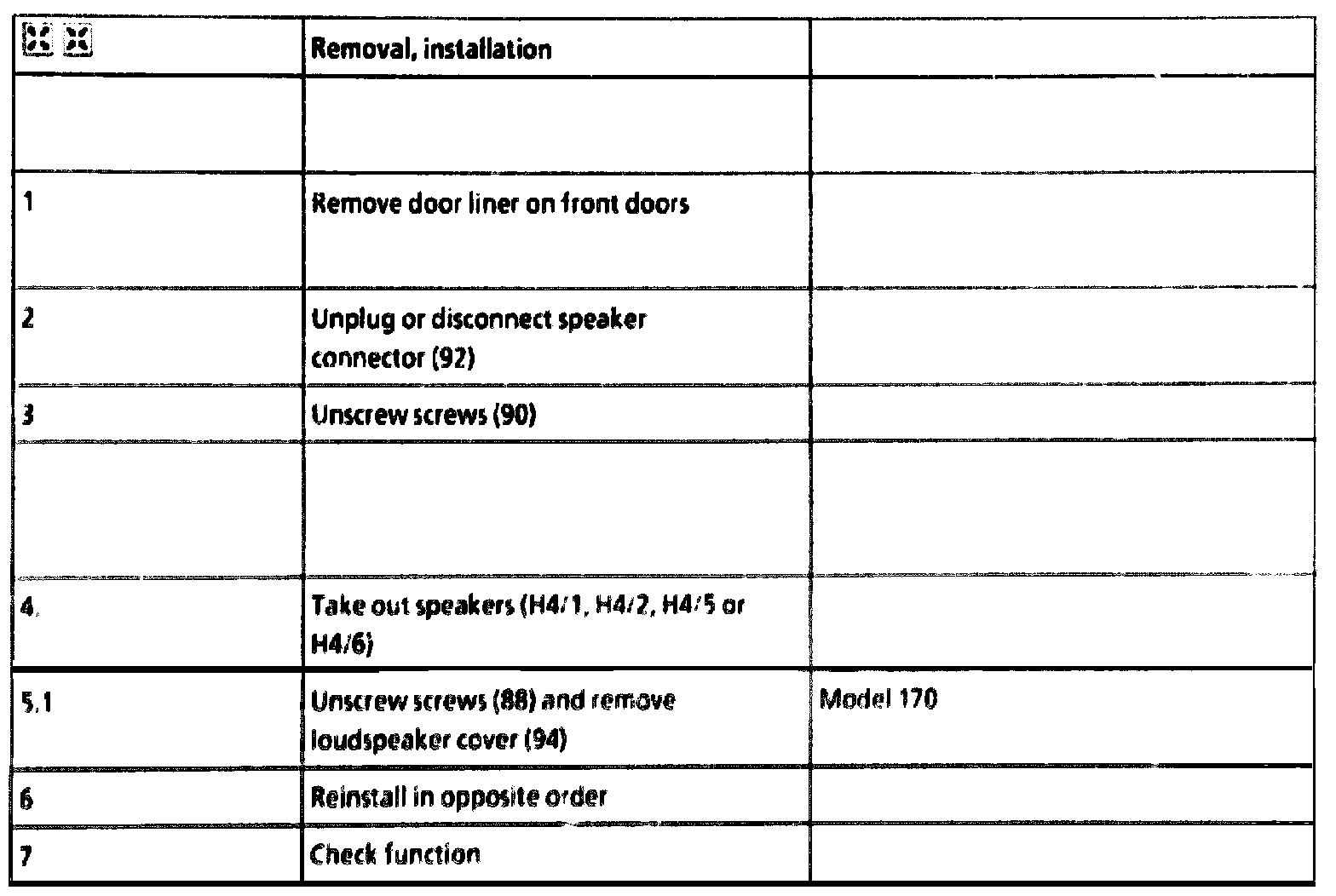

Removal/Installation:
