Locations
>>
With Standard Loudspeaker System
With Standard Loudspeaker System

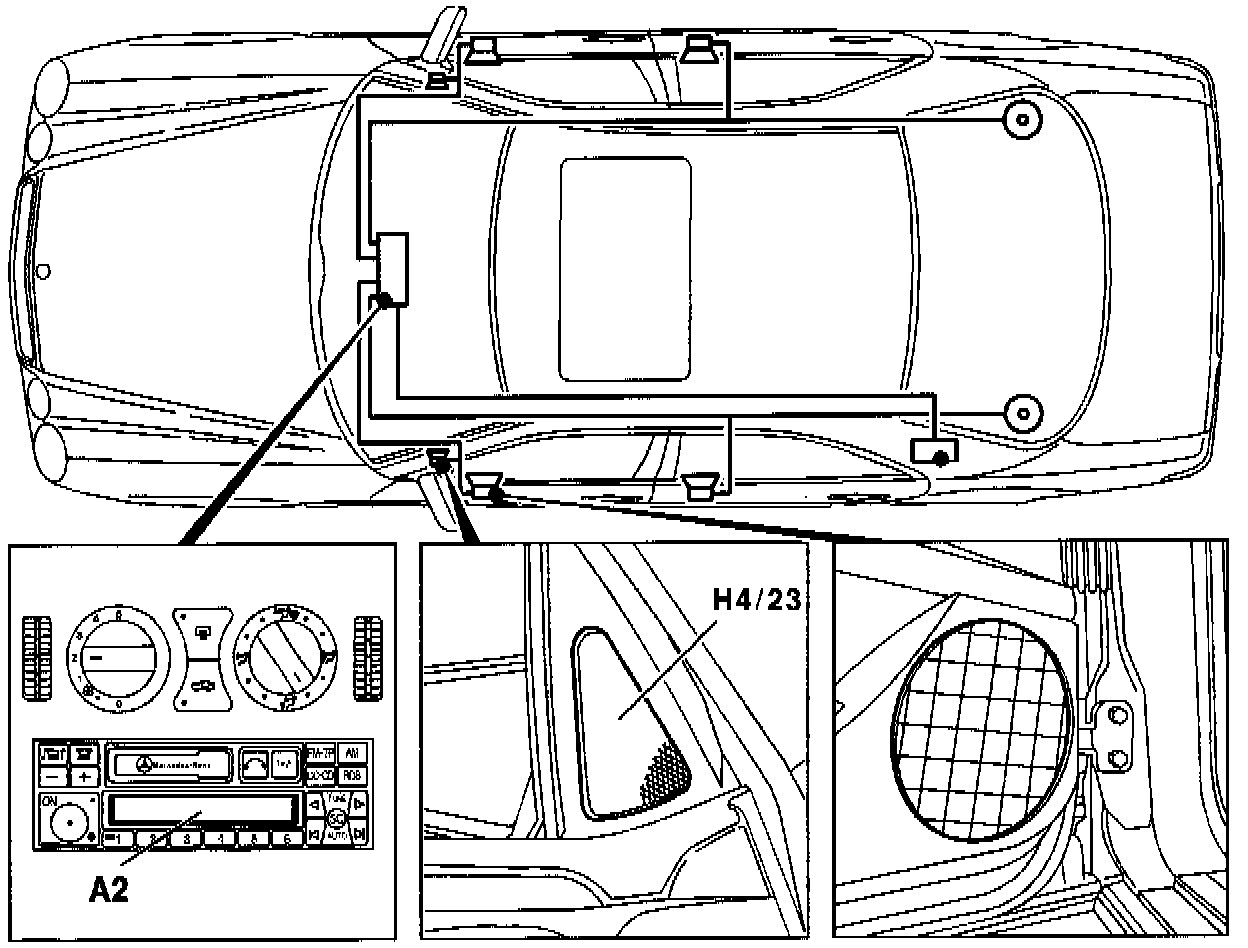

Figure 1 (Front Loudspeaker System):
A2
Radio
H4/23
Left front door mirror triangle speaker

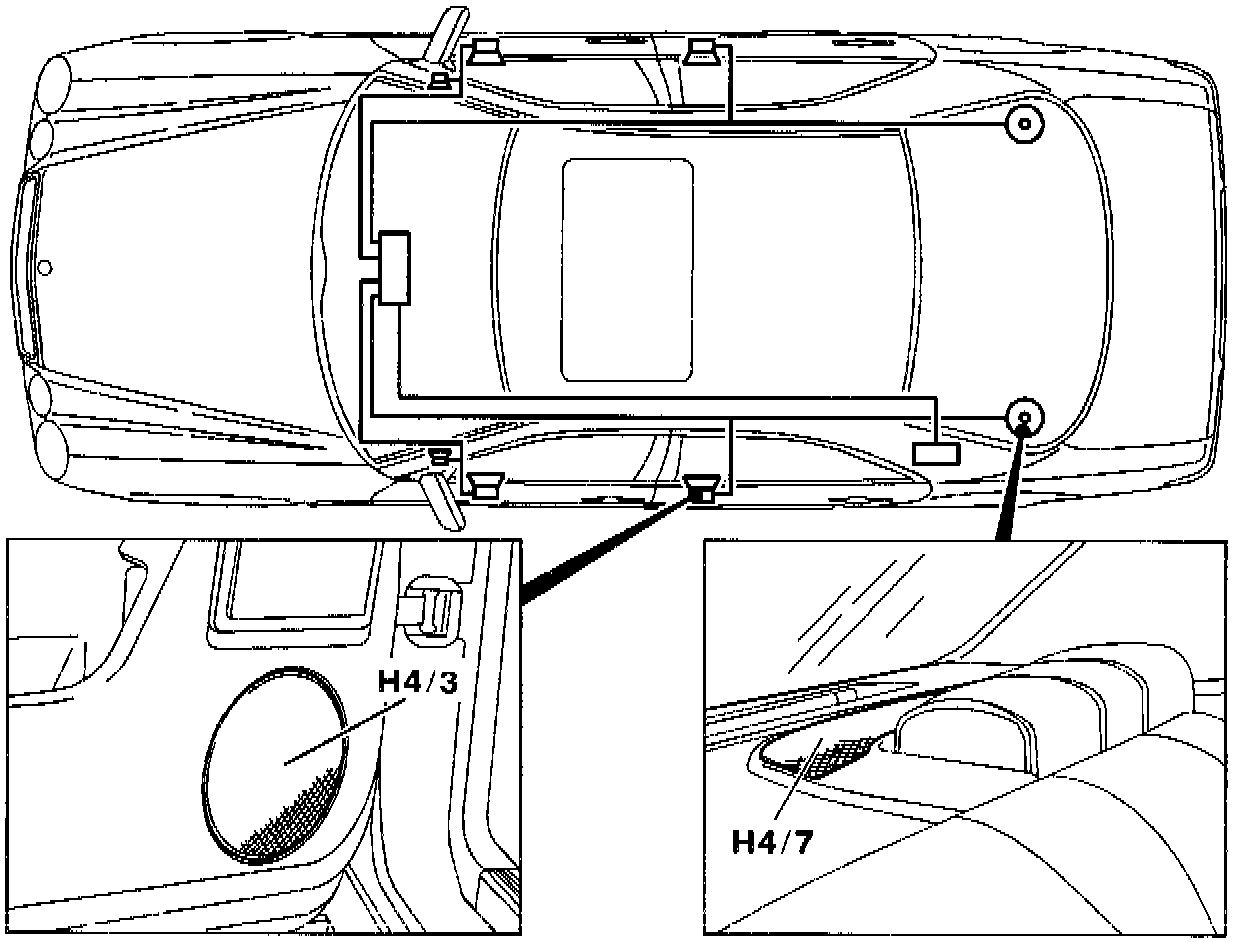

Figure 2 (Rear Loudspeaker System):
H4/3
Left rear door speaker
H4/7
Left rear speaker
