In Rear Dome Lamp
In Rear Dome Lamp
Removal, installation
1

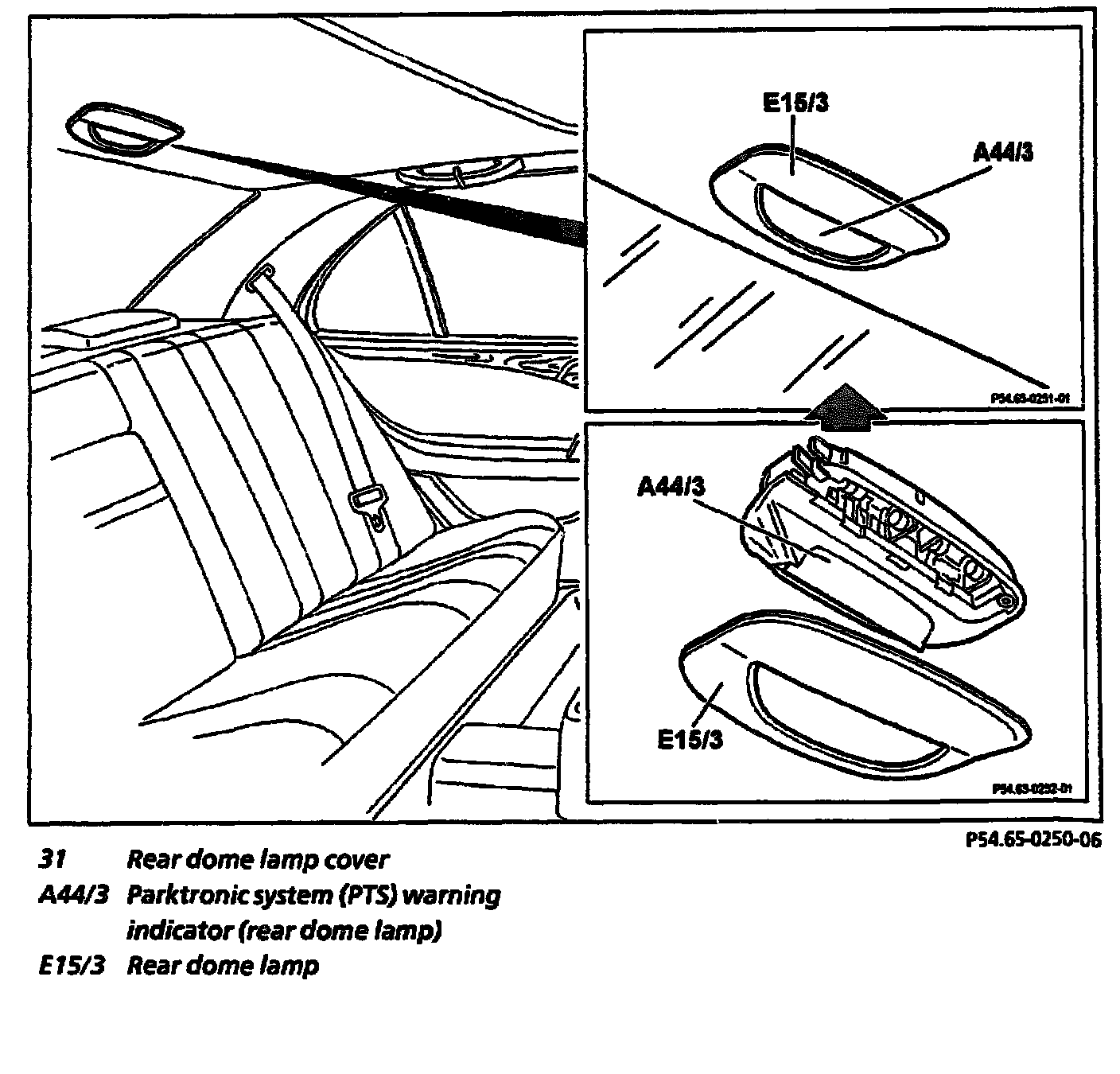

Pull cover (31) off of rear dome lamp (E15/3)
2
Pull rear dome lamp with warning indicator (A44/3) out of headliner
3
Disconnect connectors from dome lamp and warning indicator
4
Reinstall in opposite order
