AN68.50-P-0001A Retrofitting Scissors-type Sunshade For Rear Window

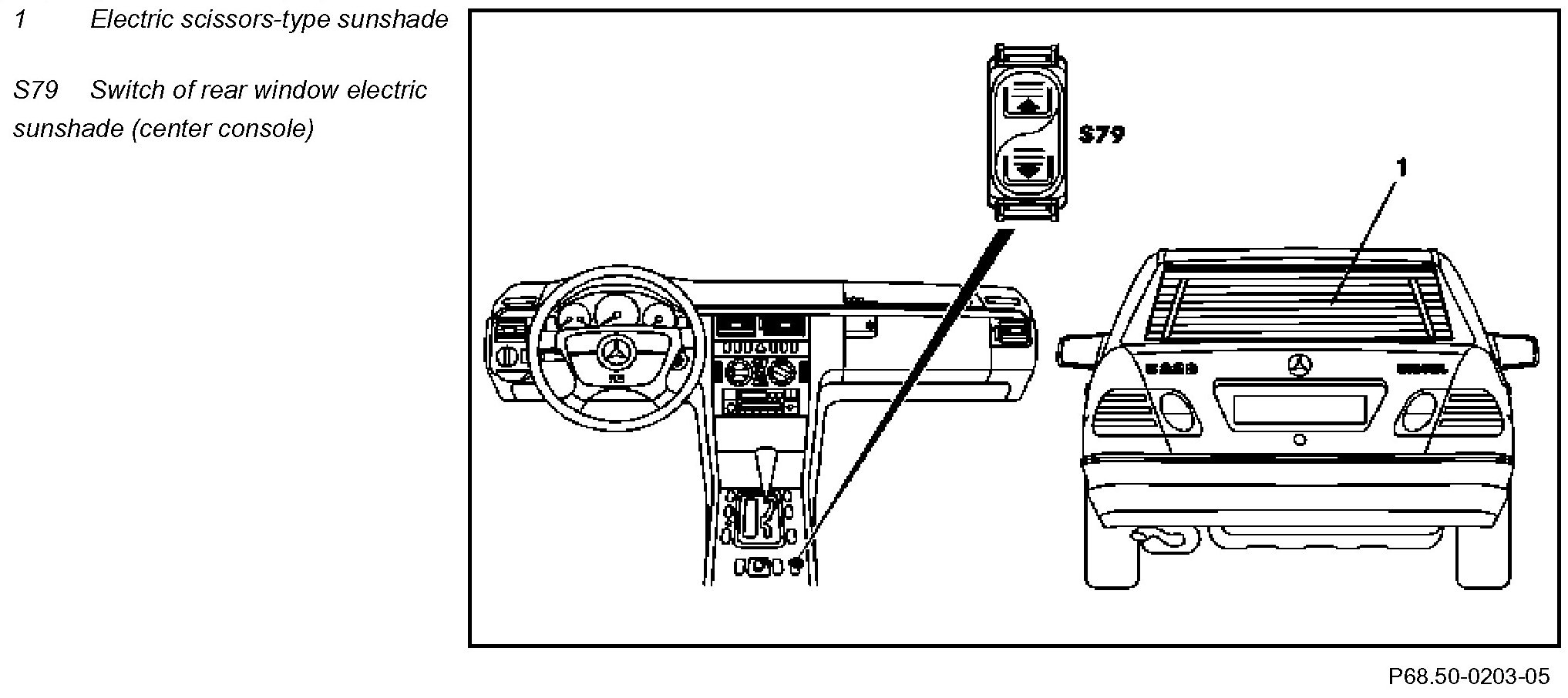

Component Identification:

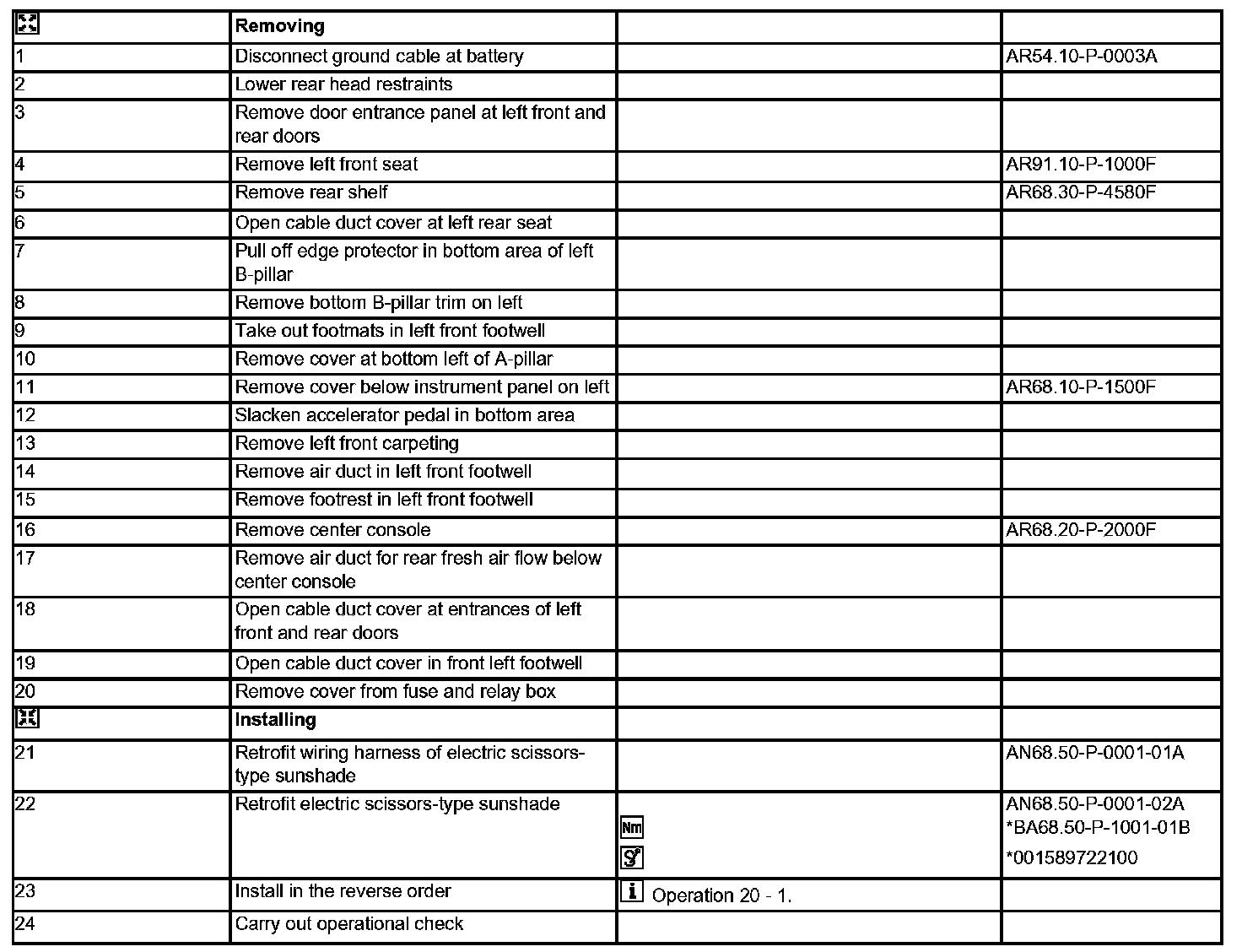

Steps 1 - 24:

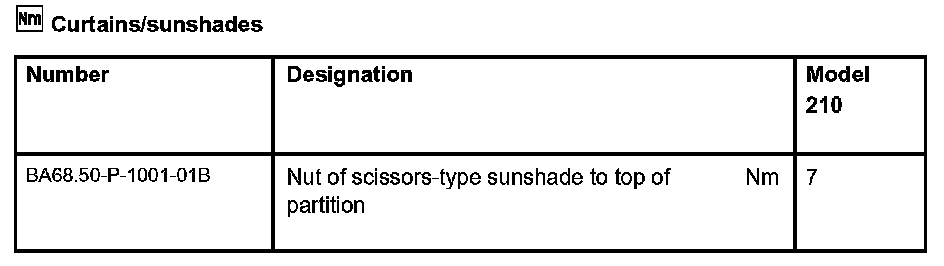

Curtains/Sunshades:

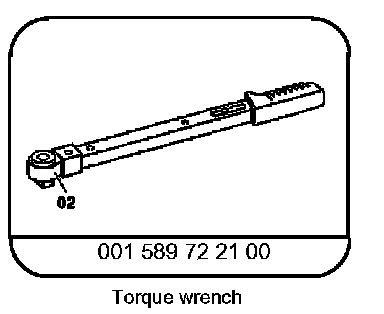

Special Tools:
Parts Ordering Notes:
