AR32.30-P-0610-01A Check/Set Up Distance Between the Suspension Strut and Wheel Arch

AR32.30-P-0610-01A Check/Set Up Distance Between the Suspension Strut and Wheel Arch
- MODEL 202, 203.2, 208, 210
- with CODE (480) Rear axle level control system
- MODEL 210
- with CODE (217) Level control on rear axle with ADS







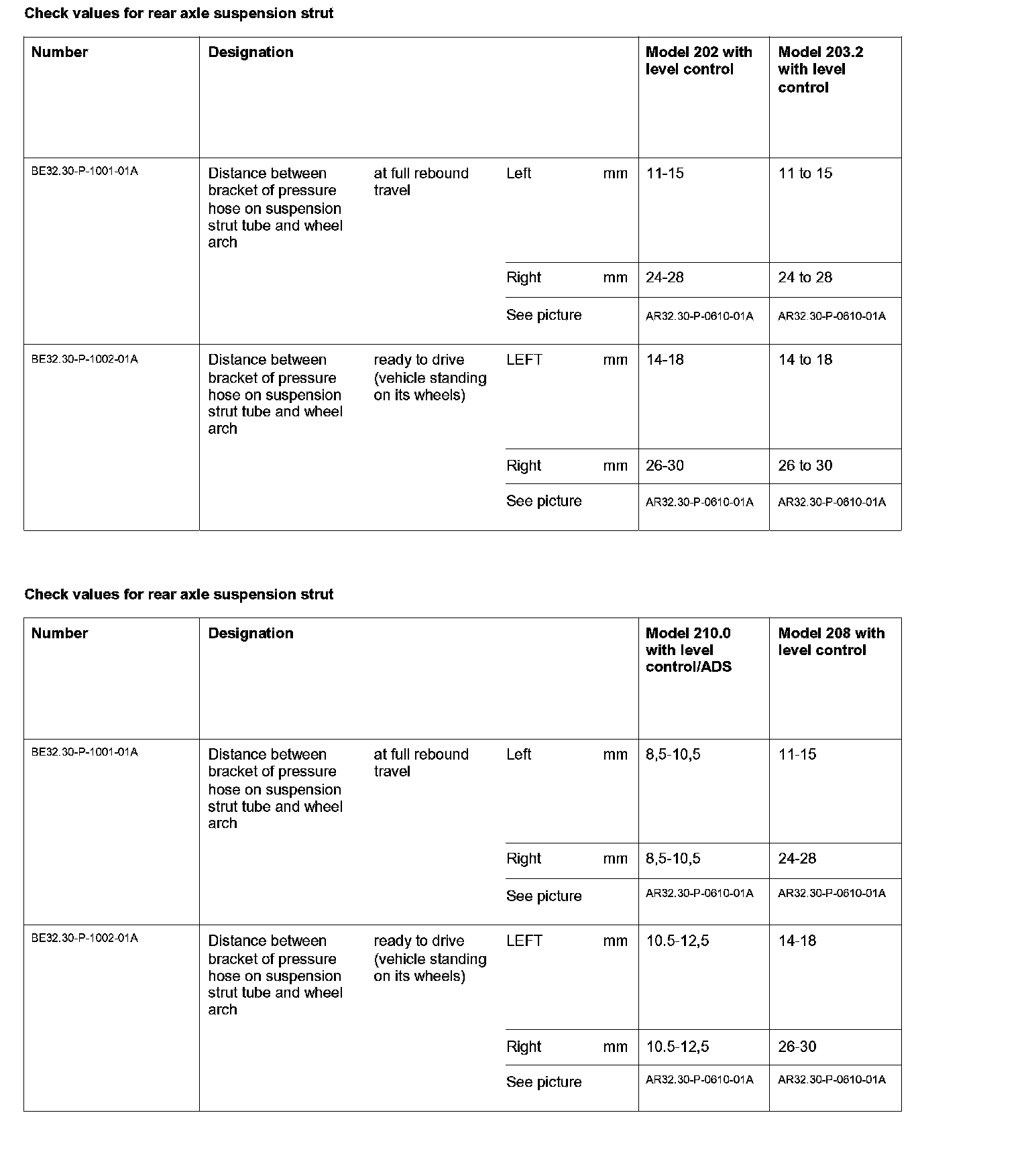

When installing the suspension strut (5) check the distance "a" between the bracket of the pressure hose on the suspension strut tube (arrow) and the wheel arch (70c).

Set up suspension strut

Only set up the suspension strut when the threaded connection of the pressure hose is loosened.
Ensure that the boot on the suspension strut is not installed twisted.








Model 202, 203, 208

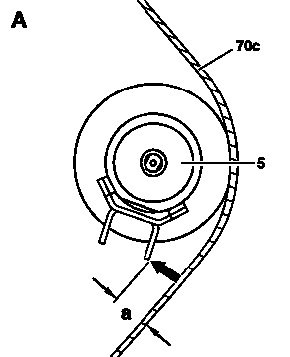

A Location of left suspension strut
B Location of right suspension strut





Type 210.0

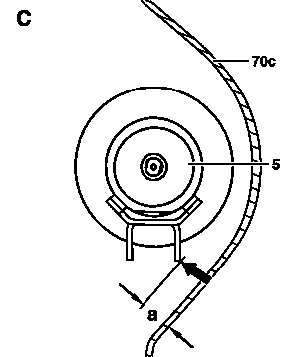

C Location of left suspension strut (location of right suspension strut in mirror reverse)
