E 300TD (210.025) L6-3.0L DSL Turbo (606.962)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Lock
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR46.10-P-0800C Removing and installing the lock cylinder
Component Identification:

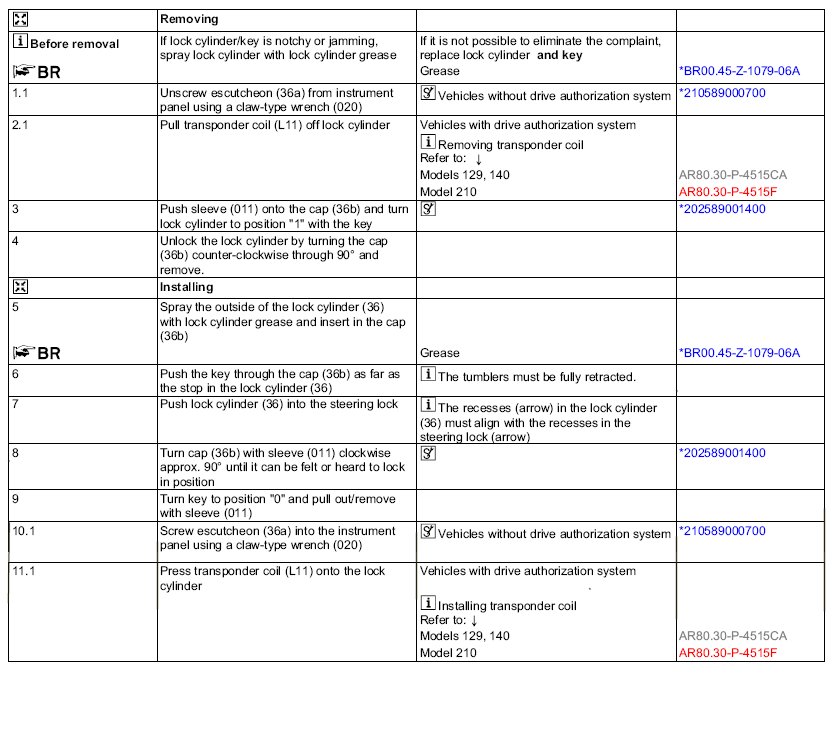

Steps 1 - 11:

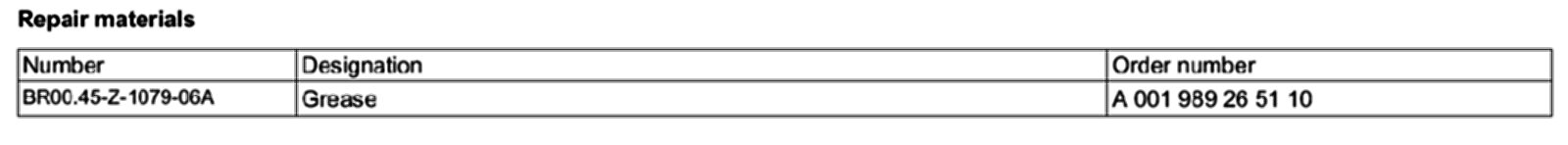

Repair Materials:
Special Tools:
