Check Charging Current of Generator








Illustrated on model 202

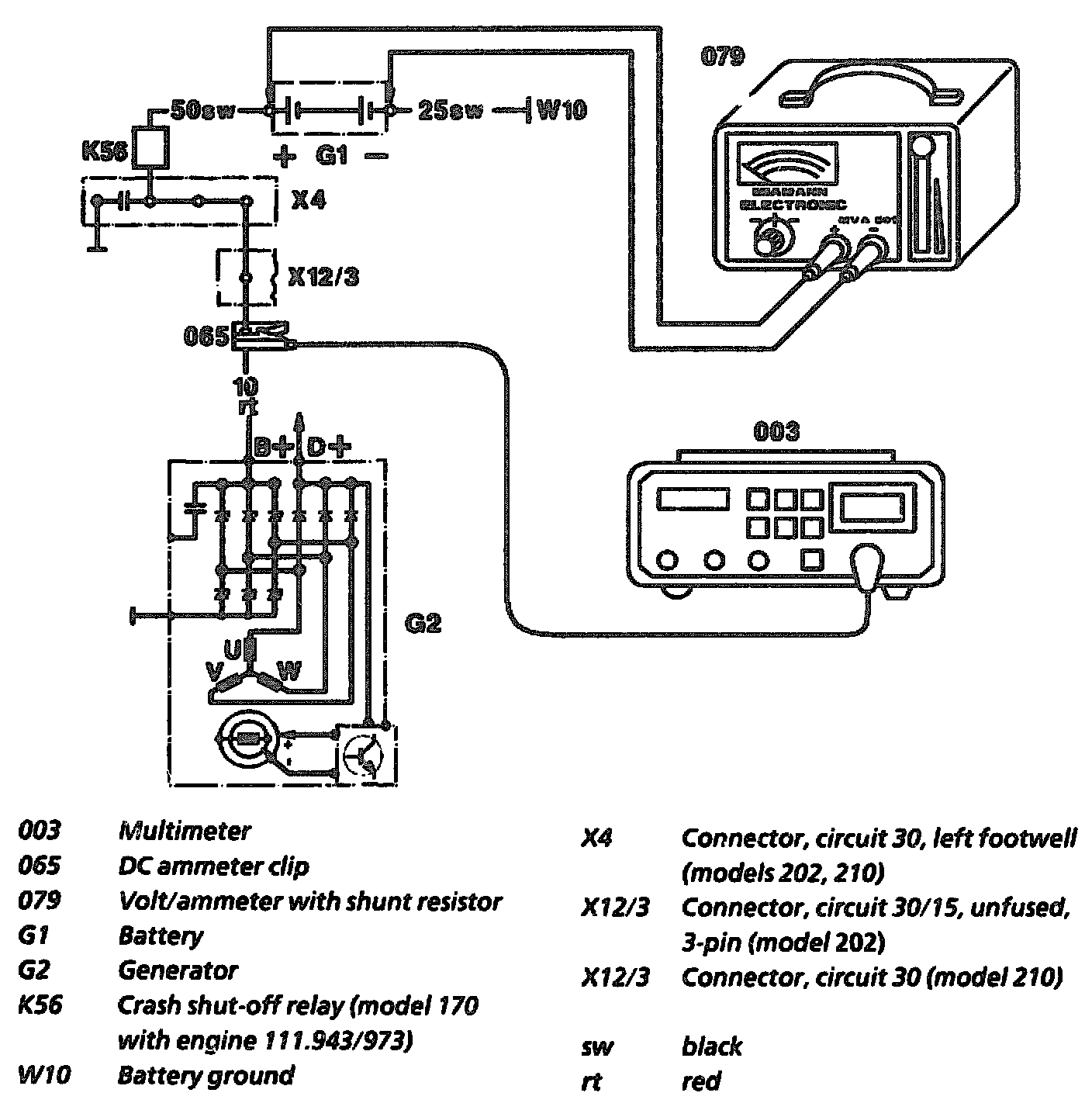

Connection schematic

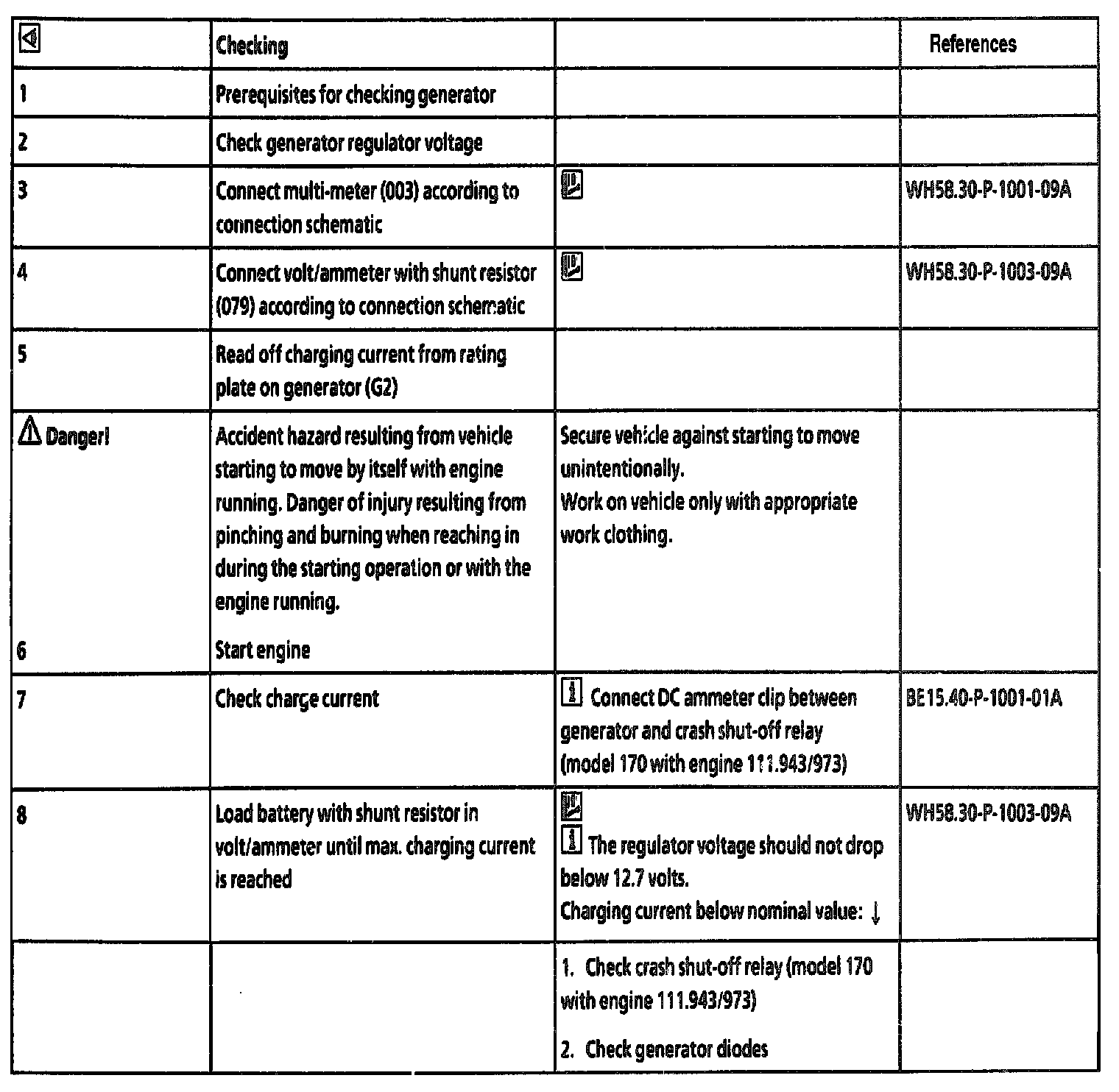

Checking

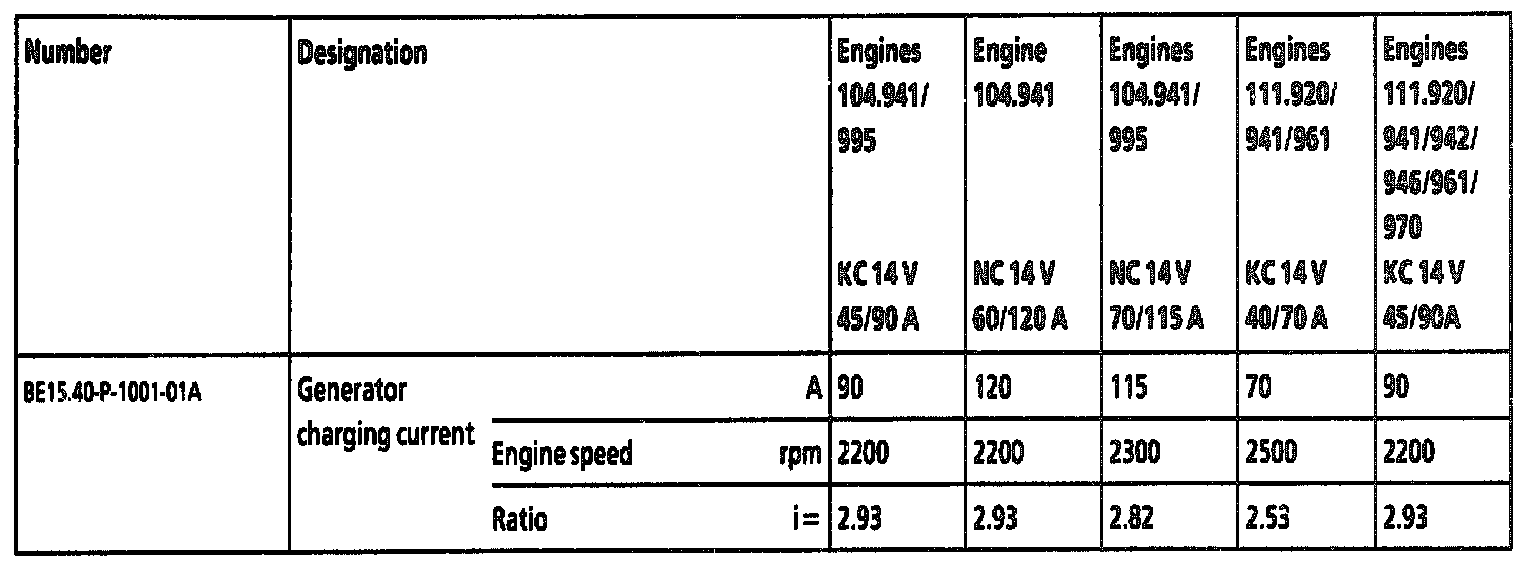

References (BE), Test values for generator, Part 1 of 4

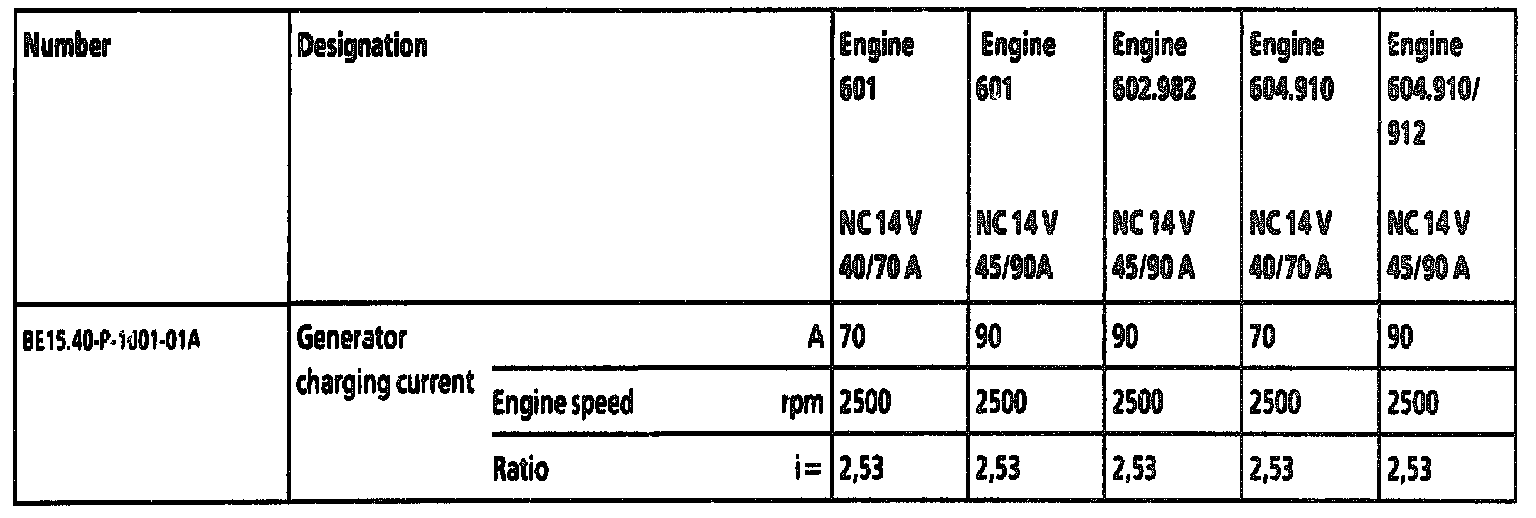

References (BE), Test values for generator, Part 2 of 4

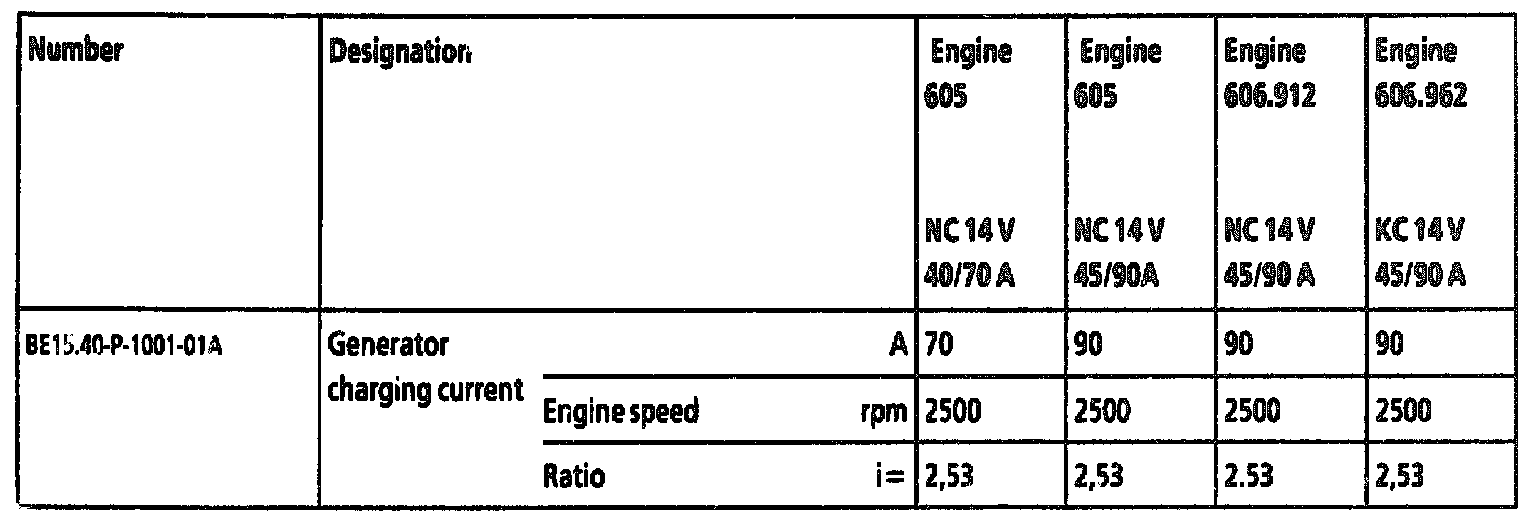

References (BE), Test values for generator, Part 3 of 4

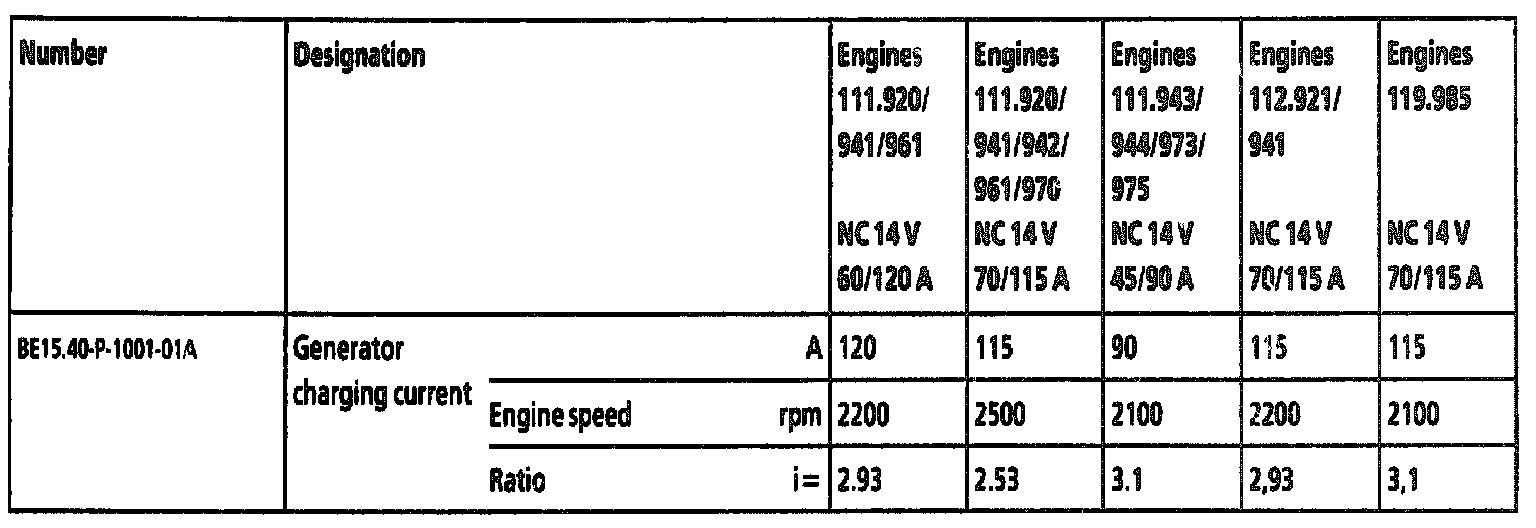

References (BE), Test values for generator, Part 4 of 4

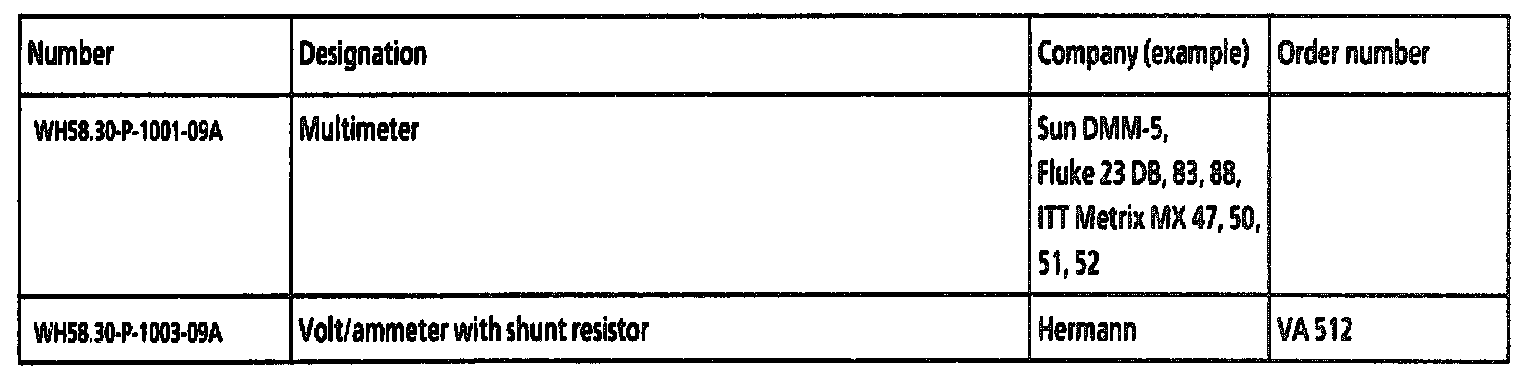

References (WH), Workshop equipment/MB test instruments.
