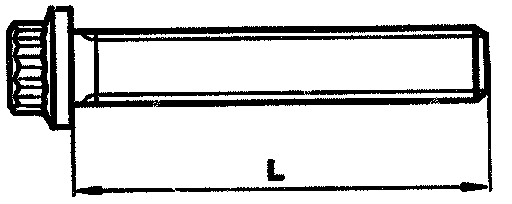

Main Bearing Cap Bolt Dimensions
Main Bearing Cap Bolt Dimensions
DIMENSION SPECIFICATIONS
Thread Diameter:
11 mm
Bolt Length:
When New:
61.8-62.2 mm
Maximum:
63.8 mm
