Sunroof / Moonroof Switch: Service and Repair

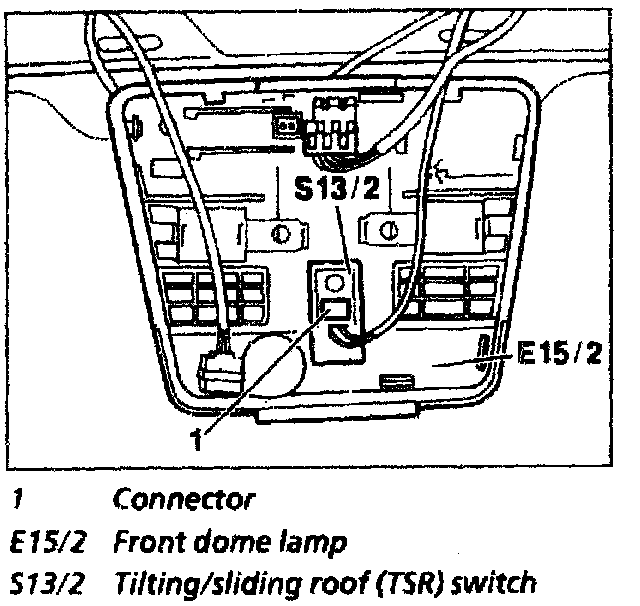

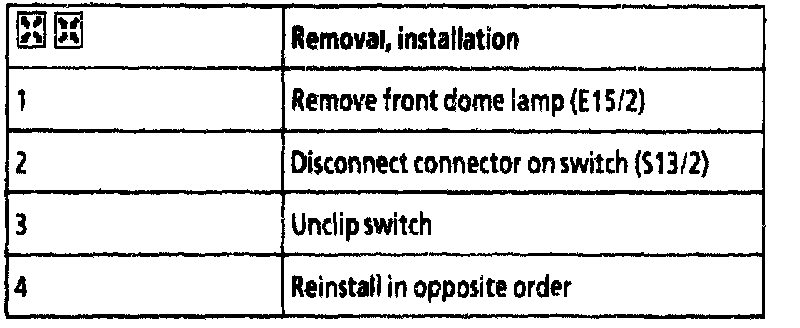

AR77.20-P-0001F Remove/Install Switch for Tilting/Sliding Roof
- with CODE (414a) electrically operated glass tilting/sliding roof
