Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Service and Repair

Control Module HVAC: Service and Repair



Electronic Blower Regulator

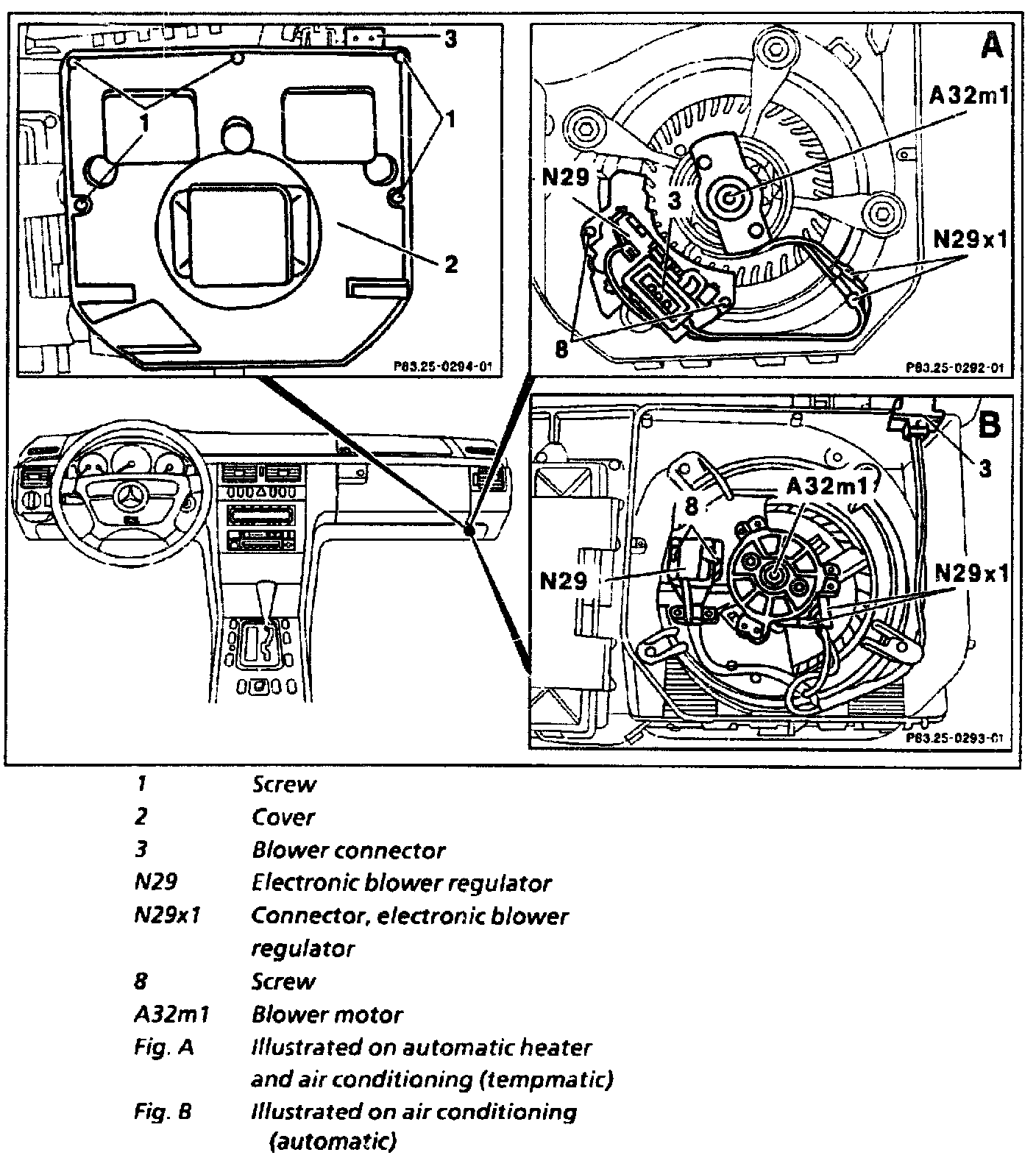

Component Identification

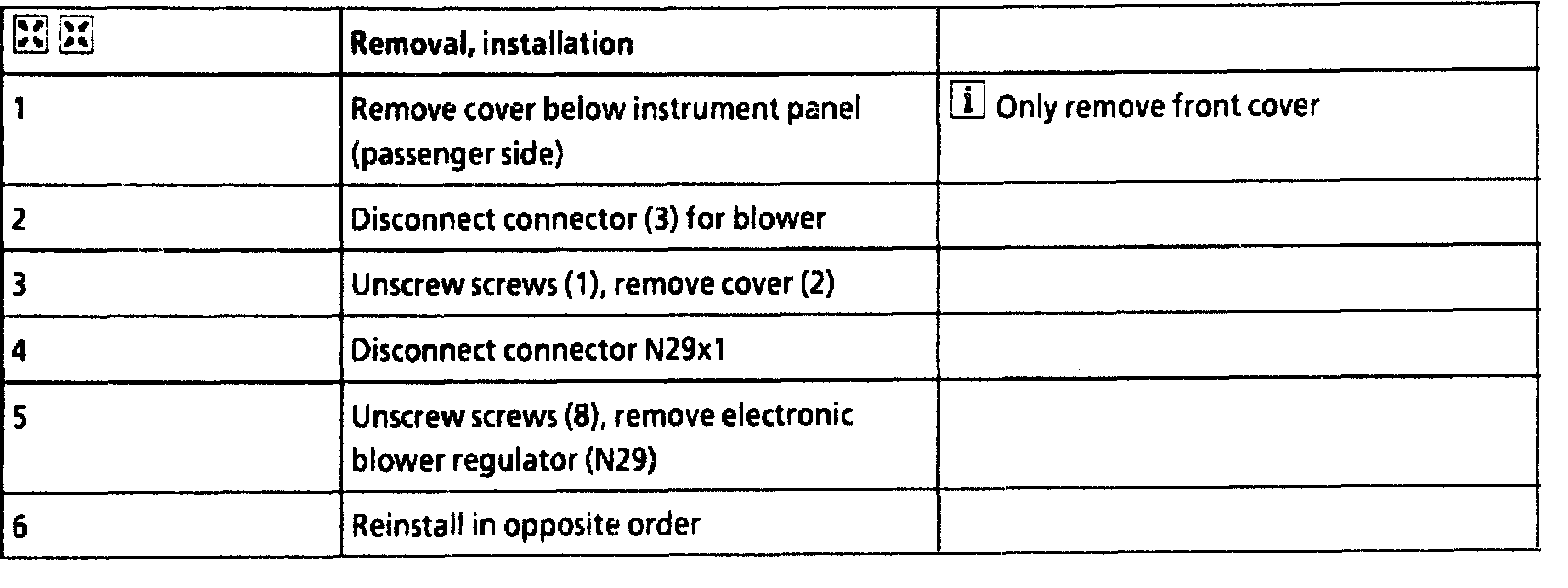

Removal, installation
