Parking Assist Control Module: Service and Repair

Removal, installation
1 Remove rear seat cushion

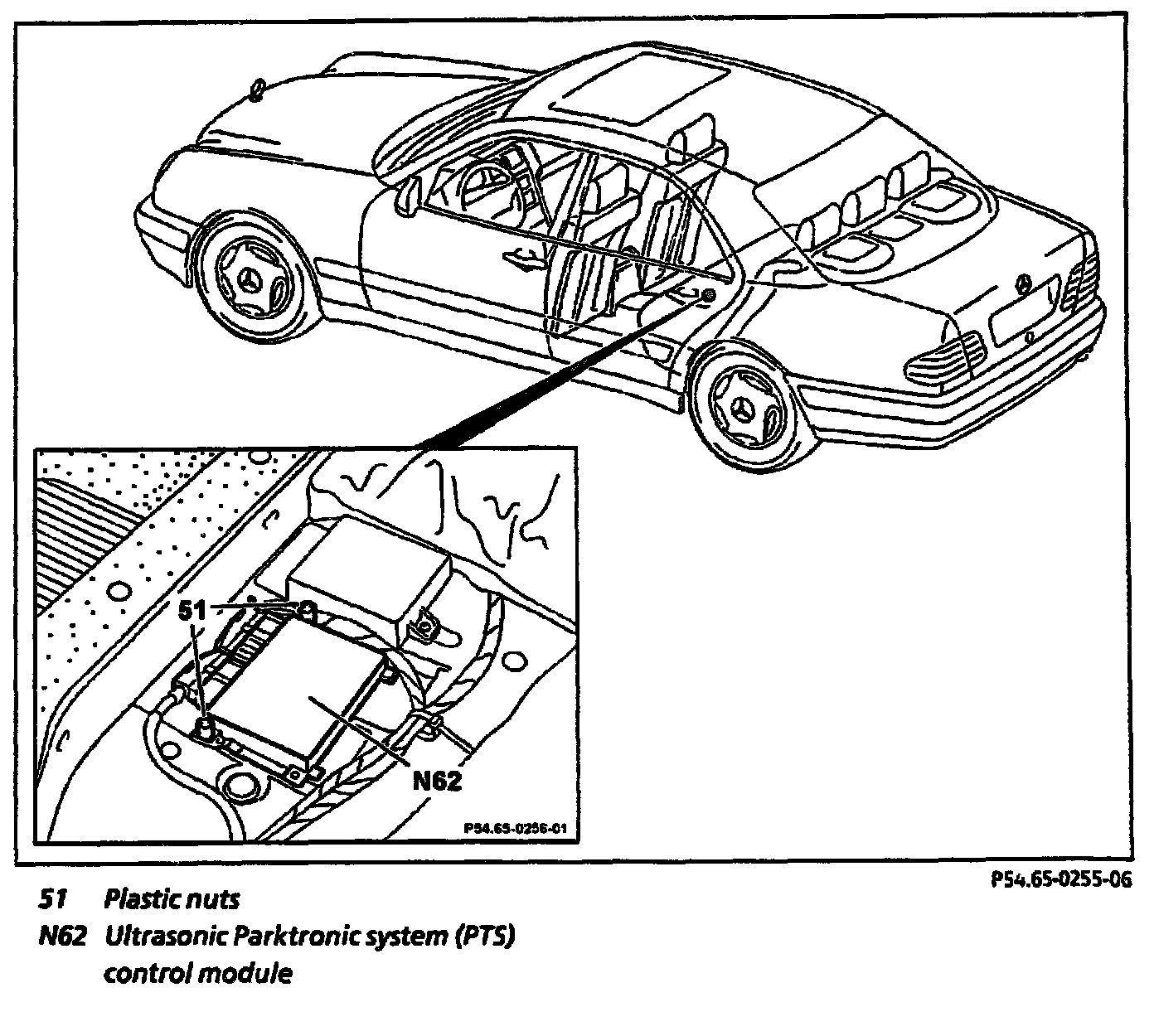

2 Unscrew plastic nuts (51)
3 Disconnect connector from control module
4 Remove Parktronic system (PTS) control module (N62)
5 Reinstall in opposite order
