Rear Axle Speed Signal (VSS) PE00.19-U-2100E
Rear Axle Speed Signal (VSS) PE00.19-U-2100E

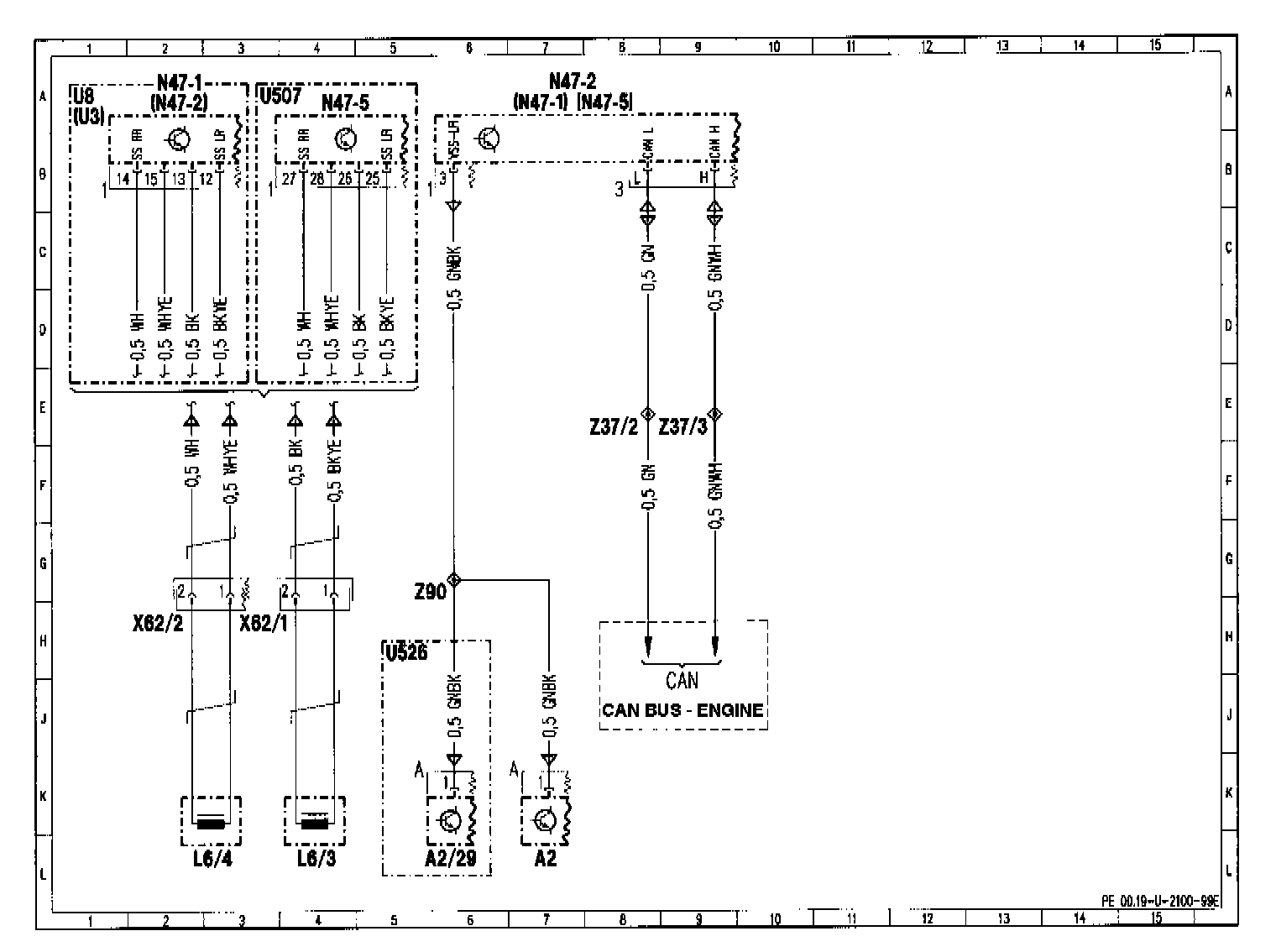

Wiring Diagram:

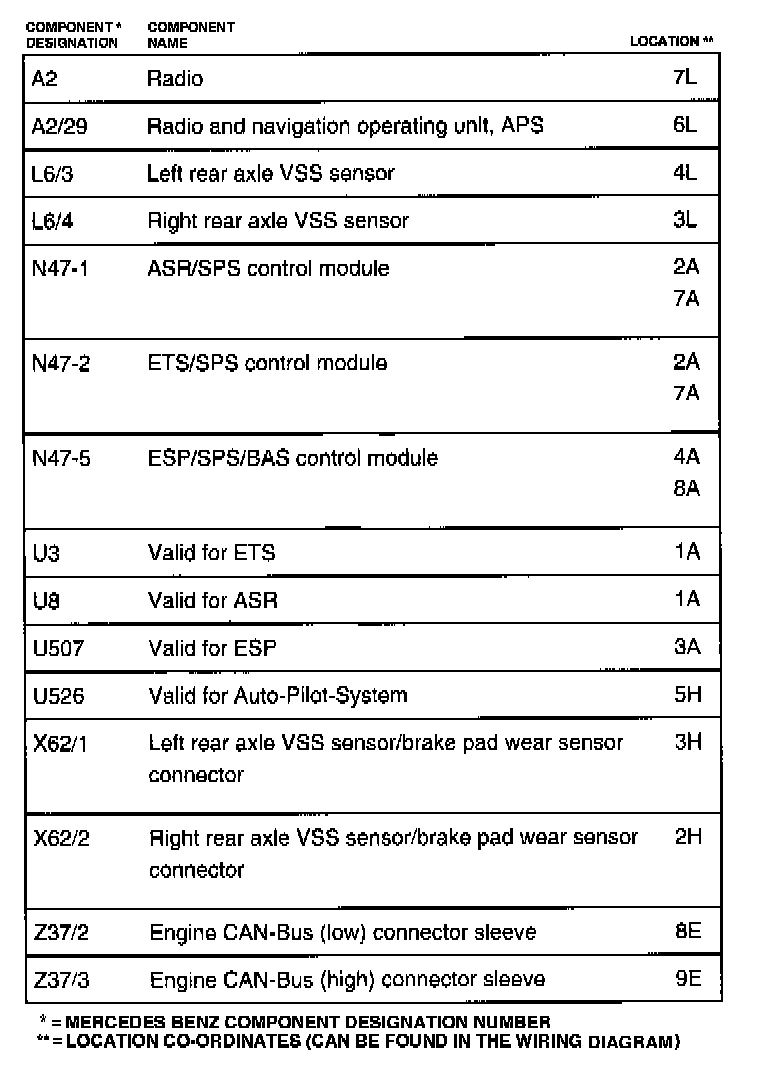

Component Grid Location
A2 - Z37/3:

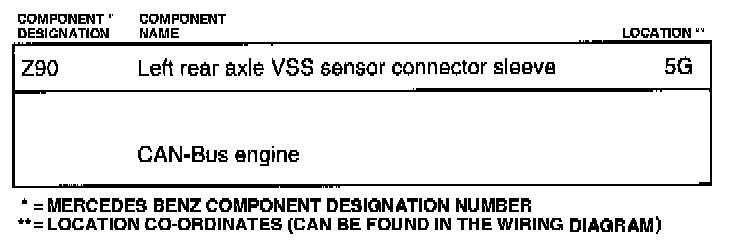

Z90:
