Intake Air Temperature Sensor (B17), Design/Task
Intake Air Temperature Sensor (B17), Design/Task

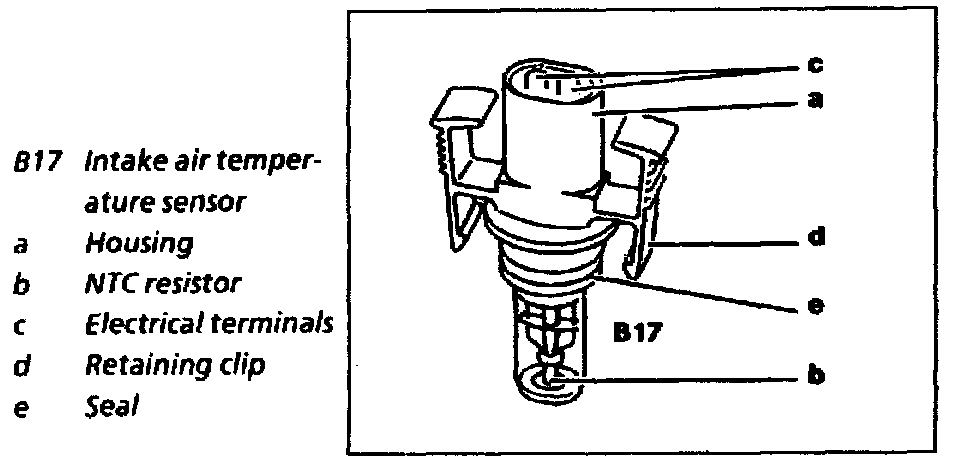

Design
Model 202 up to 11/94

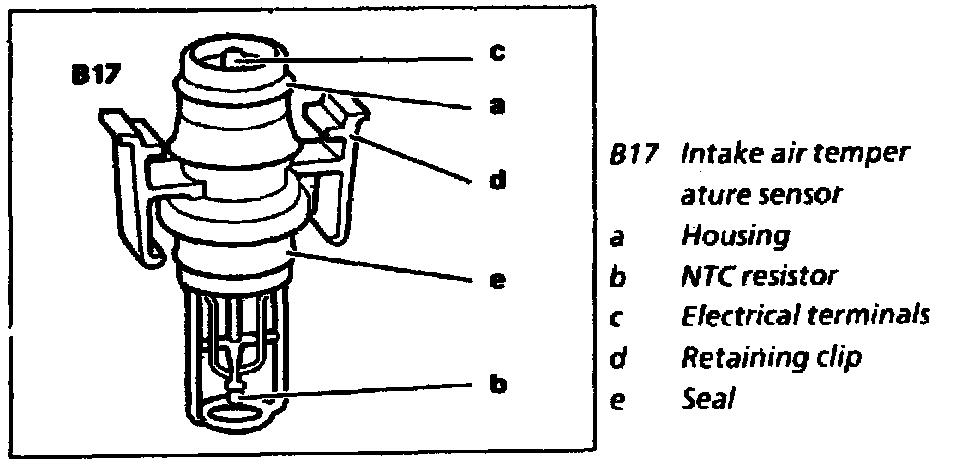

Design
Model 202 as of 12/94,
Model 210, Model 168
Task
Detecting the intake air temperature and supplying a signal to the engine control module.
