Diesel Eng. - Repair Kit For Cyl. Head Glow Plug Thread

Date: January 2010

Order No.: P-B-58.20/134b

Supersedes: P-B-58.20/134a, July 2009

Group: 58

Revision b: Added Engine 606, Repair Kits Added.

Revision a: Deleted Engines 601 and 602; Added Engine 648.

SUBJECT: Engines 603, 606, 611, 612, 613, 628, 646, and 648

Repair Kit for Glow Plug Threads in Cylinder Head

Repair kits for damaged glow plug threads and/or broken off glow plugs in the cylinder head have been developed. These repair kits allow for the drilling-out of the glow plug bore and the installation of threaded inserts. As a result, the replacement of the cylinder head due to broken glow plugs (as an example) is no longer required.

Each repair kit can be ordered as a Special Tools per the numbers below. In addition, the wear and tear components of the kit can be individually ordered as needed, along with additional replacement threaded inserts. These are all depicted below.

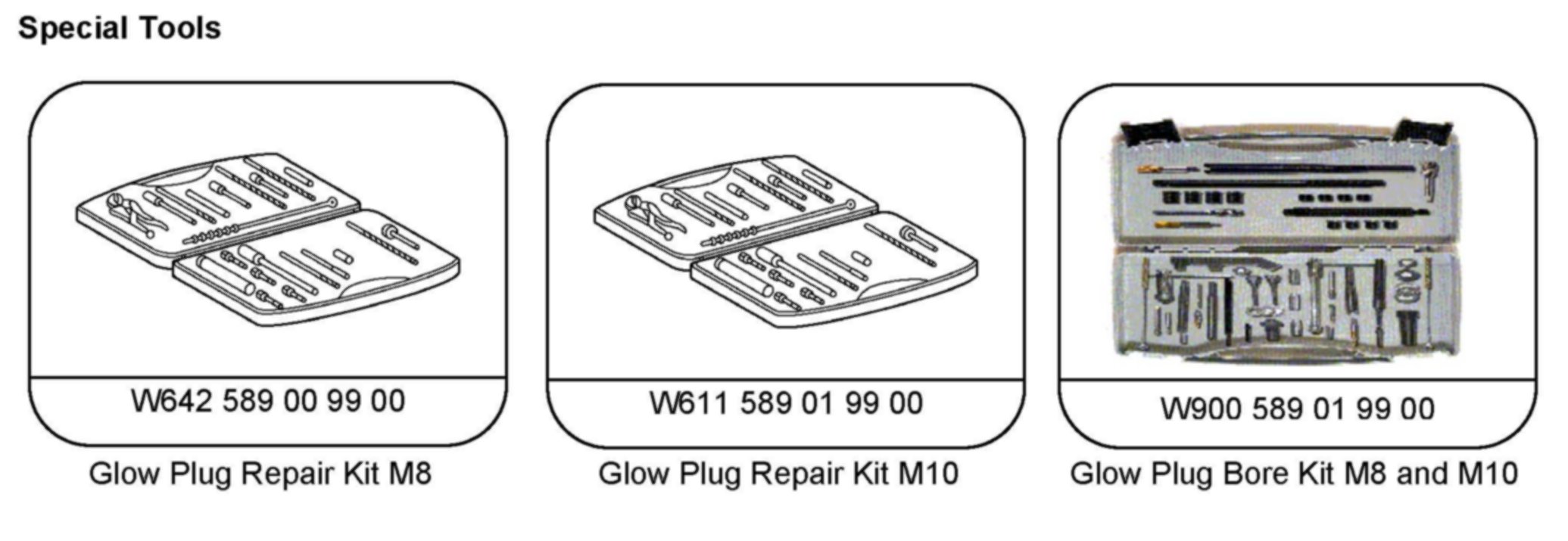

Special Tools

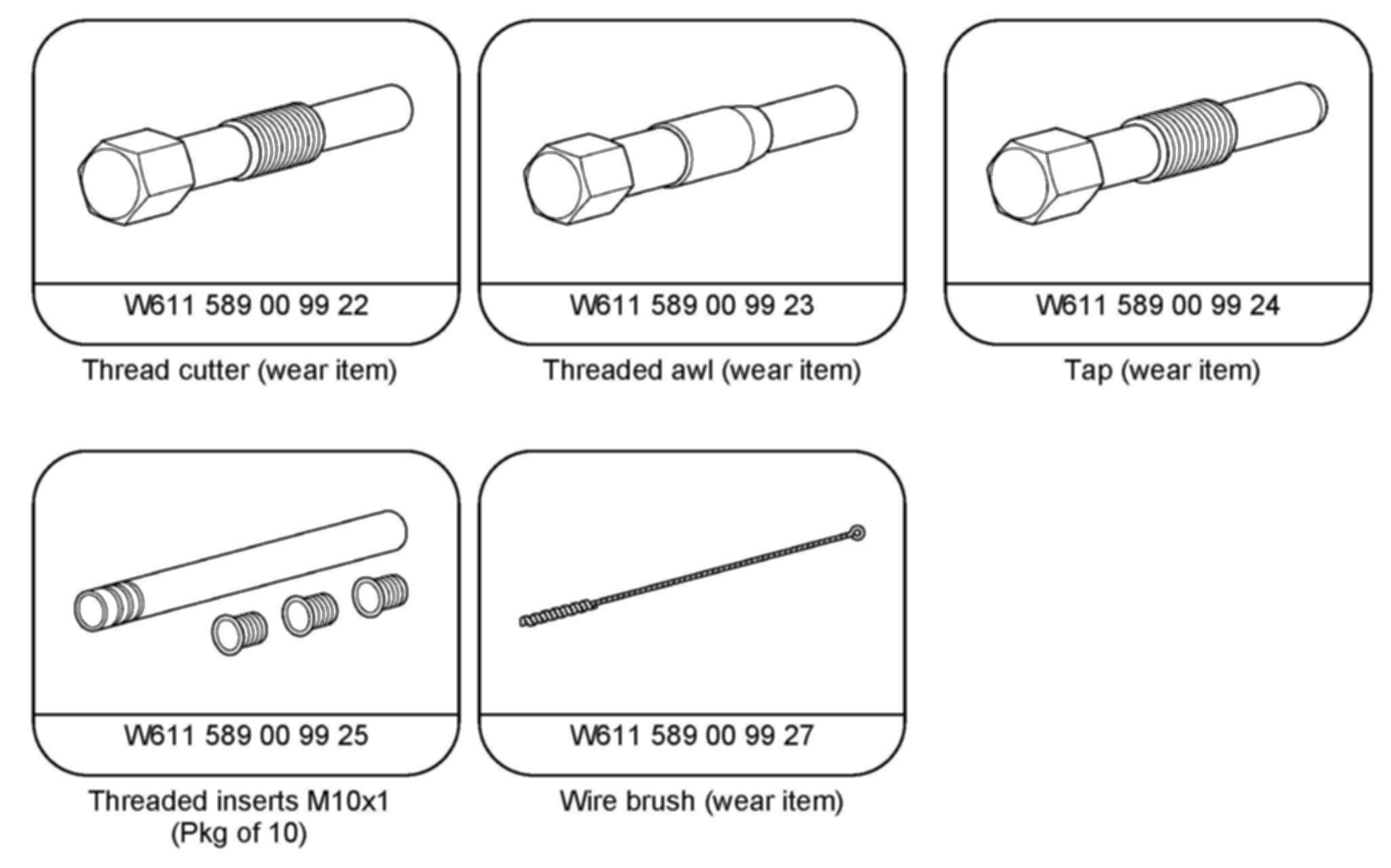

The following replacement (wear and tear) items can be individually ordered:
