Turbocharger: Service and Repair

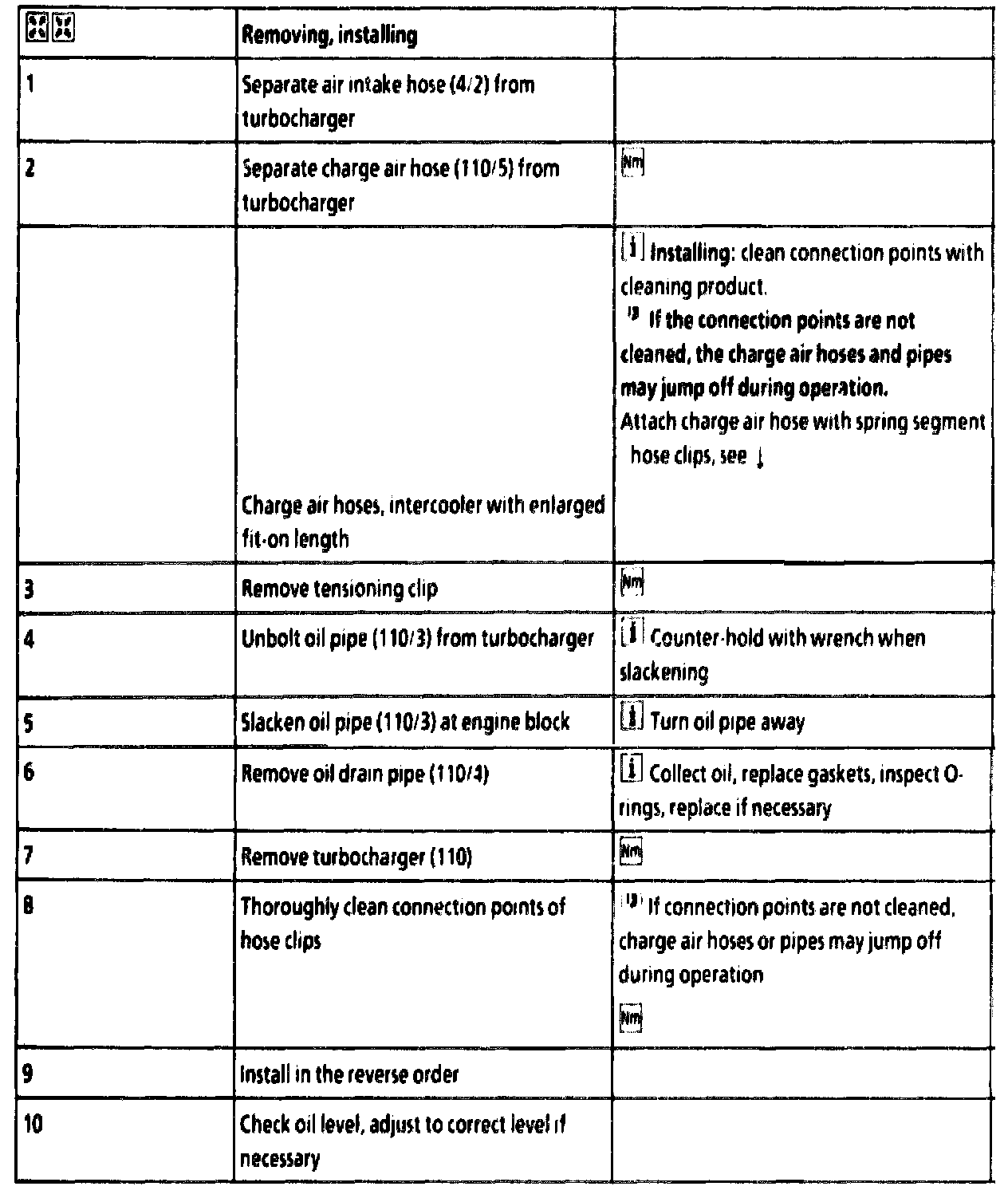

Removing, installing

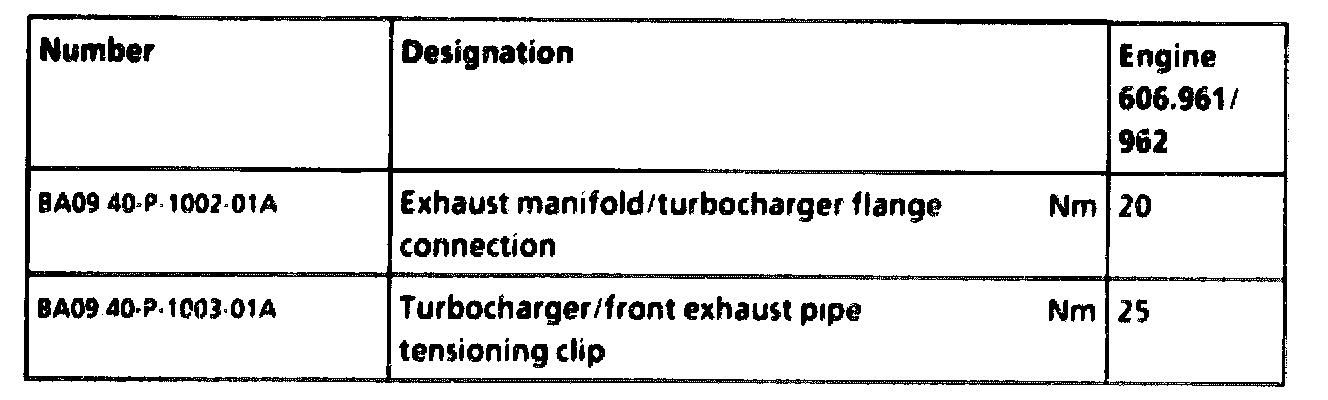

References (BA), Turbocharger






References (BA), Charge air pipe/intercooler

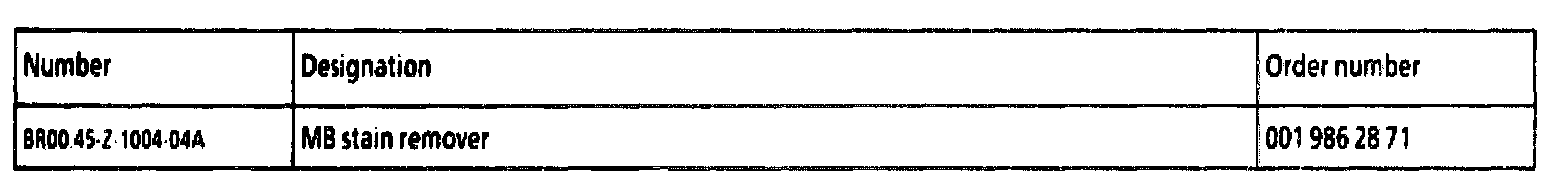

References (BR), Repair products
