IFI Smooth Running Control Task/Design/Function

Design

Task
Reducing irregular running (vibrations) which occur when engine is idling.

Function

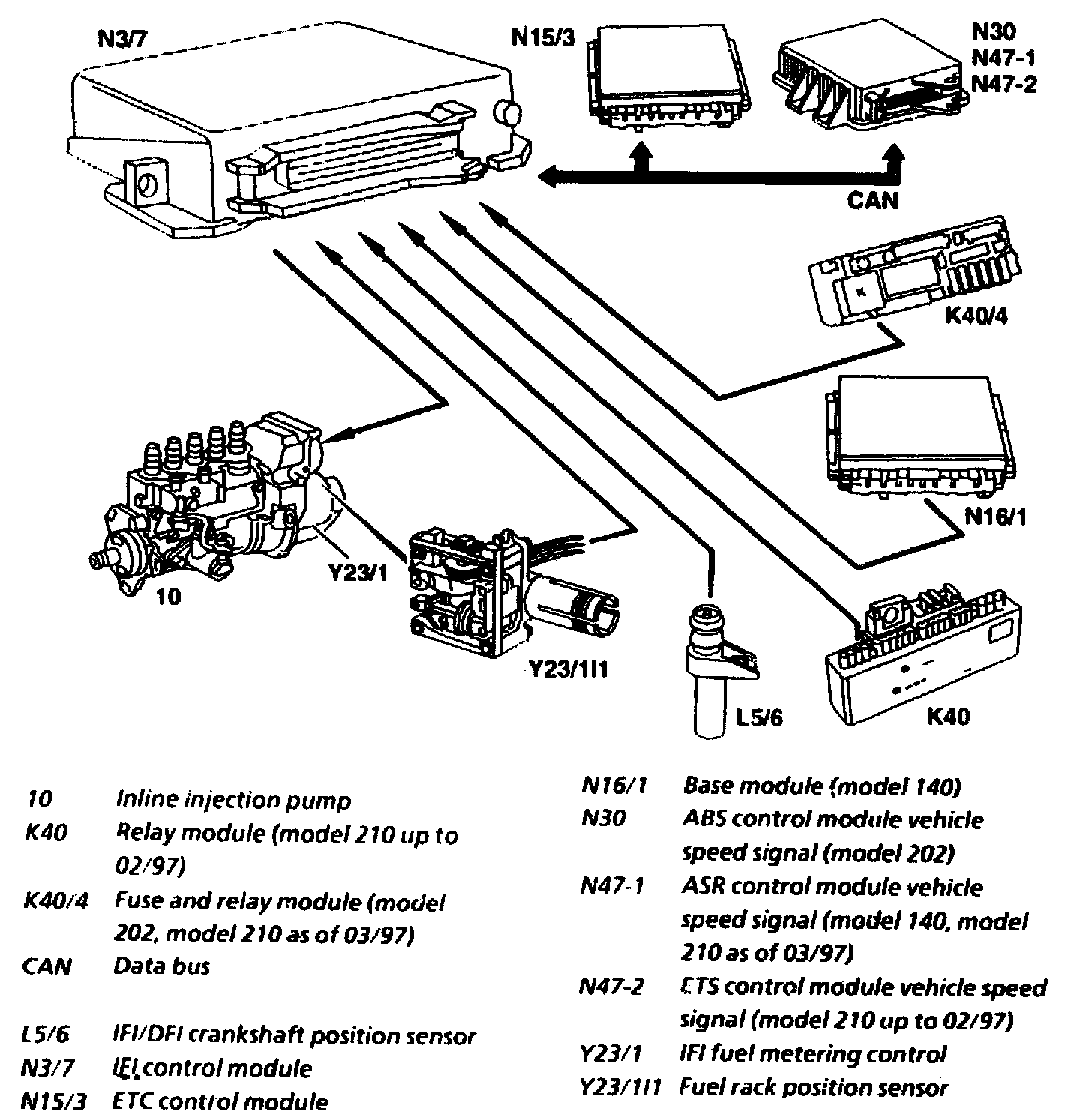

The IFI control module (N3/7) is supplied with an engine speed signal by the IFI/DFI crankshaft position sensor (L5/6) and detects irregularities in engine speed. These engine speed irregularities are rectified by controlling the quantity of fuel injected at specific cylinders. Idling speed therefore remains constant.
