Connect STAR DIAGNOSIS and Read Out Fault Memory
Connect STAR DIAGNOSIS and Read Out Fault Memory
Workshop Equipment/MB Testers
Diagnostic System STAR DIAGNOSIS, Compact Passenger Vehicle
Order Number 6511180100

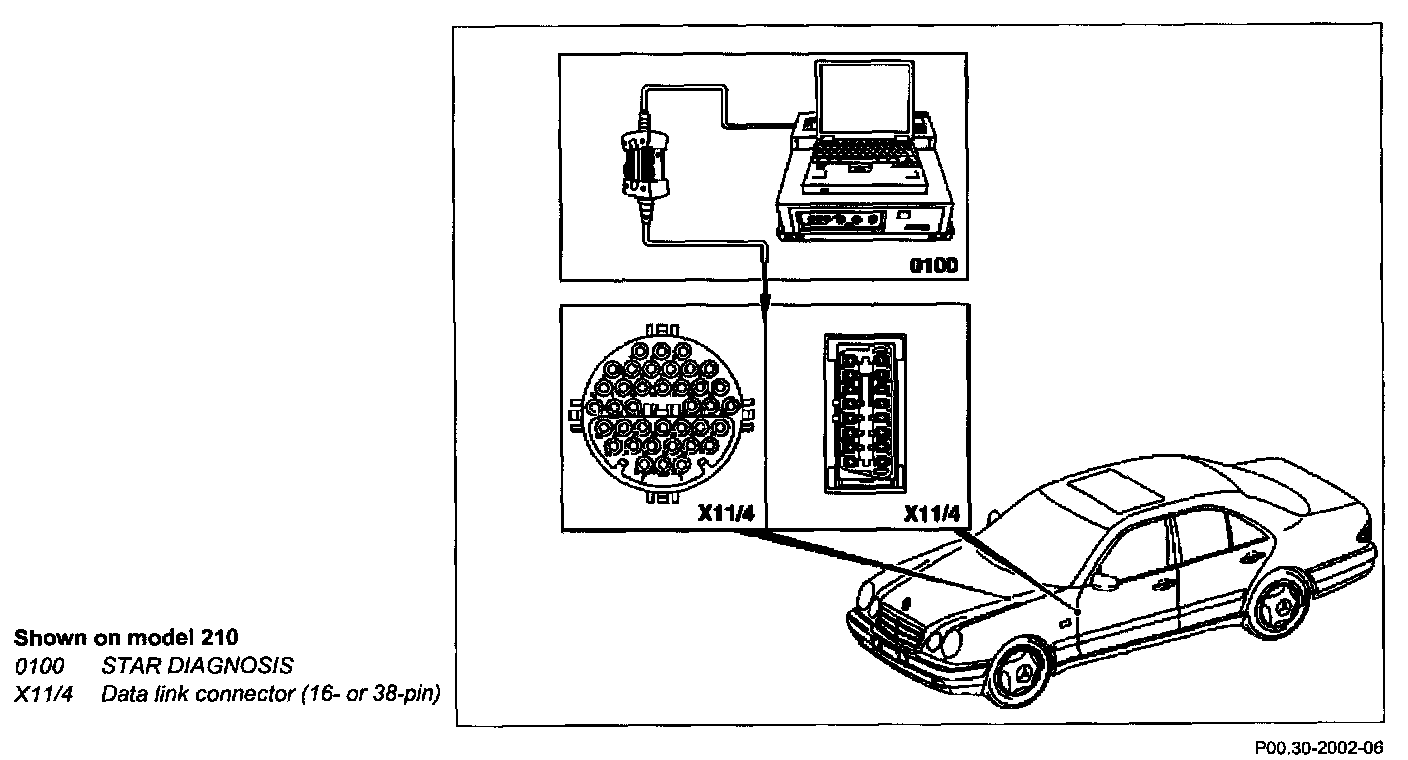

Shown On Model 210:
1 Connect STAR DIAGNOSIS (0100) to data link connector (X11/4).
2 Switch on ignition.
3 Start DAS.
4 in menu "Model designation", select "further model series".
5 Follow instructions on screen:
a) Control module version
b) Read out/delete diagnostic trouble code memory
c) Read out actual values
d) Perform actuations
e) Control module adaptations
6 Disconnect STAR DIAGNOSIS (0100).

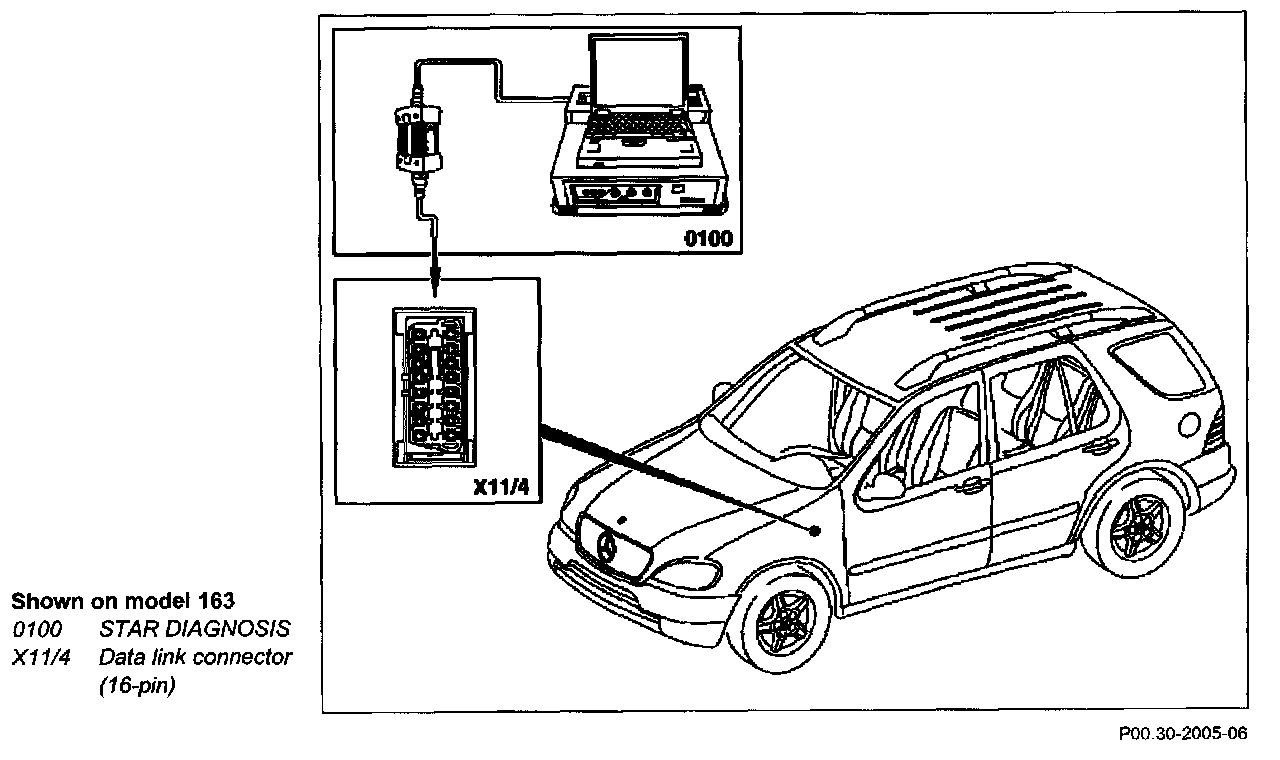

Shown On Model 163:
1 Connect STAR DIAGNOSIS (0100) to data link connector (X11/4).
2 Switch on ignition.
3 Start DAS.
4 in menu "Model designation", select "further model series".
5 Follow instructions on screen:
a) Control module version
b) Read out/delete diagnostic trouble code memory
c) Read out actual values
d) Perform actuations
e) Control module adaptations
6 Disconnect STAR DIAGNOSIS (0100).

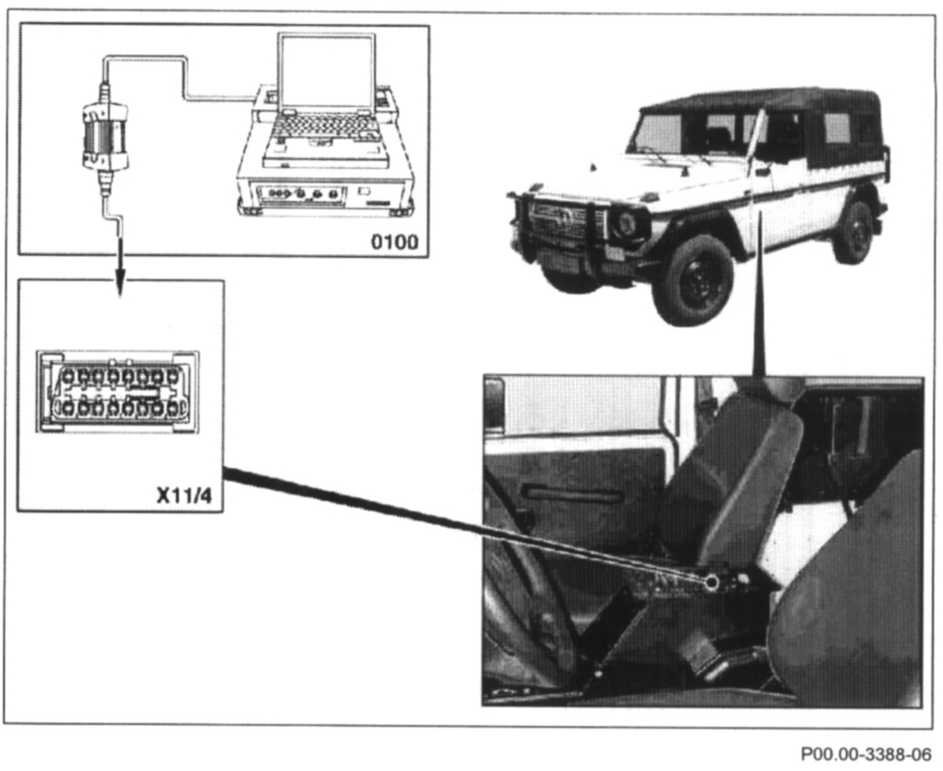

Shown On Model 461.302:
1 Connect STAR DIAGNOSIS (0100) to data link connector (X11/4).
2 Switch on ignition.
3 Start DAS.
4 in menu "Model designation", select "further model series".
5 According to instructions on screen:
a) Control module version
b) Read out/delete diagnostic trouble code memory
c) Read out actual values
d) Perform actuations
e) Control module adaptations
6 Disconnect STAR DIAGNOSIS (0100).
NOTE: Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
