Start of Delivery Test

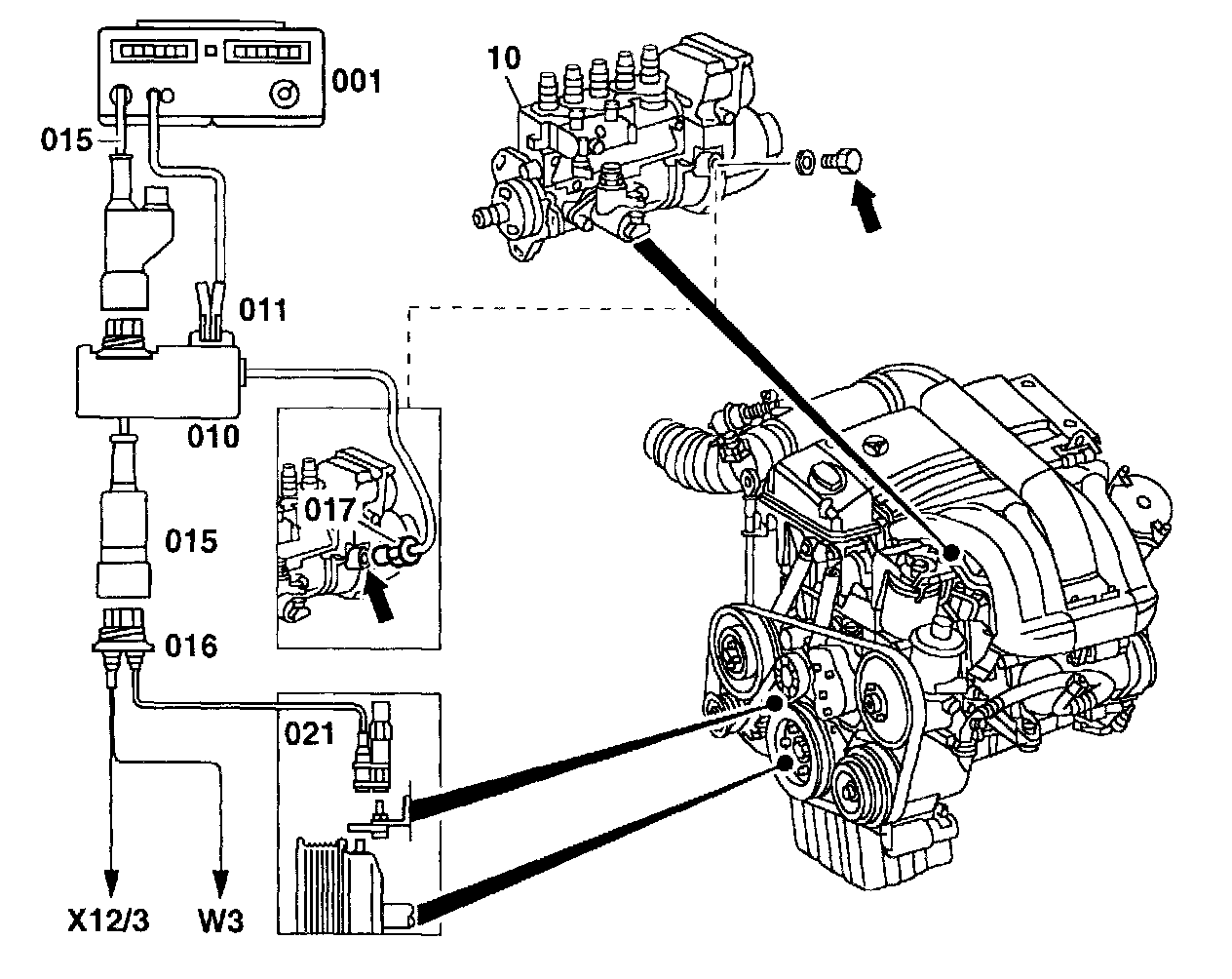

Connection Diagram-Test Equipment With Adaptor Engine 606 IFI

Connection Diagram-Test Equipment With Adaptor Engine 606 IFI:

Key To Diagram
001 Digital tester
010 Adapter
011 Alligator c1amp
015 Test cable with plug
016 Diagnostic socket
017 GIM sensor
021 TDC impulse Sensor
10 In-line fuel injection pump

W3 Ground (left front wheelhousing)
X12/3 Terminal block (terminal 30)

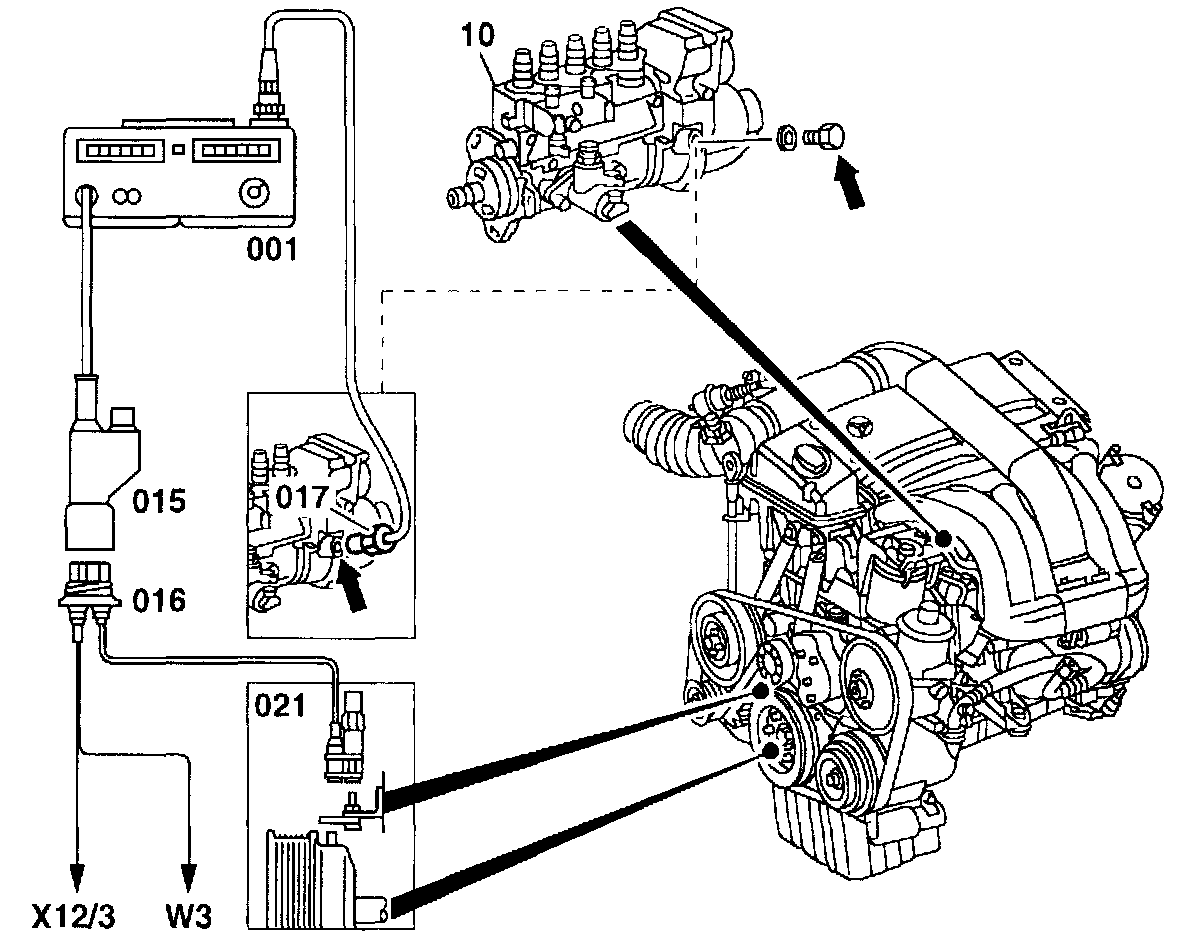

Connection Diagram-Test Equipment Without Adaptor Engine 606 IFI

Connection Diagram-Test Equipment Without Adaptor Engine 606 IFI:

Key To Diagram
001 Digital tester
015 Test cable with plug
016 Diagnostic socket
017 GIM sensor
021 TDC impulse sensor
10 in line fuel injection pump

W3 Ground (left front wheelhousing)
X12/3 Terminal block (terminal 30)

Test Steps
1. Plug (arrow) on fuel Injection pump (10)
Remove, tightening torque 30 - 35 Nm

2. Test equipment
Connect/disconnect according to connection diagram.

3. Engine running at CTP
Read GI value 14 + 0.5° ATDC on digital tester
GI nominal value 14 + 0.5° ATDC (adjust start of delivery if necessary).
