Start of Delivery Adjustment

Start Of Delivery Adjustment

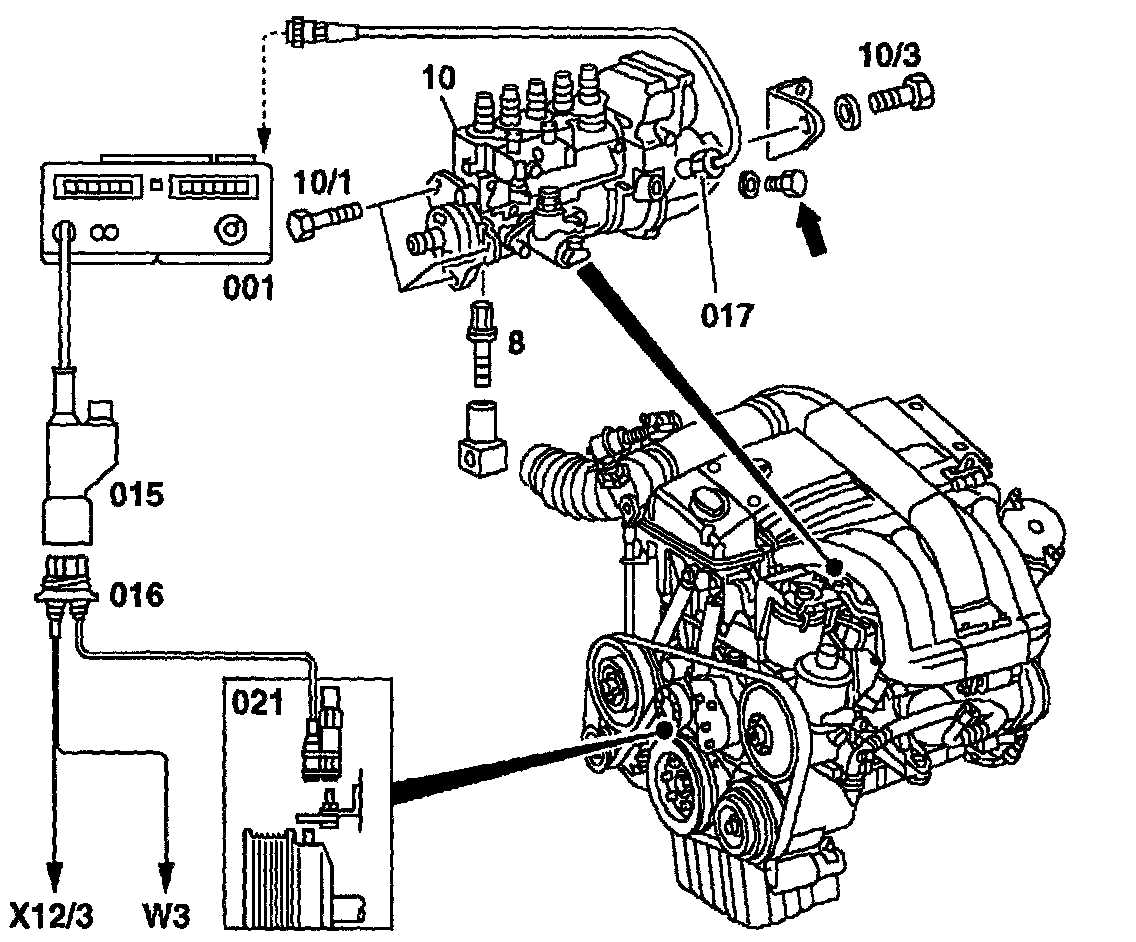

Connection Diagram:

Key To Diagram
001 Digital tester
015 Test cable with plug
016 Diagnostic socket
017 GIM sensor
021 TDC impulse sensor
B Adjusting devise
10 In-line fuel injection pump
10/1 Injection pump f1ange screw
10/3 Support bracket screw

W3 Ground (left front wheelhousing)
X12/3 Terminal block (circuit 80)

Test Steps
1. Mounting screws (10/1) on injection pump flange
Loosen, tighten, tightening torque 20 - 25 Nm.

2. Support bracket screw (10/3)
Loosen, tighten, tightening torque 20 - 25 Nm.

3. GIM value (engine running at CTP)
Adjust by turning screw on adjusting device (8).
Direction of rotation of adjusting screw (8)
Clockwise = start-of-delivery retarded
Counterclockwise = start-of-delivery advanced
GIM nominal value, refer to Test and Adjustment Data. 13436364>

4. Test equipment
Disconnect.

5. Plug (arrow) on fuel injection pump (10)
Install, tightening torque 30 - 35 Nm.

6. Leak test with engine running
Perform.

7. Engine oil level
Check.
