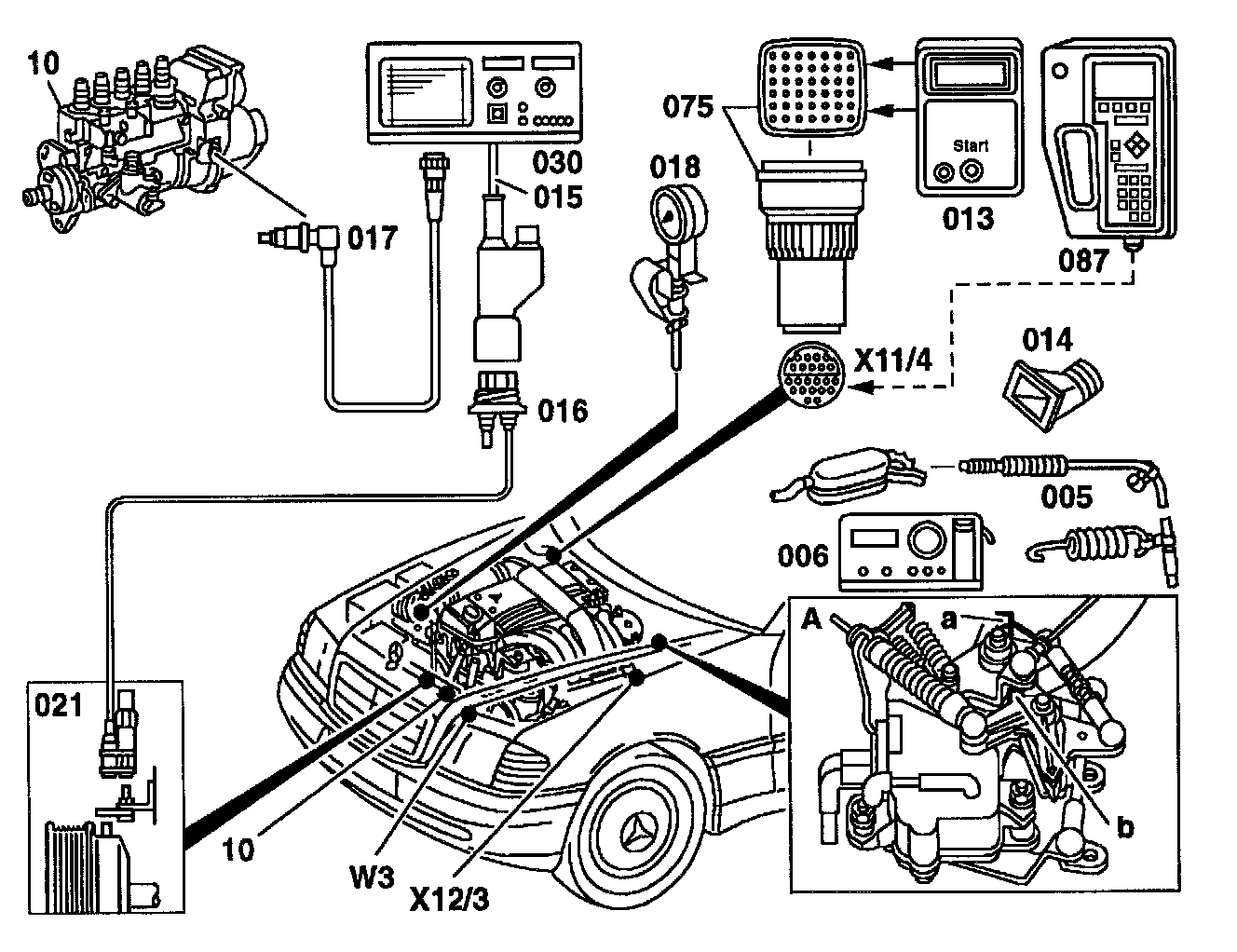

Test Equipment Without Adaptor

Figure 2
005 Exhaust gas probe
006 Opacity tester
014 Exhaust gas funnel
015 Test cable with plug
016 Diagnostic socket
017 GIM sensor
016 Oil thermometer
021 TDC impulse sensor
030 Engine analyzer with oscilloscope
087 Hand-Held Tester (HHT)
10 In-line fuel injection pump

W3 Ground (left front wheelhousing)
X11/4 Data link connector (DTC readout) on Model 210 in left front fuse box
X12/3 Terminal block (circuit 30)

A Throttle control unit

a Closed throttle position stop
b Wide open throttle stop
