Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> ETP - Electrical Test Program >> Preparation For Test - Section 22 >> Figure 4 - Engine Control Module Conn. Layout - Pins 31 - 55

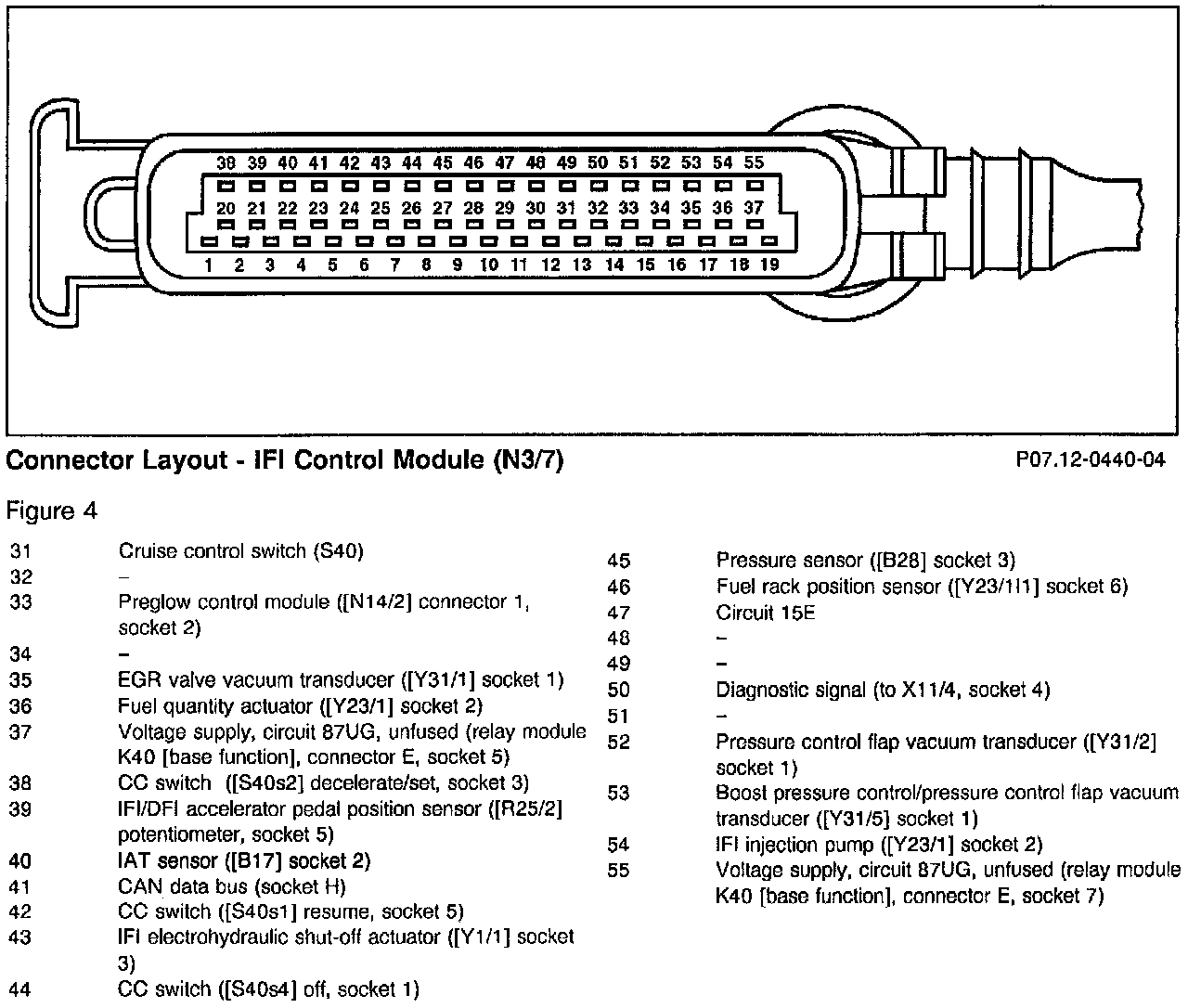

Figure 4 - Engine Control Module Conn. Layout - Pins 31 - 55




Figure 4:
