Engine Compartment Components

Engine 608.962

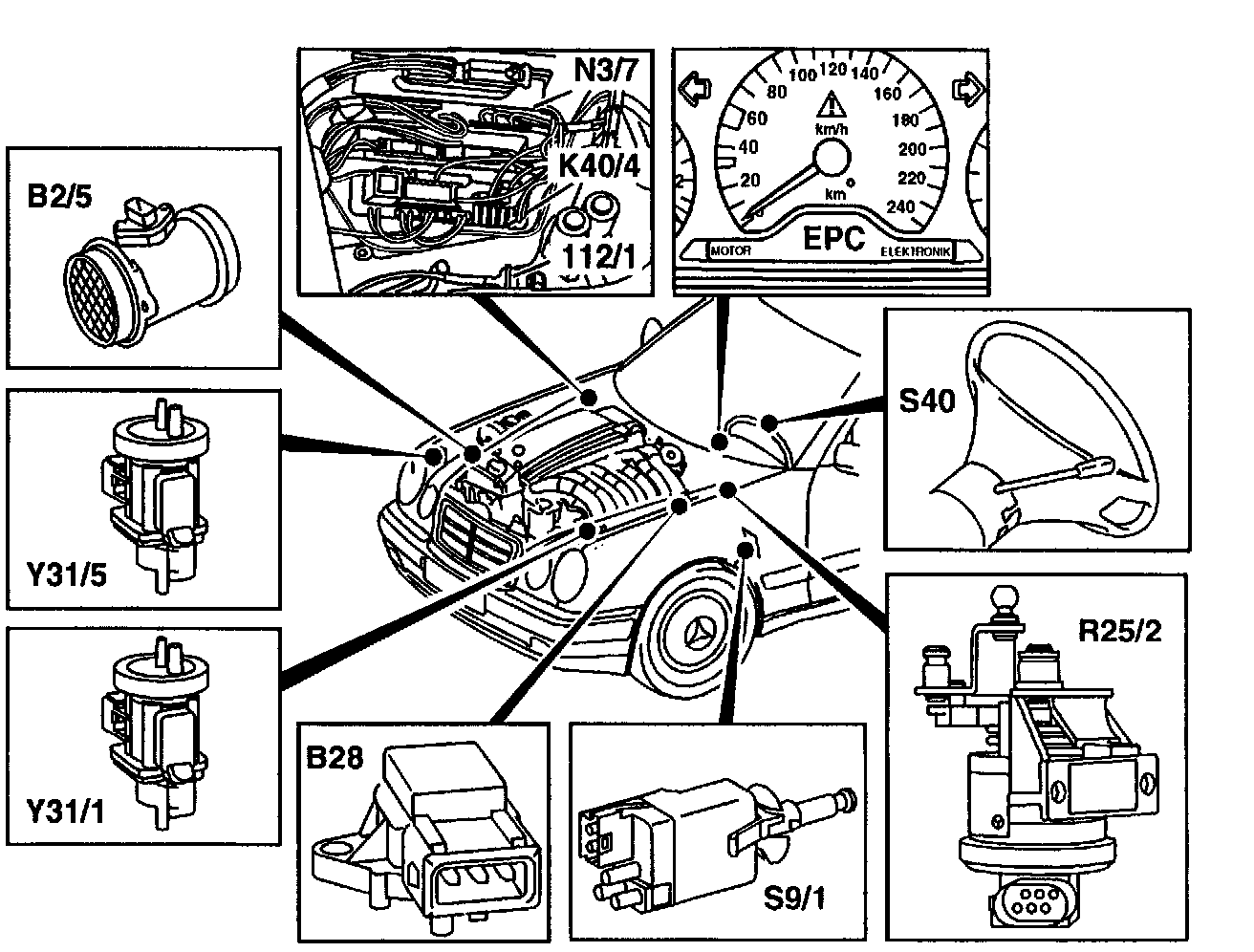

Electrical Components In Engine Compartment





Figure 1
112/1 Venti1ation filter for EGA valve vacuum transducer (Y31/1)
A1e43 Does not apply to U.S. vehicles
B2/5 Hot film MAF sensor
B28 Pressure sensor
K40/4 Passenger side fuse and relay module box
N3/7 IFI control module
N14/2 Preglow control module
P25/2 IFI accelerator pedal position sensor
S40 CC switch
Y31/1 EGR valve vacuum transducer
Y31/5 Boost pressure control/pressure control flap vacuum transducer

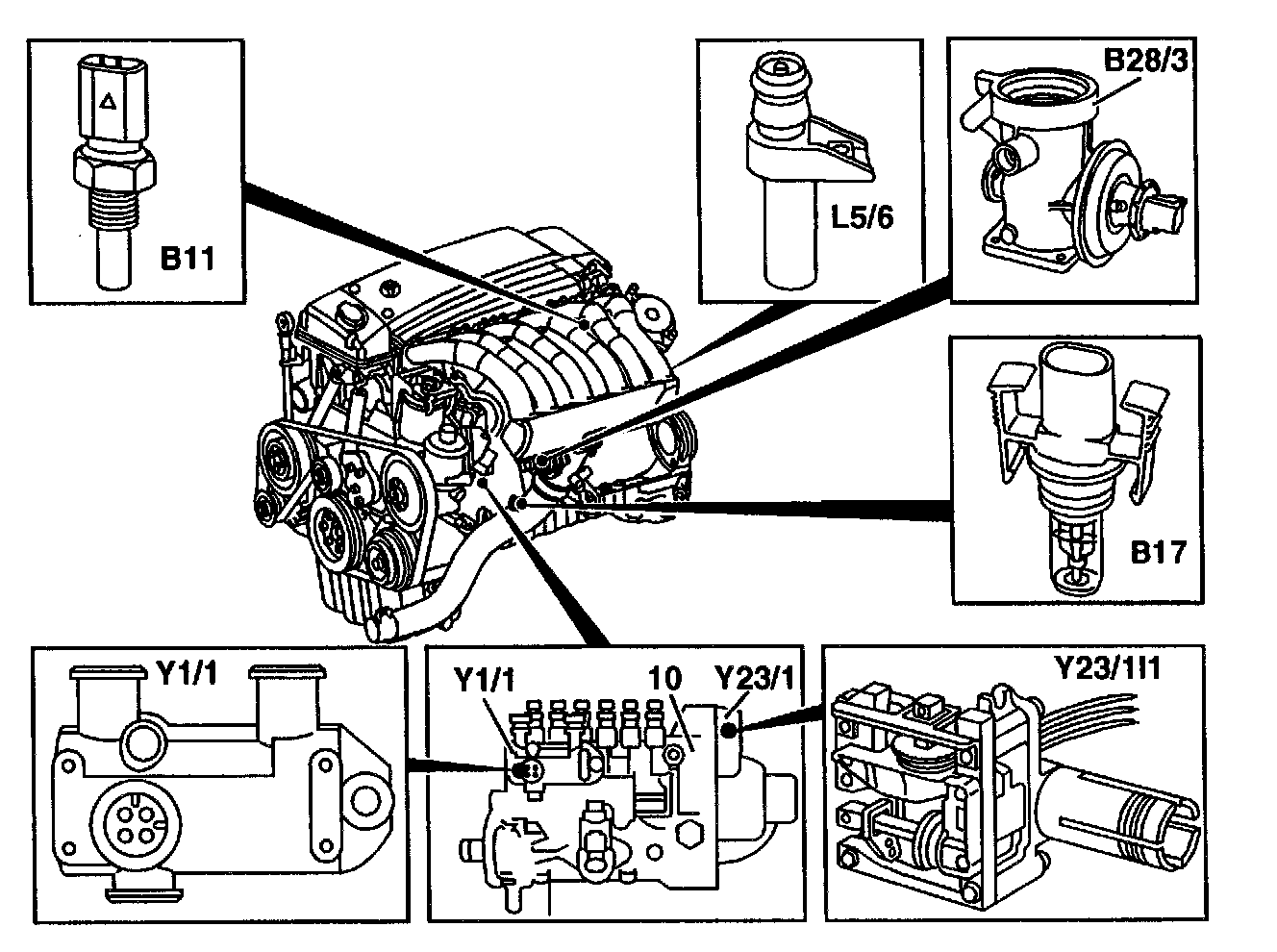

Electrical Components on Engine





Figure 2
B11 ECT senor
B17 IAT sensor
B28/3 EGR lifting sender
L5/6 CKP sensor (IFI/DFI)
Y1/1 IFI electrohydraulic shut-off actuator
Y23/1 IFI fuel injection pump
Y23/1I1 Fuel rack position sensor
