Vacuum and Vapor Hose Diagrams

Engine 606.962, Model 210

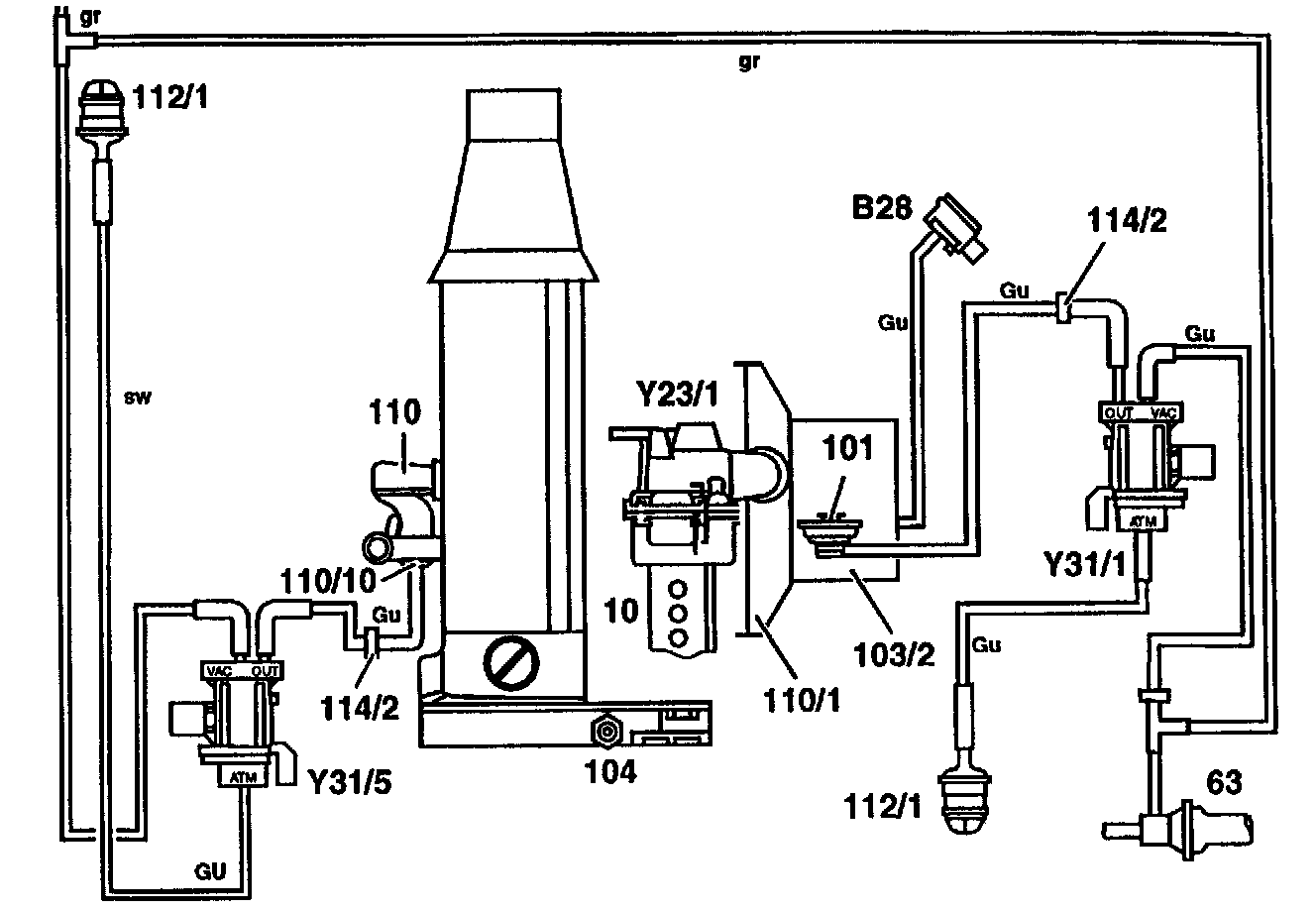

Figure 1
10 In-line fuel injection pump
63 Check valve with orifice 0.8 mm
104 Vacuum pump
110 Turbocharger
110/1 Intake manifold
110/10 Boost pressure control valve
112/1 Venti1ation filter for EGR valve vacuum transducer (Y31/1)
114/2 Connector 6mm/6mm

B28 Pressure sensor
Y23/1 Fuel quantity actuator (IFI)
Y31/1 EGR valve vacuum transducer
Y31/5 Boost pressure control/pressure control flap vacuum transducer

ATM Vent to component compartment
OUT Outlet from vacuum transducer
VAC Vacuum supply from vacuum pump

gr grey
sw black
GU rubber hose

c Remaining consumers
