Component Locations - Section 21

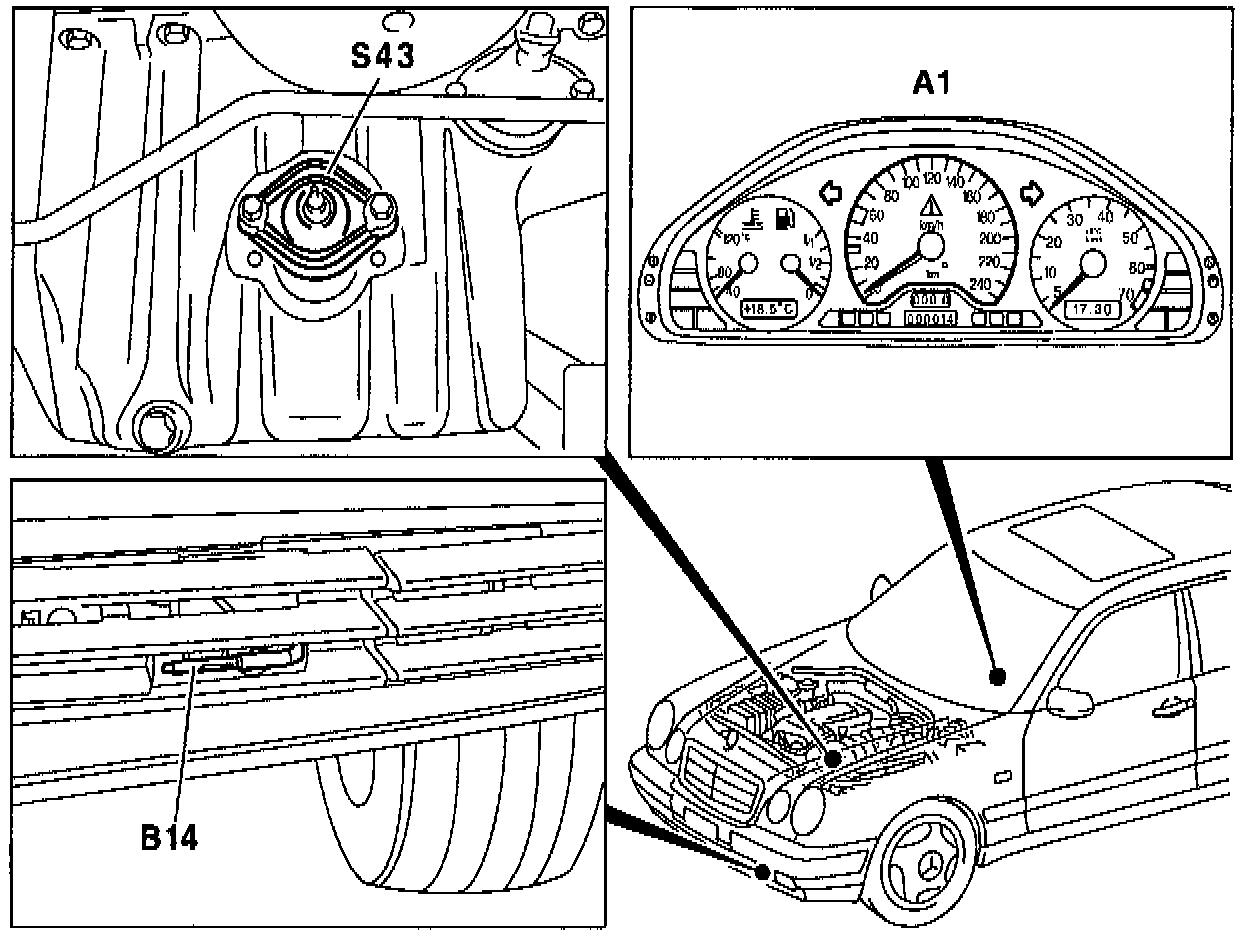

A1 Instrument cluster
B14 Outside temperature indicator temperature sensor
S43 Oil level switch

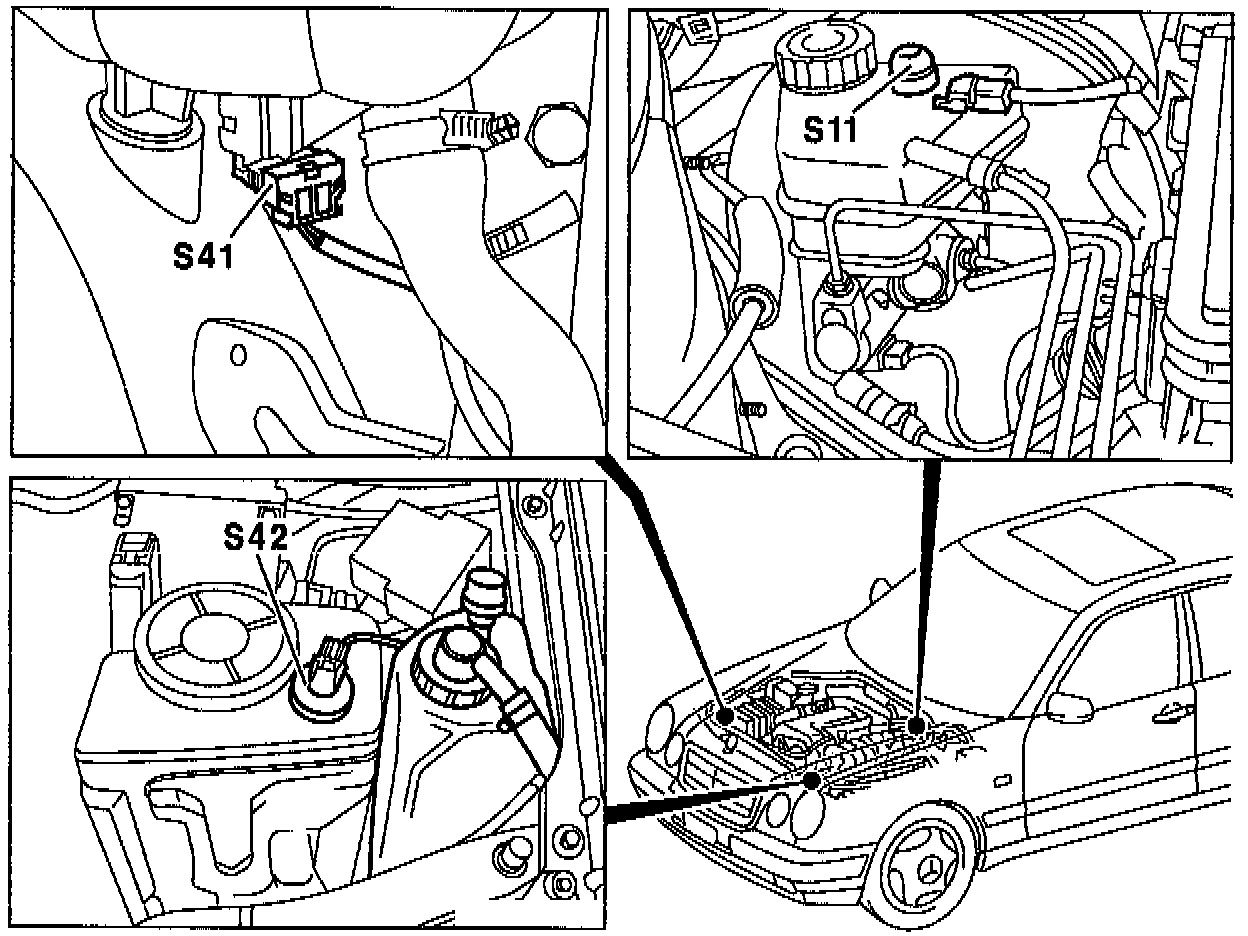

S11 Brake fluid level switch
S41 ECL switch
S42 Windshield washer fluid level switch

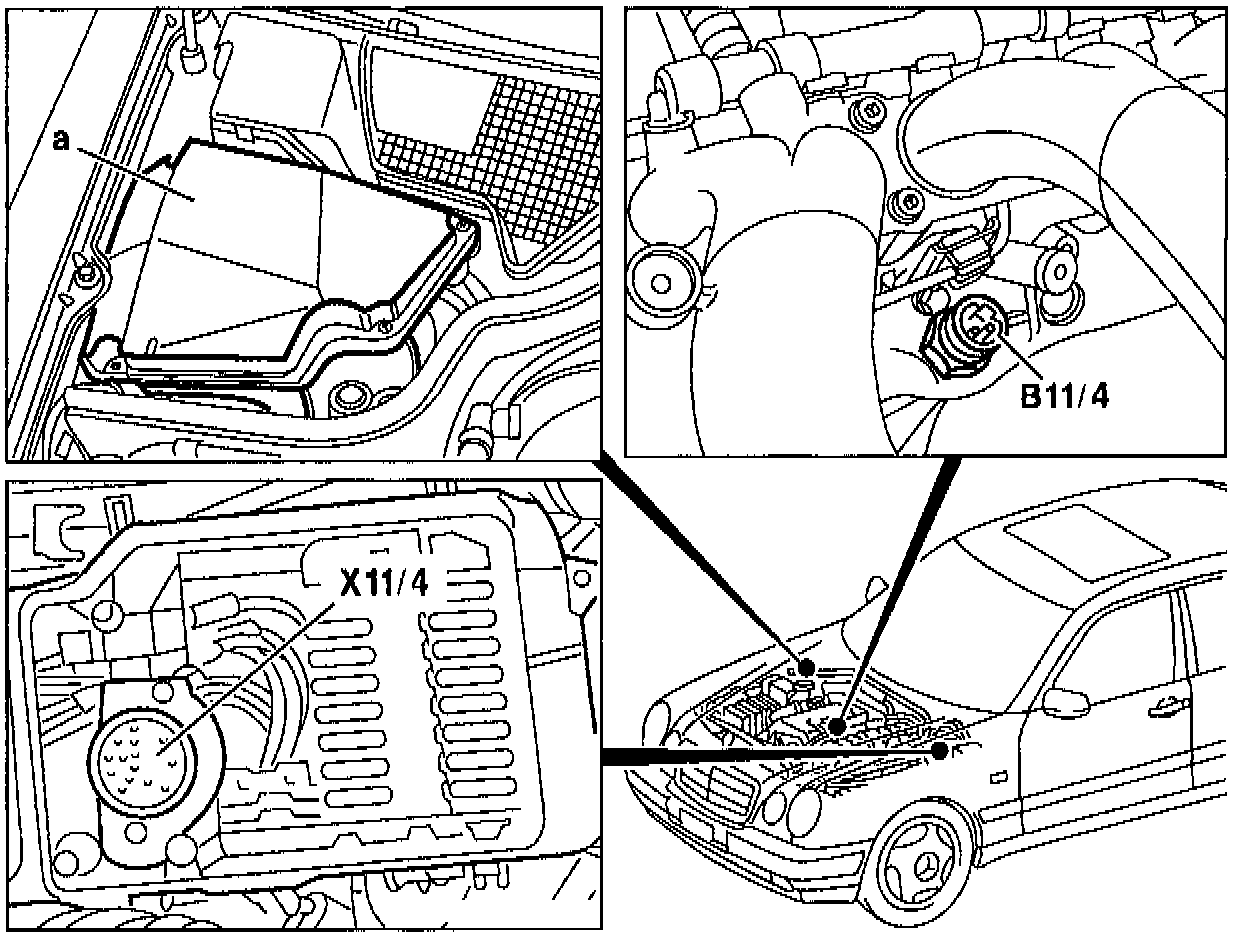

B11/4 ECT sensor (IFI)
X11/4 Data link connector (DTC readout)
a Control module box (plastic)

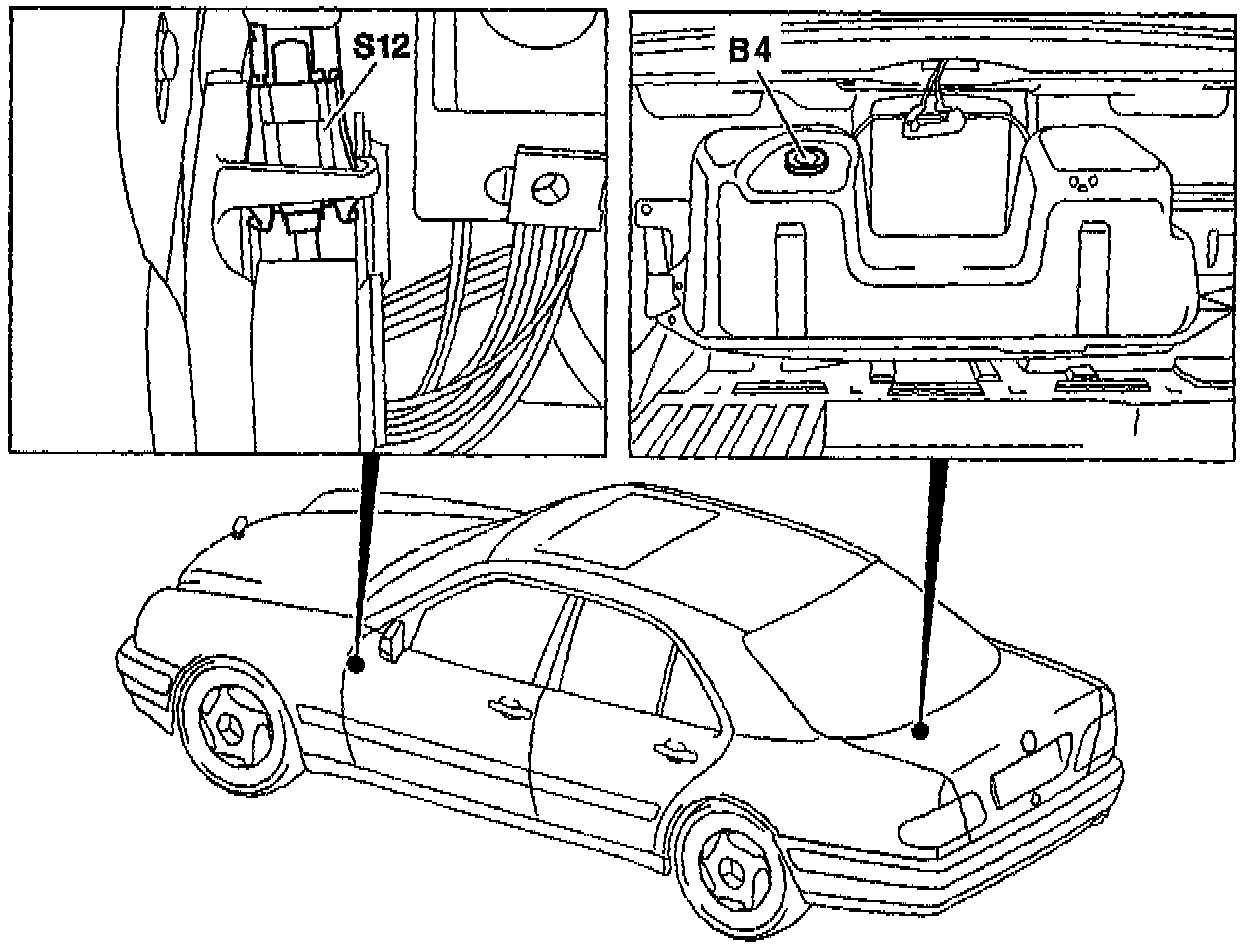

B4 Fuel level sensor
S12 Parking brake switch
