AR09.41-P-1310HA Remove/Install Charge Air Distribution Pipe

AR09.41-P-1310HA Remove/install Charge Air Distribution Pipe
- ENGINE 606.961 in MODEL 140.135
- ENGINE 606.962 in MODEL 210.025 /225
- ENGINE 606.964 in MODEL 463

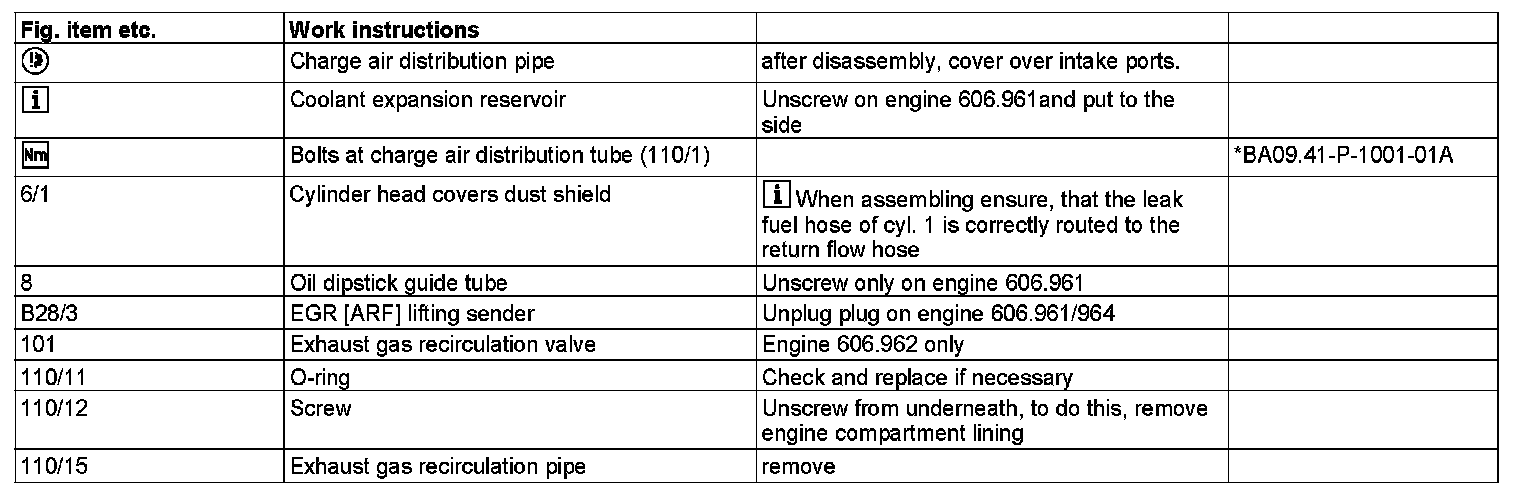

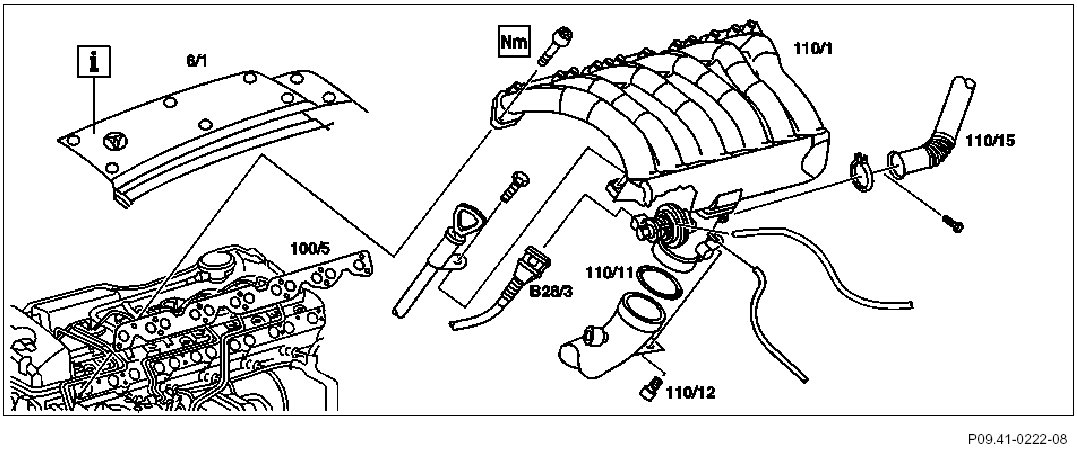

6/1 Cylinder head covers dust shield
8 Oil dipstick guide tube (only engine 606.961)
100/5 Intake manifold gasket
101 Exhaust gas recirculation valve (only engine 606.962)
110/1 Charge air distribution pipe
110/11 O-ring
110/12 Bolt
110/15 Exhaust gas recirculation line

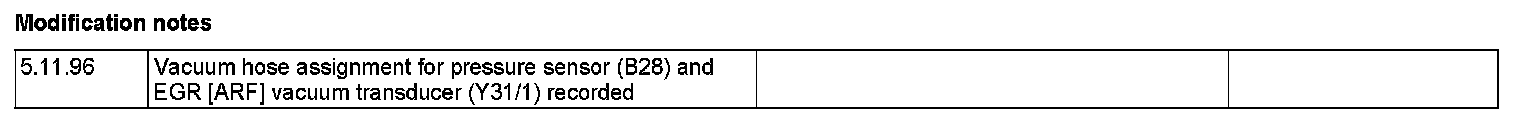

B28 Pressure sensor
B28/3 EGR lifting sender (engine 606.961/964 only)
Y31/1 EGR vacuum transducer
