Airbag W/Side Airbag and ETR - PE91.60-2000B
Airbag W/Side Airbag and ETR - PE91.60-2000B

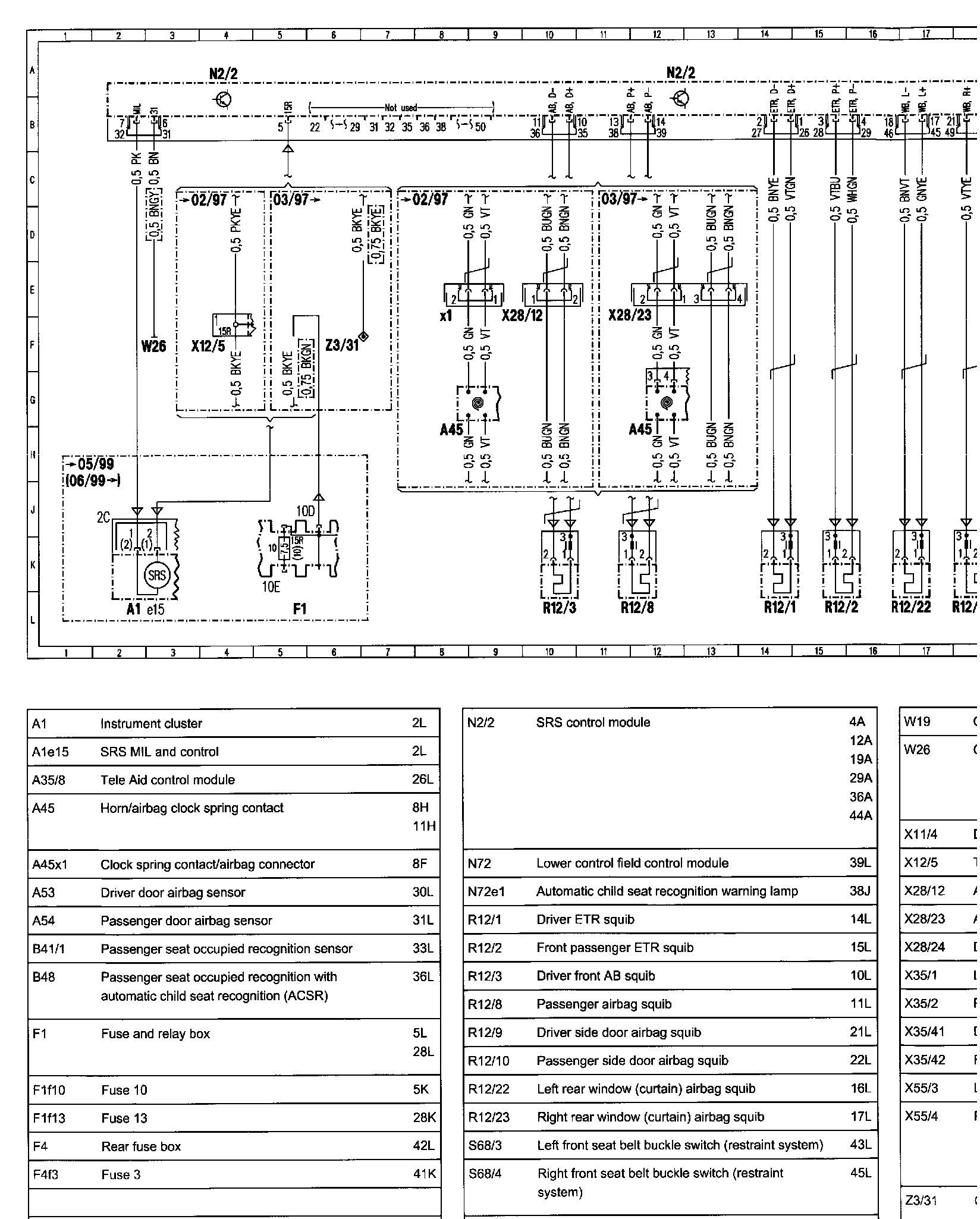

Yy�63}�6���6g��6���6Wiring Diagram:

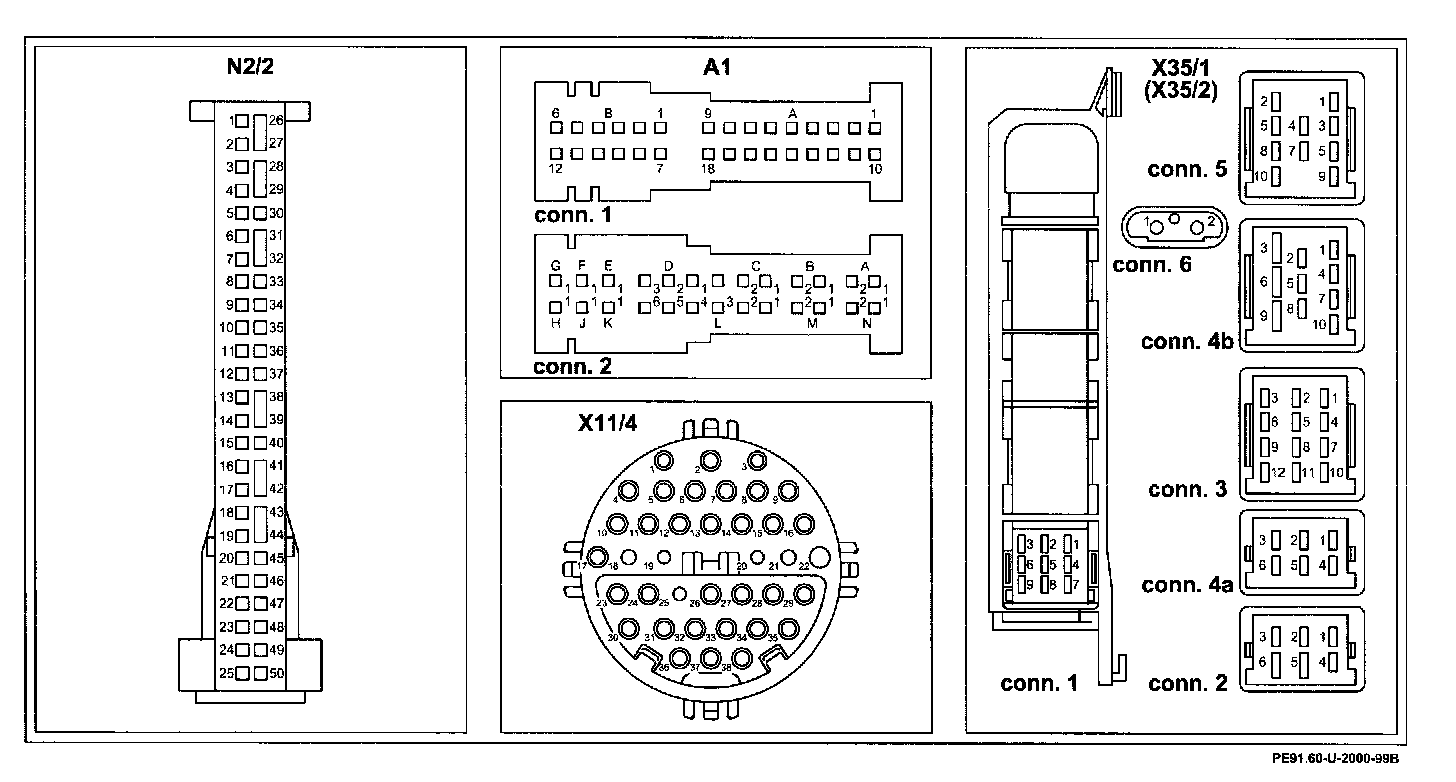

Connector Assignment:
