Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Collision Avoidance and Parking Assist Systems

Collision Avoidance and Parking Assist Systems

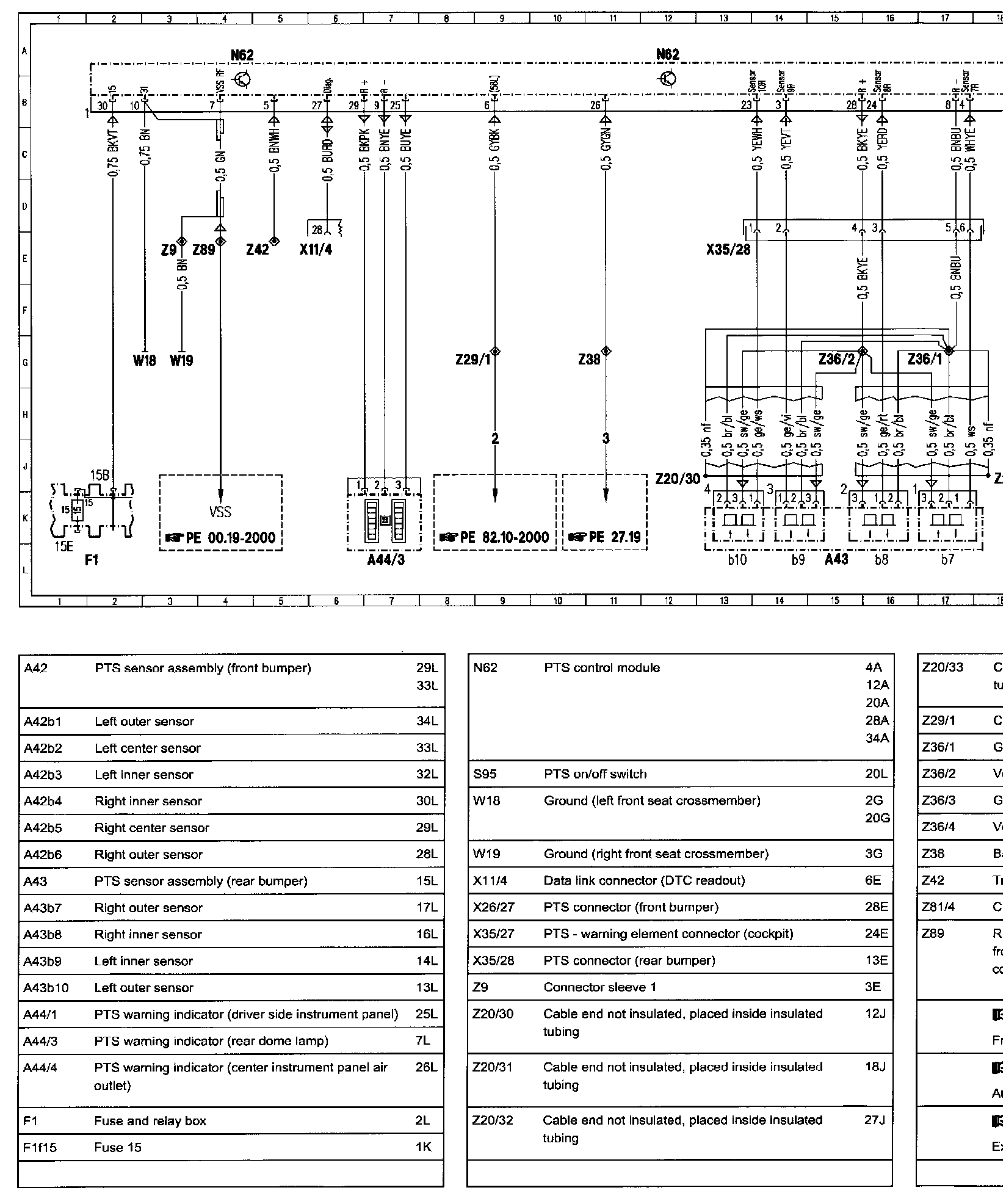

��9�ܱ9Parktronic Wiring Diagram PE54.65-U-2000-99C:
