X4/31 (Int) - Terminal Block (Circuit 30)

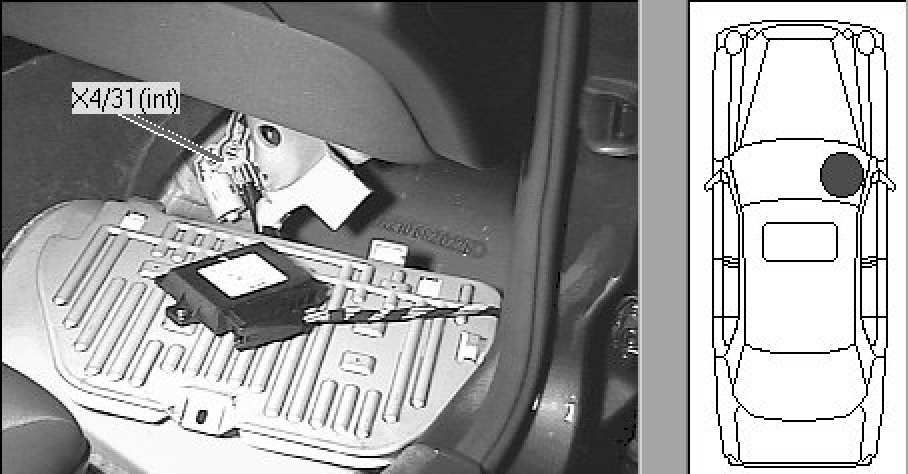

Interior, upper passenger footwell (passes through firewall, interior side shown)
