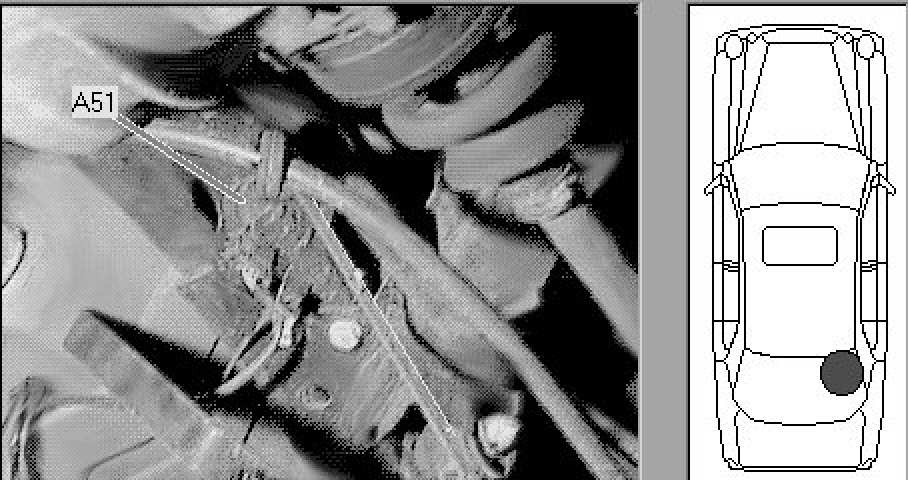

A51 - Rear Axle Sensor (Headlamp Range Adjustment)
A51 - Rear Axle Sensor (Headlamp Range Adjustment)
Beneath vehicle, forward of right rear axle, behind cover.
