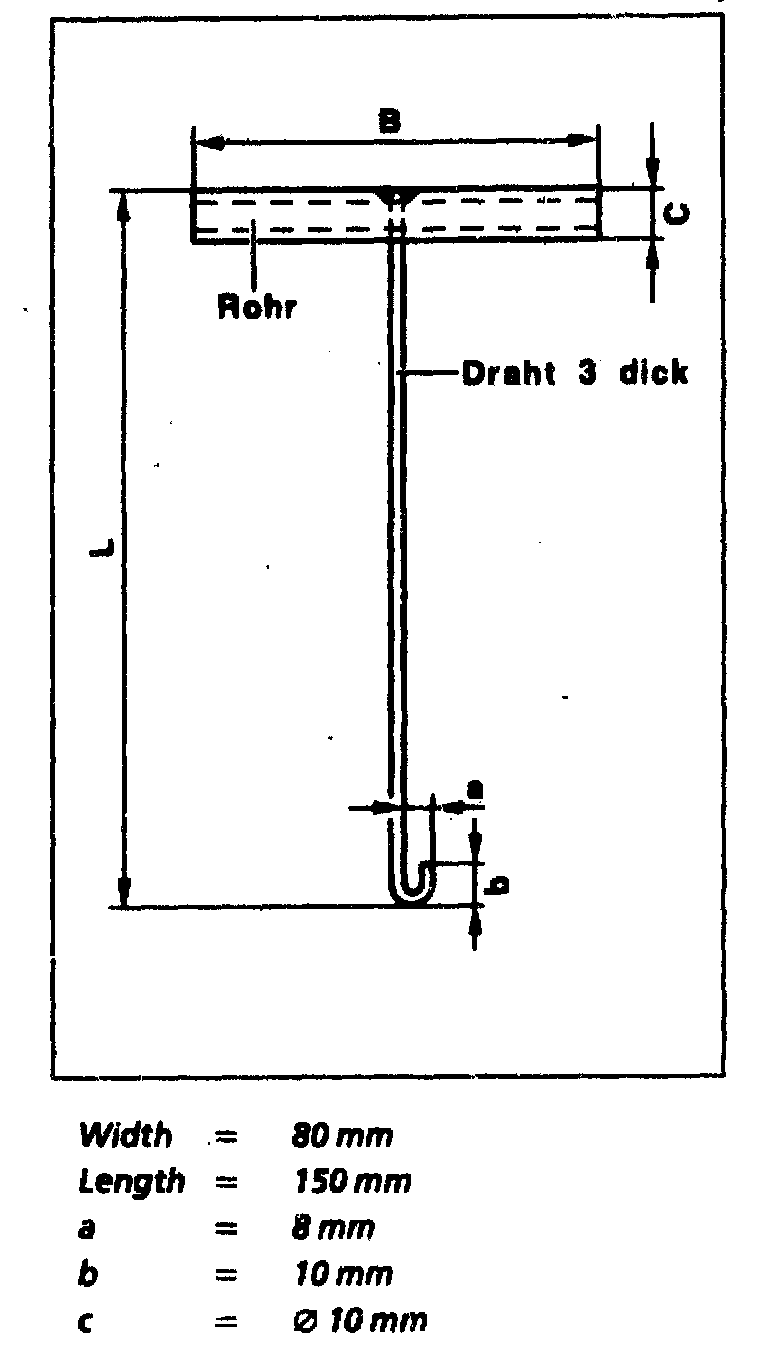

Shop-Made Assembly Hook For Tacking Tool
Shop-Made Assembly Hook For Tacking Tool
Assembly hook to be made from
3 mm
dia. wire.
