Preparation For Test (Seat Adjustment W/ Memory) - Section 22

CAUTION: Injury hazard from pinching and crushing, in extreme cases extremities can even be severed when caught in the mechanism.
Do not allow any body parts to be in the general area of the moving components.

Preparation for Test:
1. Review Connection and Use of Test Equipment Section, as well as sections 12, 20, 21, 31.
2. Battery voltage 11 - 14 V,
2. Check fuses - OK,
3. Prior to each connection or disconnection of connectors at the combination control module (N10-1), the battery ground cable must be disconnected (otherwise fault codes will be erroneously stored in DTC memory),
4. Ignition ON, or applicable door opened,
5. Voltage supply for control modules and CAN-data wiring OK (refer to Information Bus, System Diagnosis).
6. Version coding correct.

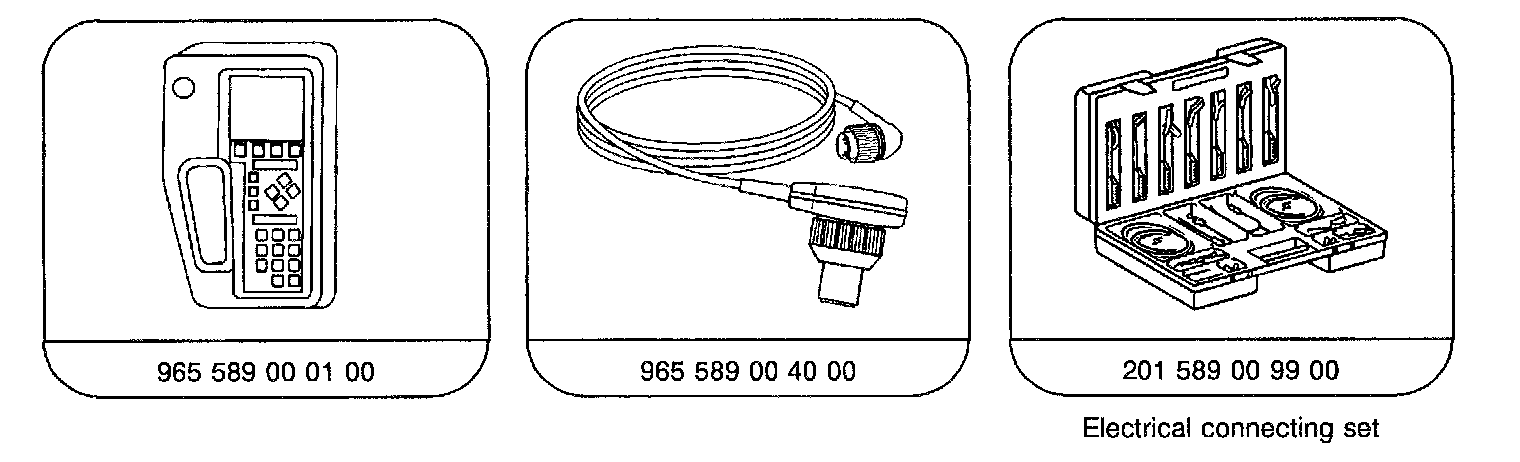

Special Tools:

Test equipment
Description Brand, model, etc.
Digital multimeter Fluke models 23 , 77 III, 83, 85, 87
