AR88.70-P-9020E Remove/Install Mirror Glass
AR88.70-P-9020E Remove/Install Mirror Glass
AR88.70-P-9020E Removing And Installing Mirror Glass

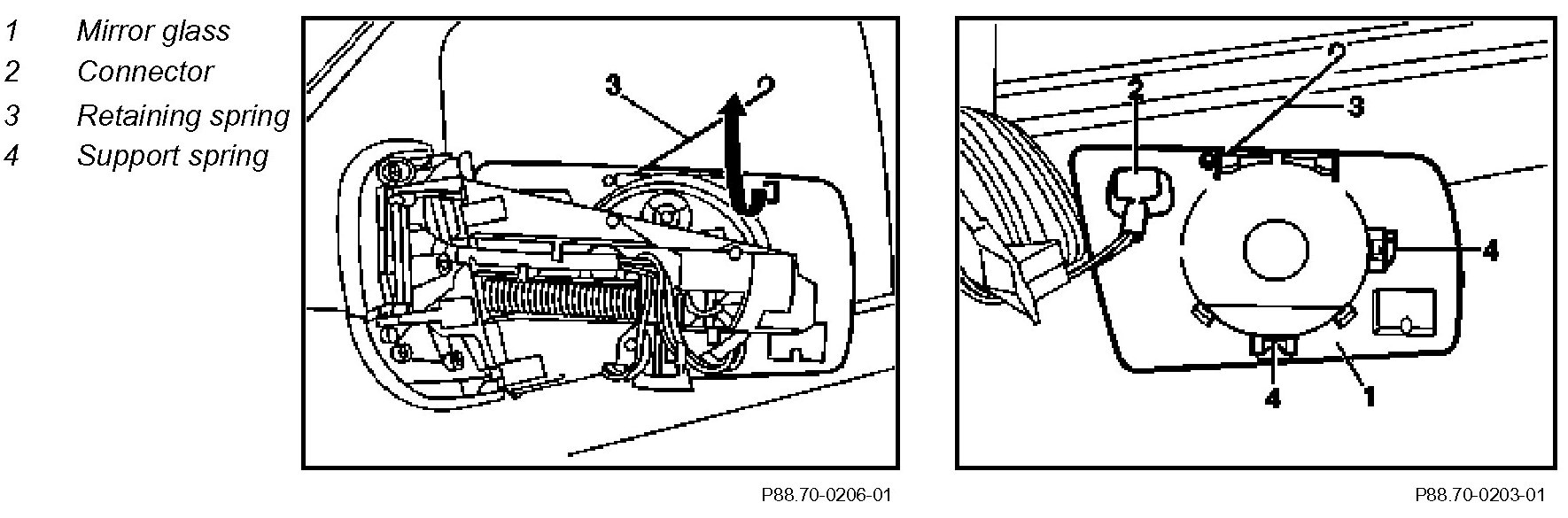

Component Identification:

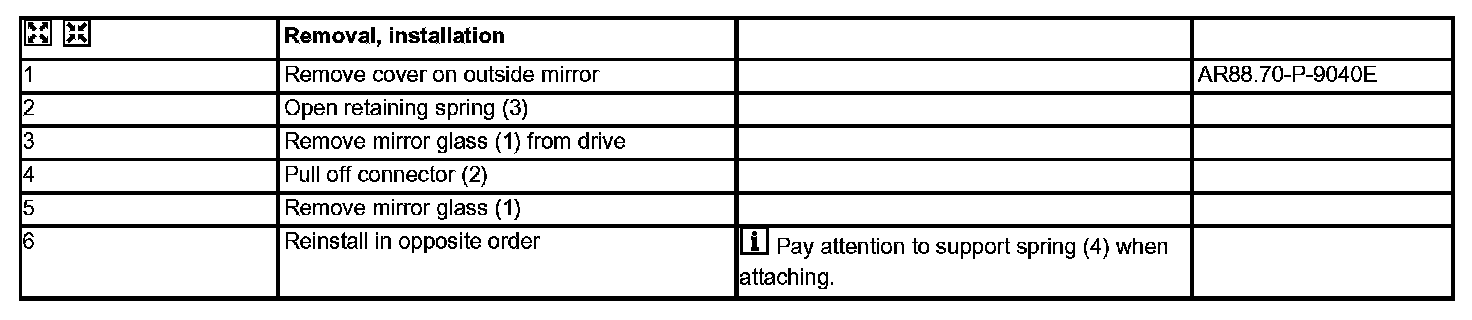

Steps 1 - 6:
