Infrared Remote Locking (RCL) - PE80.30-2000C
Infrared Remote Locking (RCL) - PE80.30-2000C

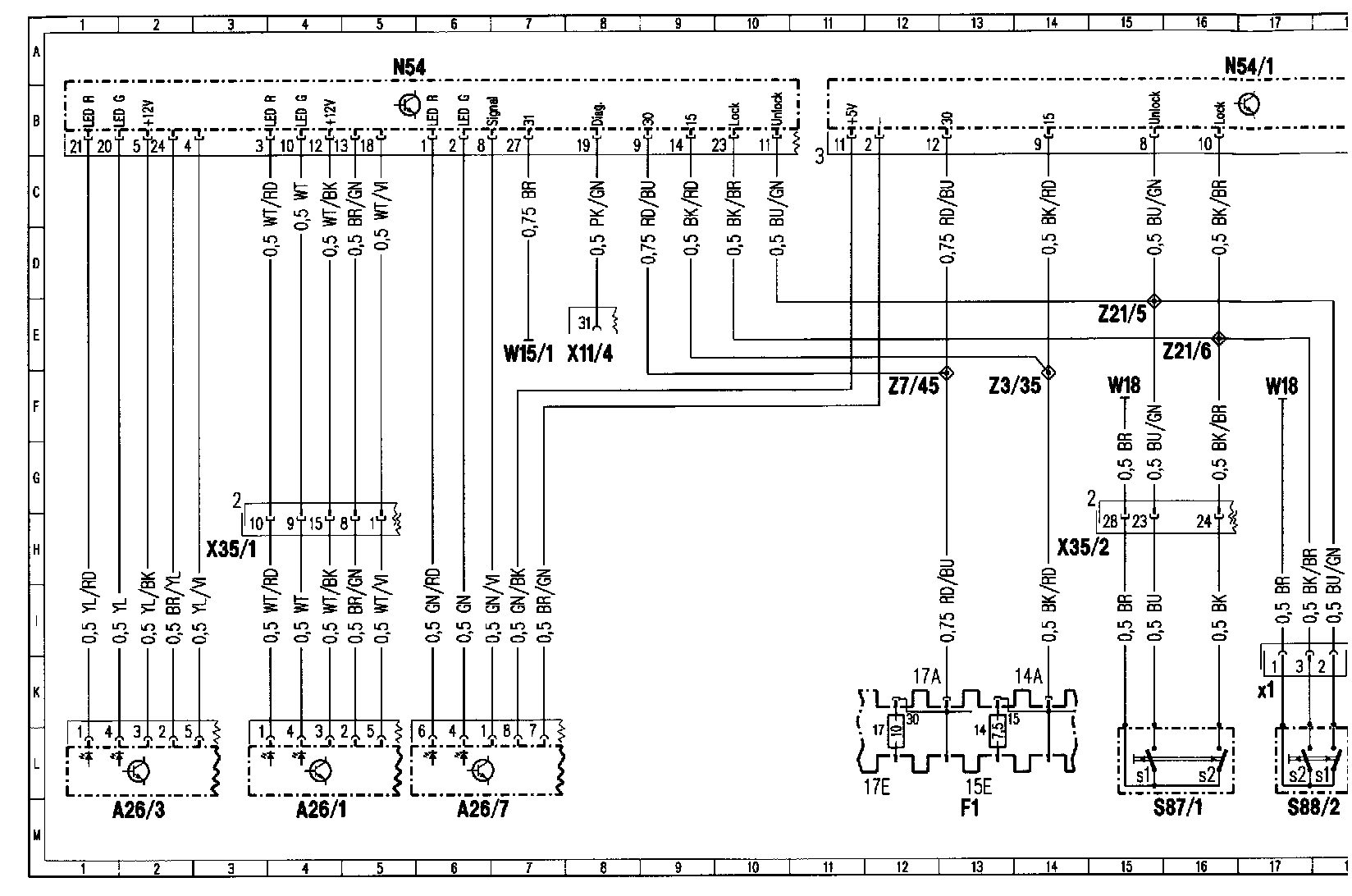

�NwHWiring Diagram:
Component Grid Location

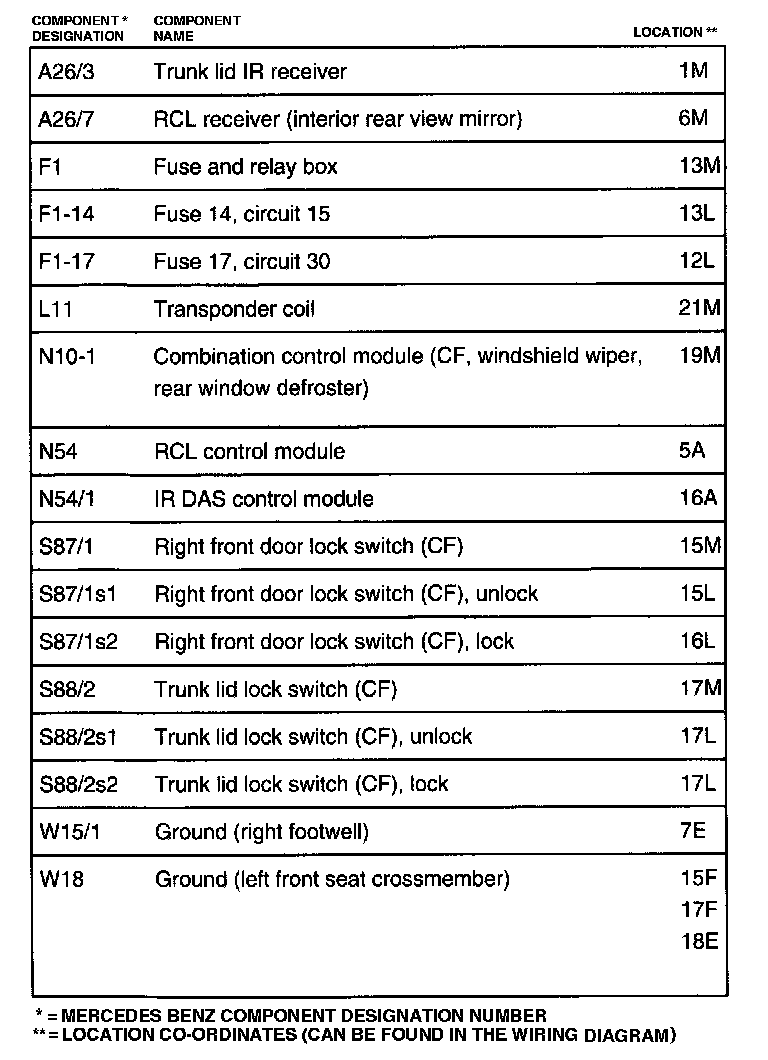

A26/3 - W18:

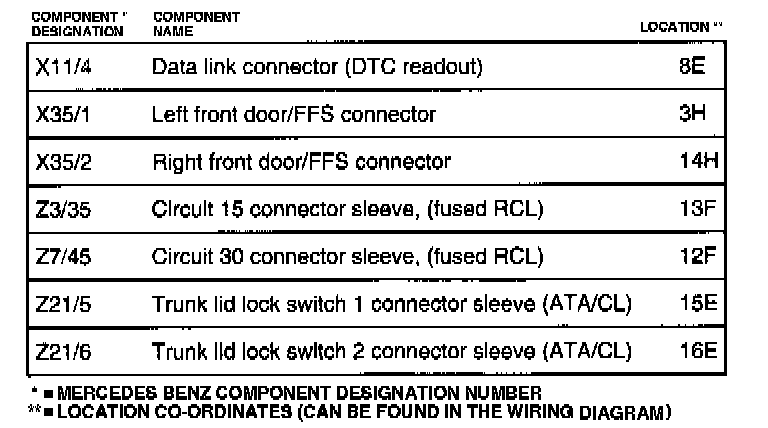

X11/4 - Z21/6:
