Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Overhaul

Overhaul

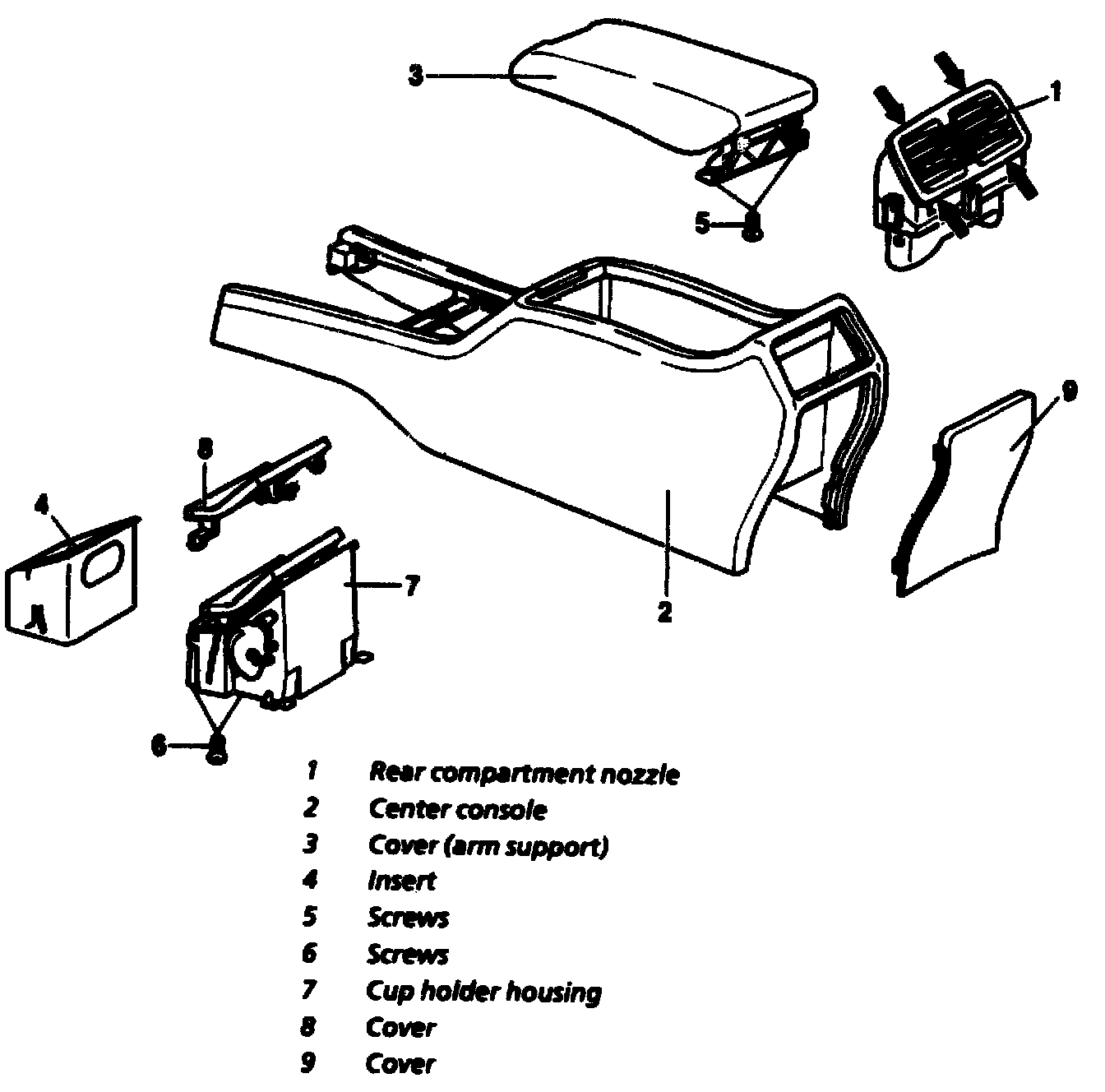

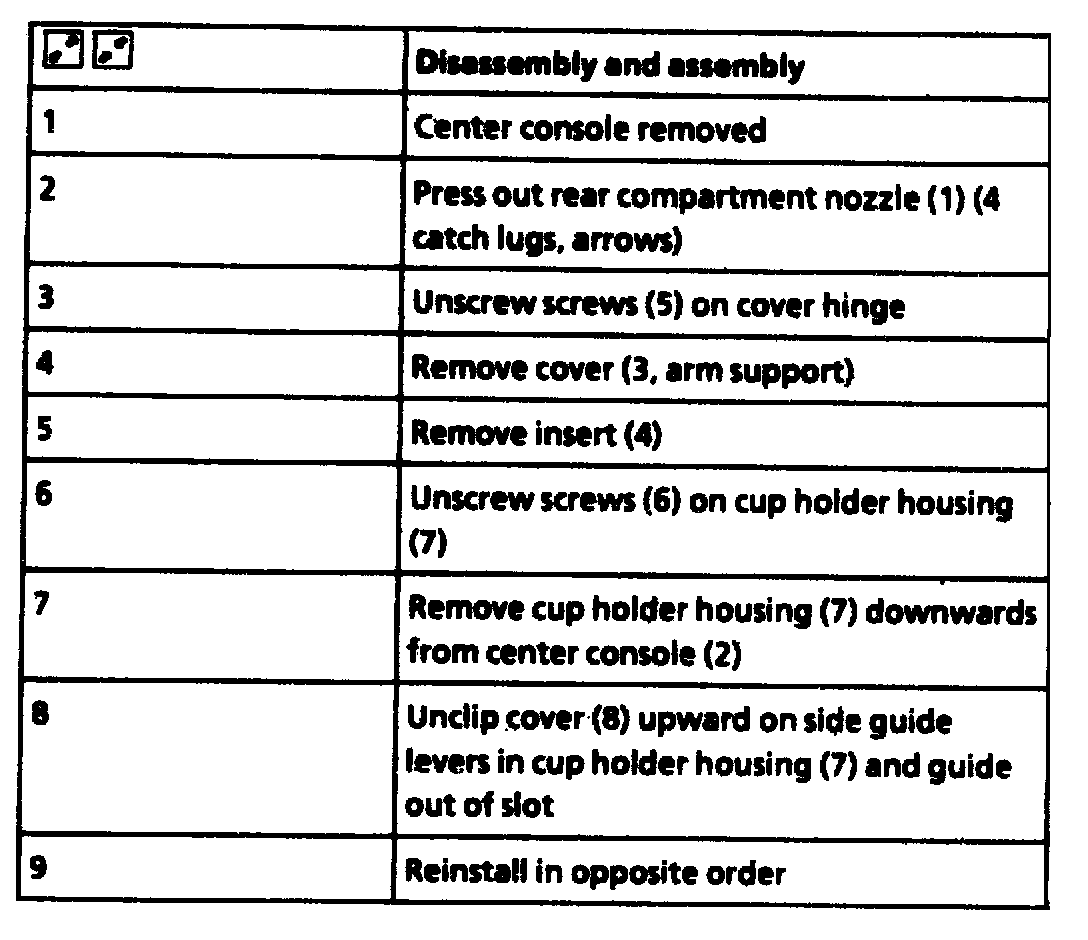

AR68.20-P-2150F Disassemble/Assemble Center Console
- with CODE (303) Front tilting armrest with compartment
