Trunk / Liftgate Release Lever: Service and Repair



AZ88.50-P-0002F Retrofitting Trunk Lid Emergency Release

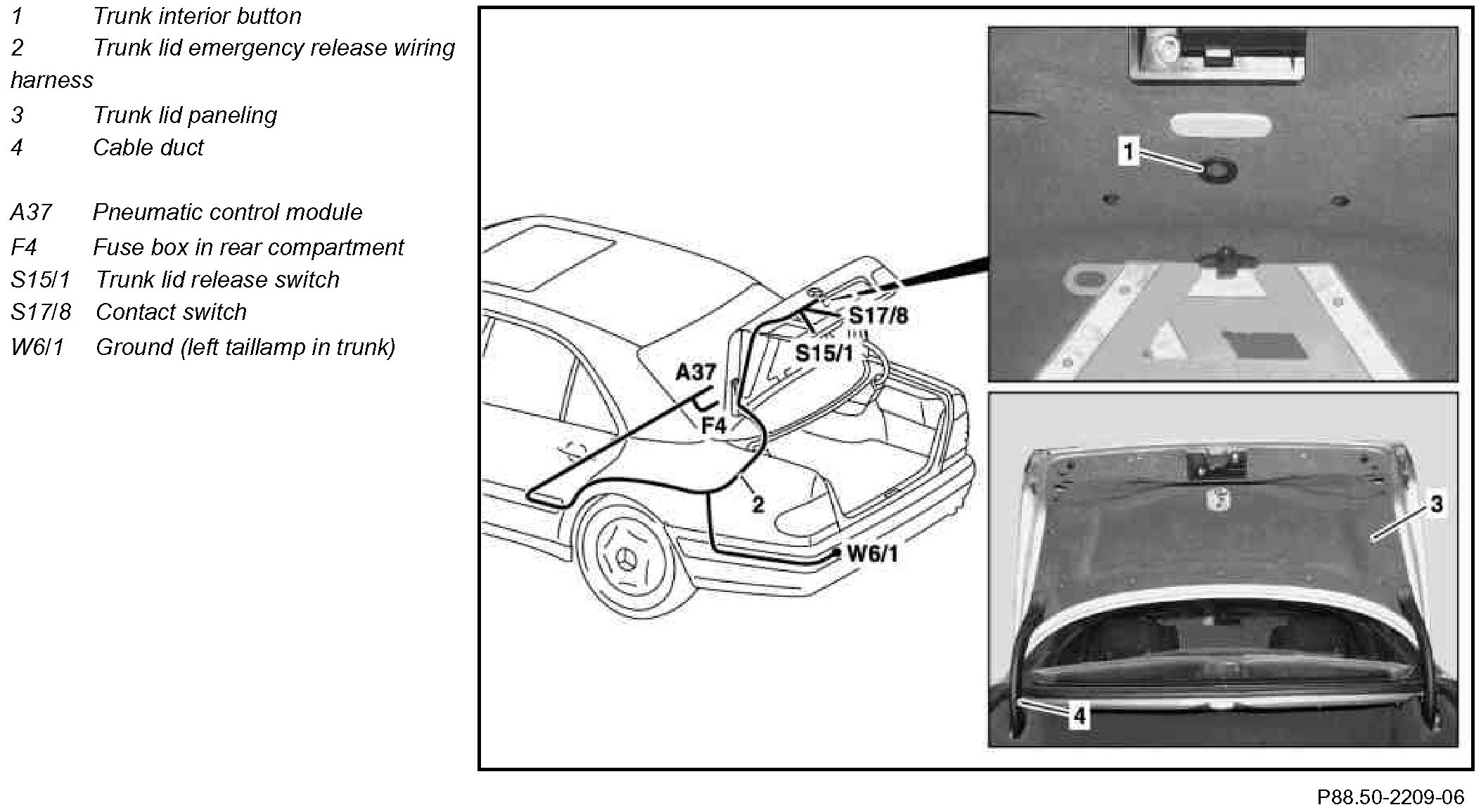

Component Identification:

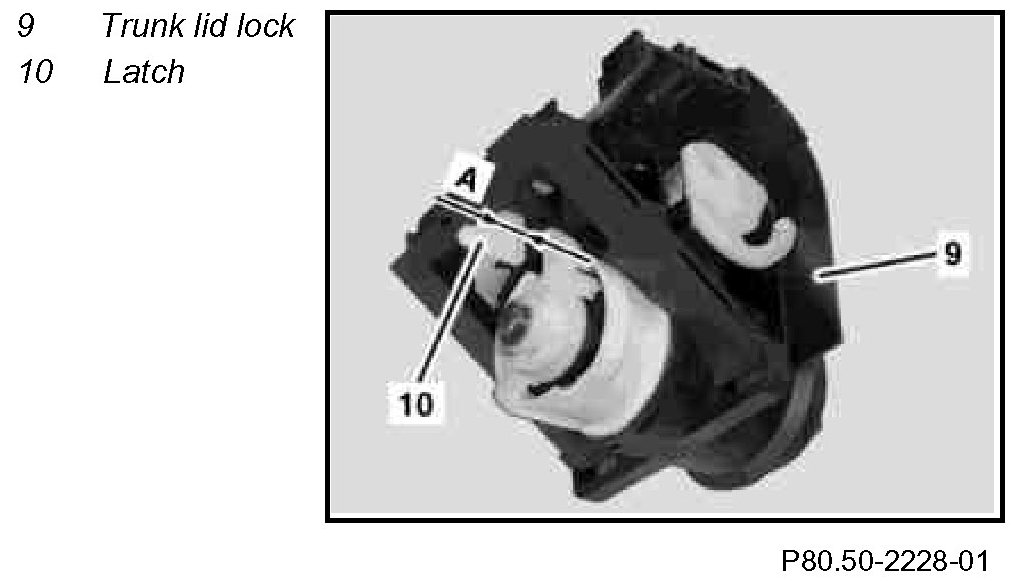

Component Identification:

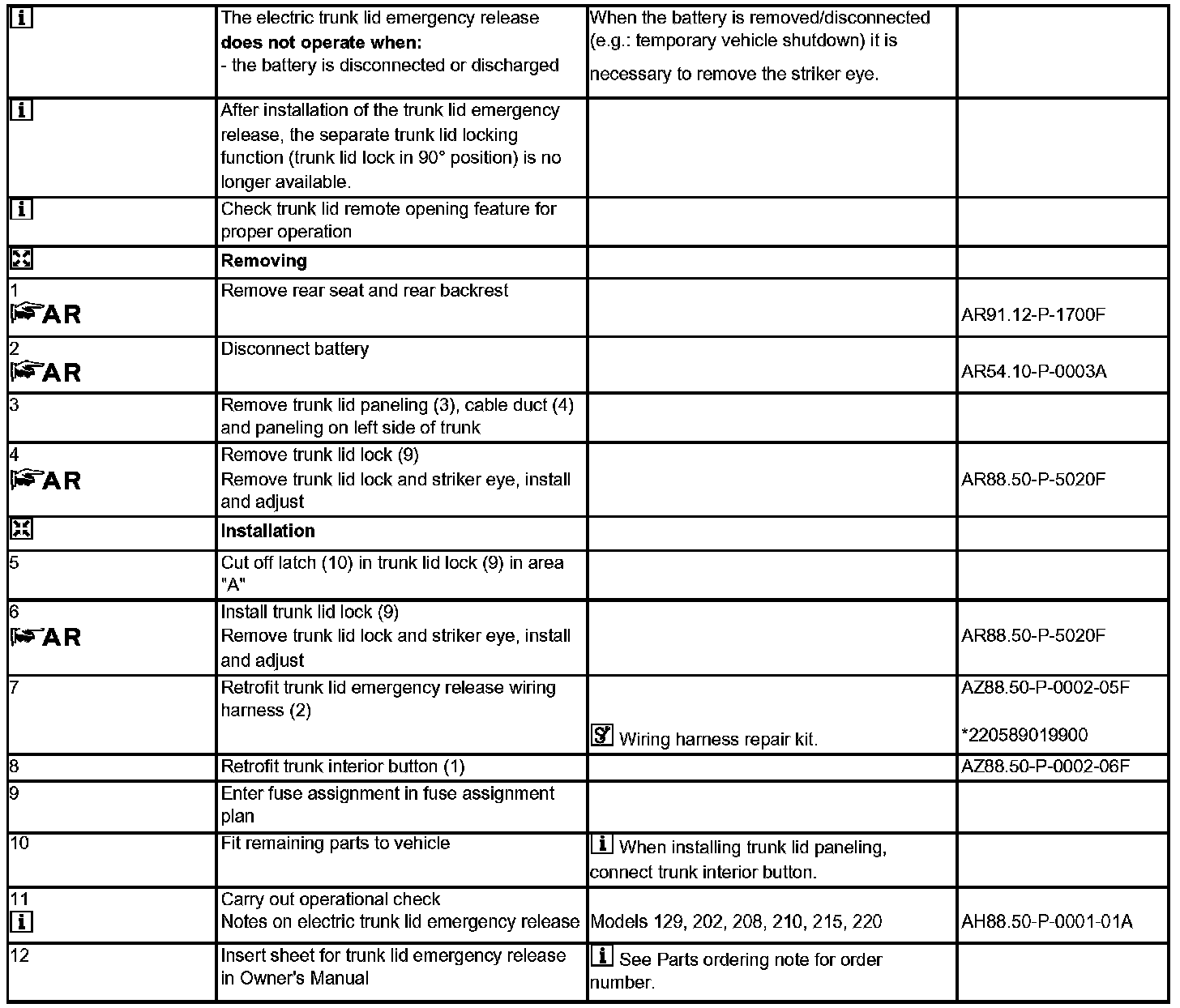

Steps 1 - 12:

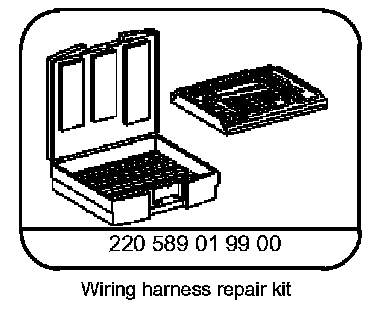

Special Tools:

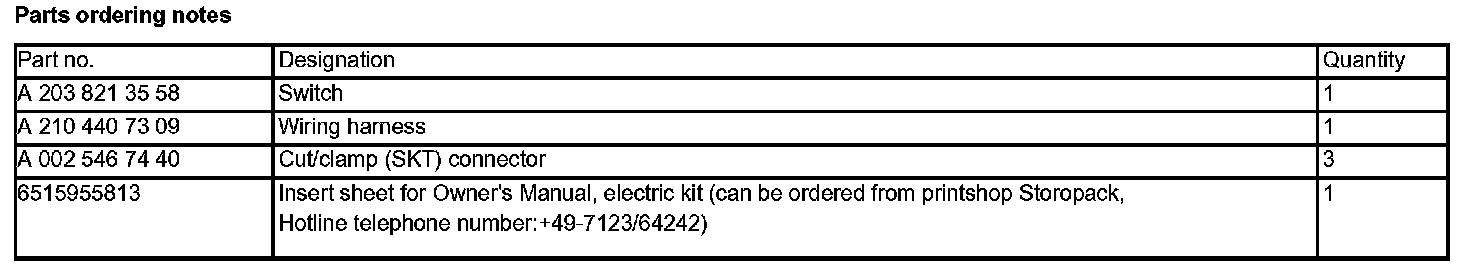

Parts Ordering Notes:
