Trunk / Liftgate Latch: Service and Repair



AR88.50-P-5020F Removing, Installing And Adjusting Trunk Lid Lock And Striker Eye

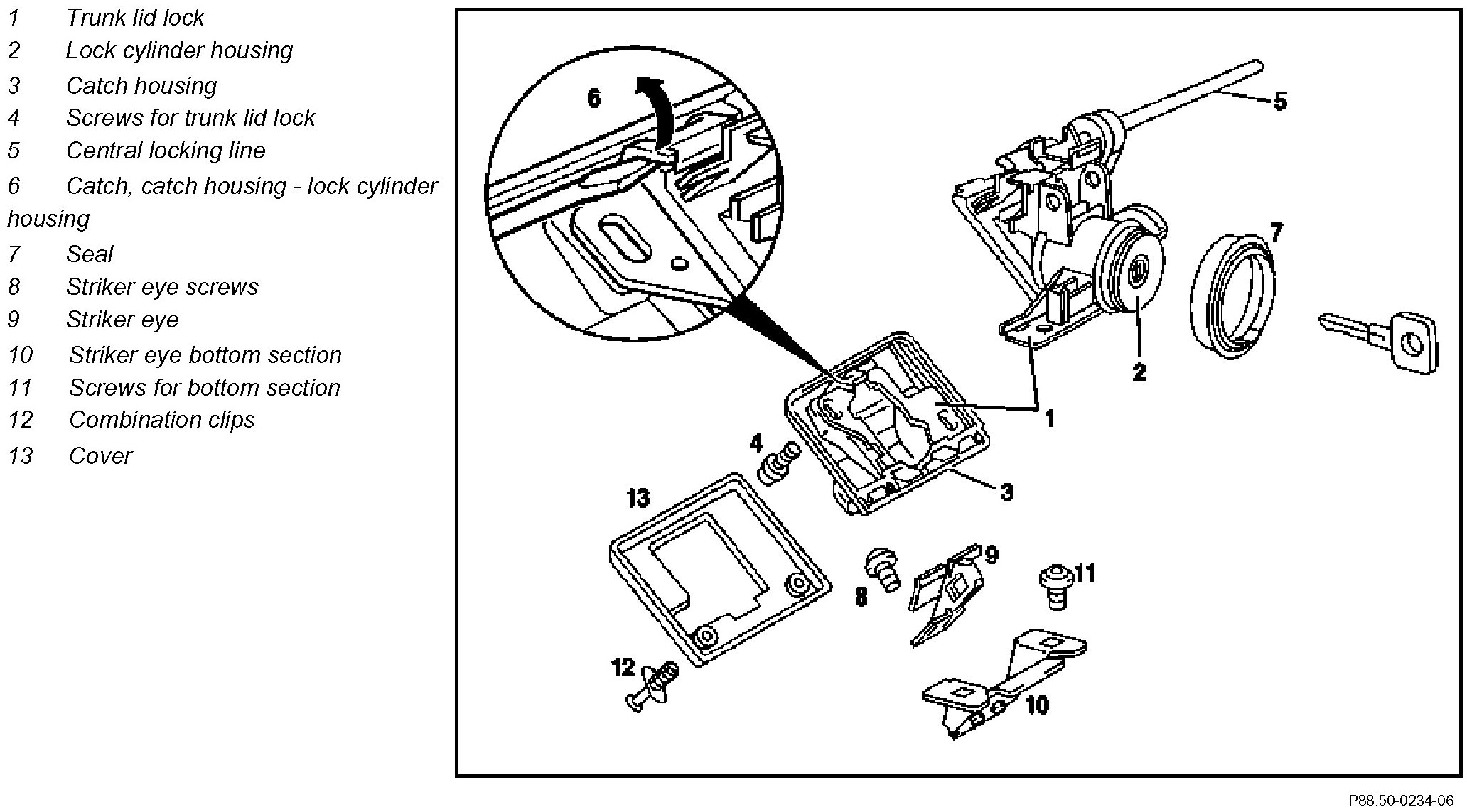

Component Identification:

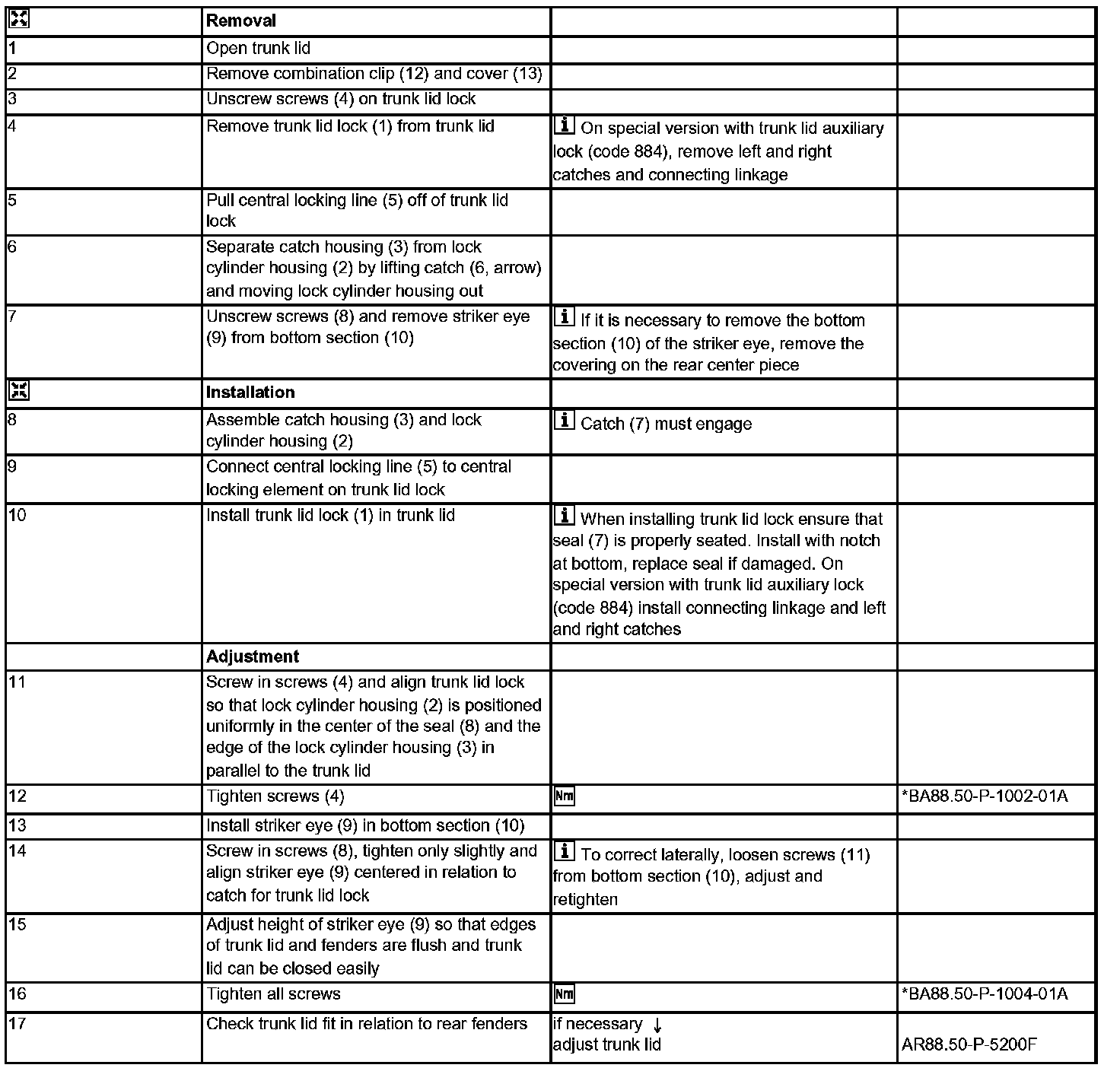

Steps 1 - 17:

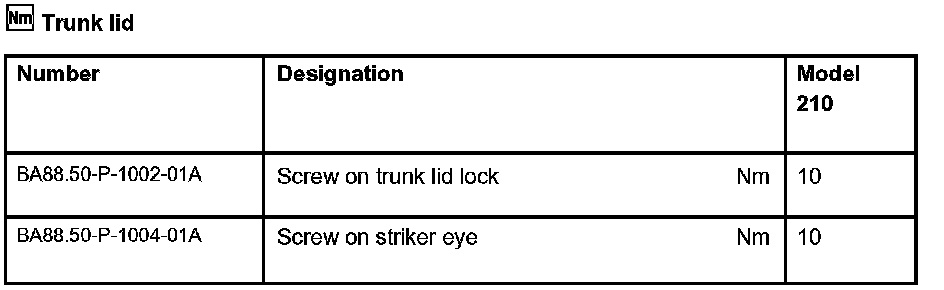

Trunk Lid:
