Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Service and Repair >> Removal and Replacement

Removal and Replacement

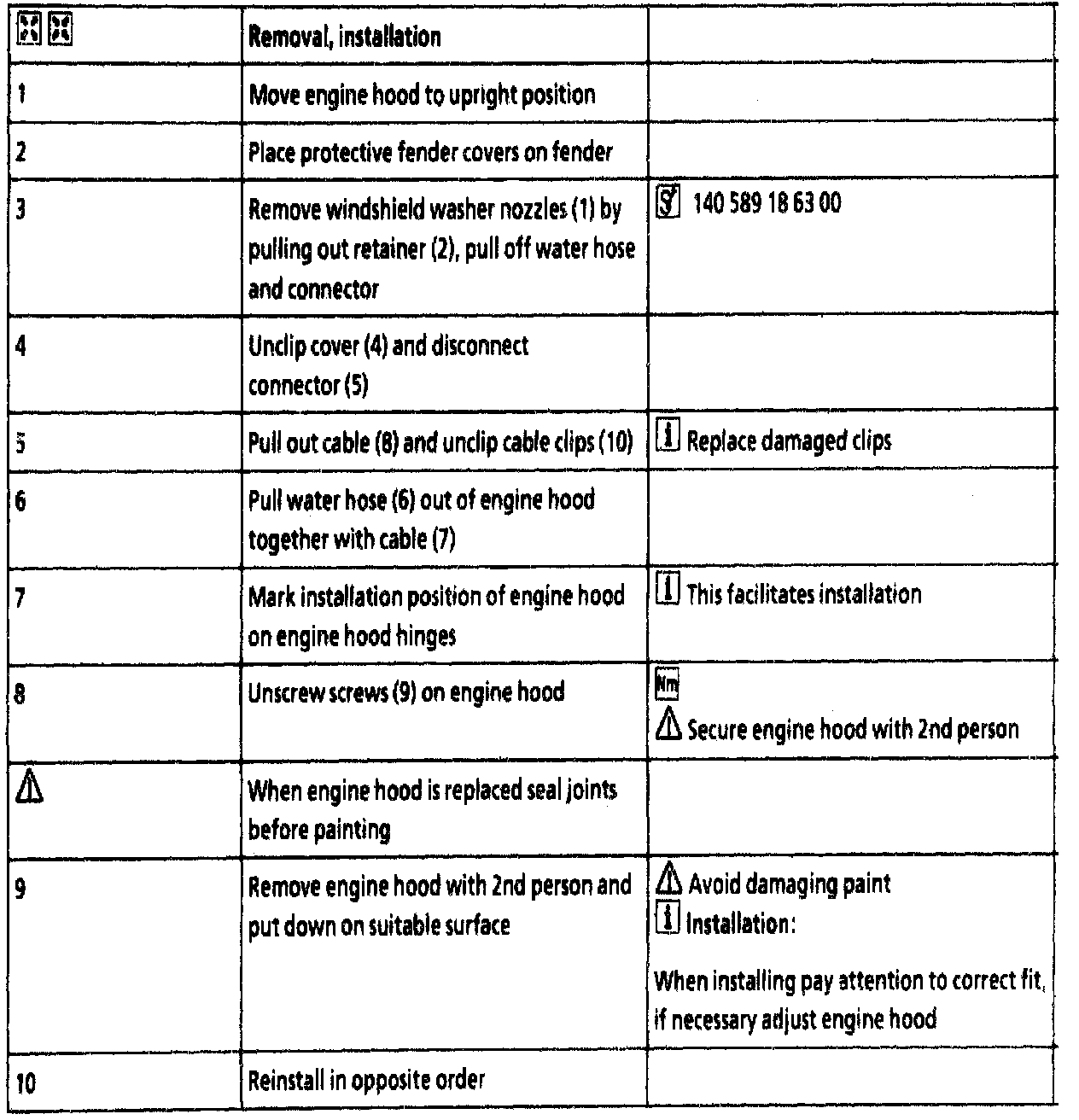

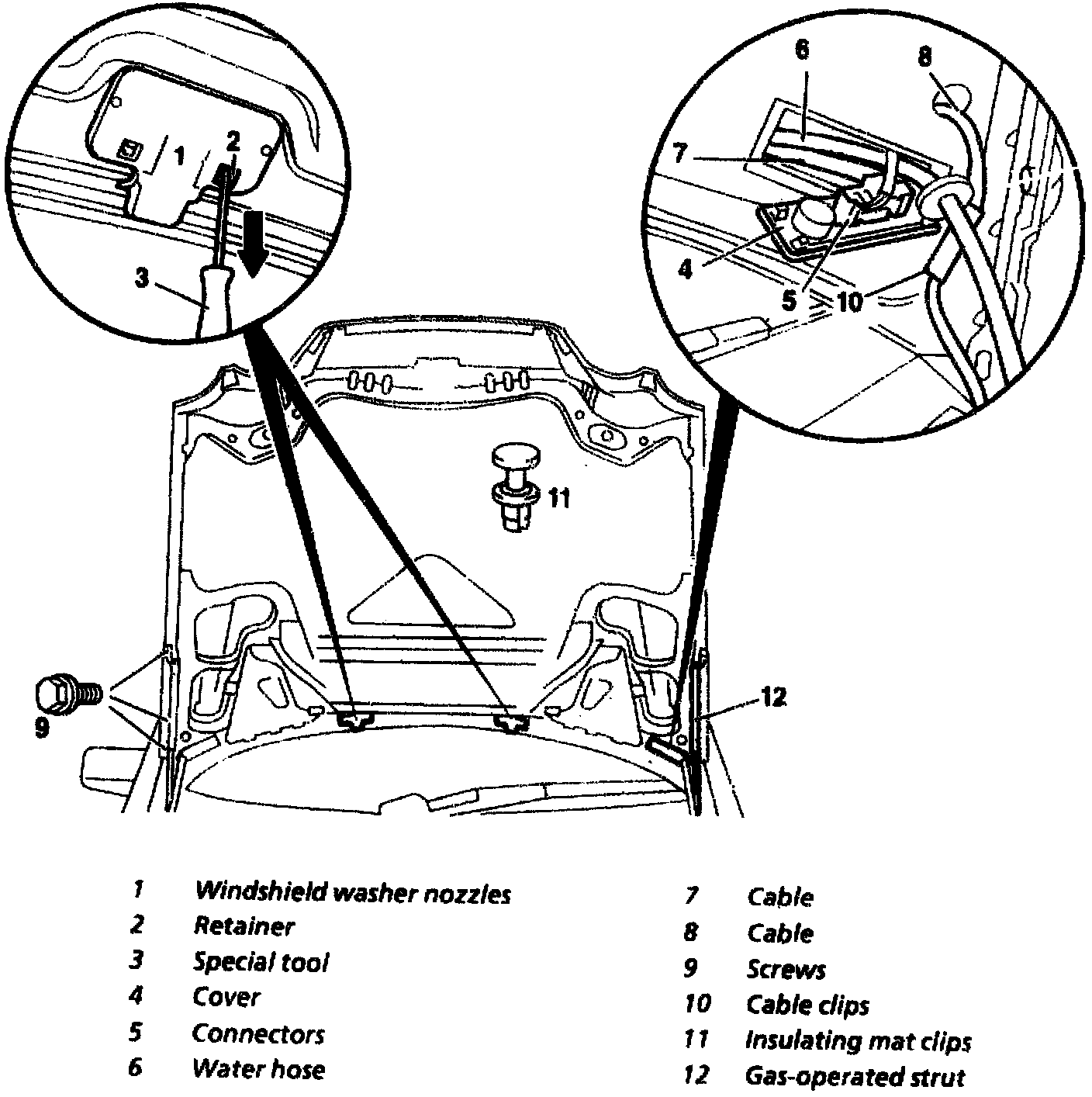

AR88.40-P-3000F Remove/Install Engine Hood












Tightening Specifications
Screws (9) on engine hood: 10 Nm
