FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1999
>>
E 300TD (210.025) L6-3.0L DSL Turbo (606.962)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Testing and Inspection
>>
Diagnostic Procedures
>>
Electric Mirror, Steering Column Adj., Heated Mirrors (EMSC)
>>
ETP - Electrical Test Program
>>
Connection of Components
Connection of Components

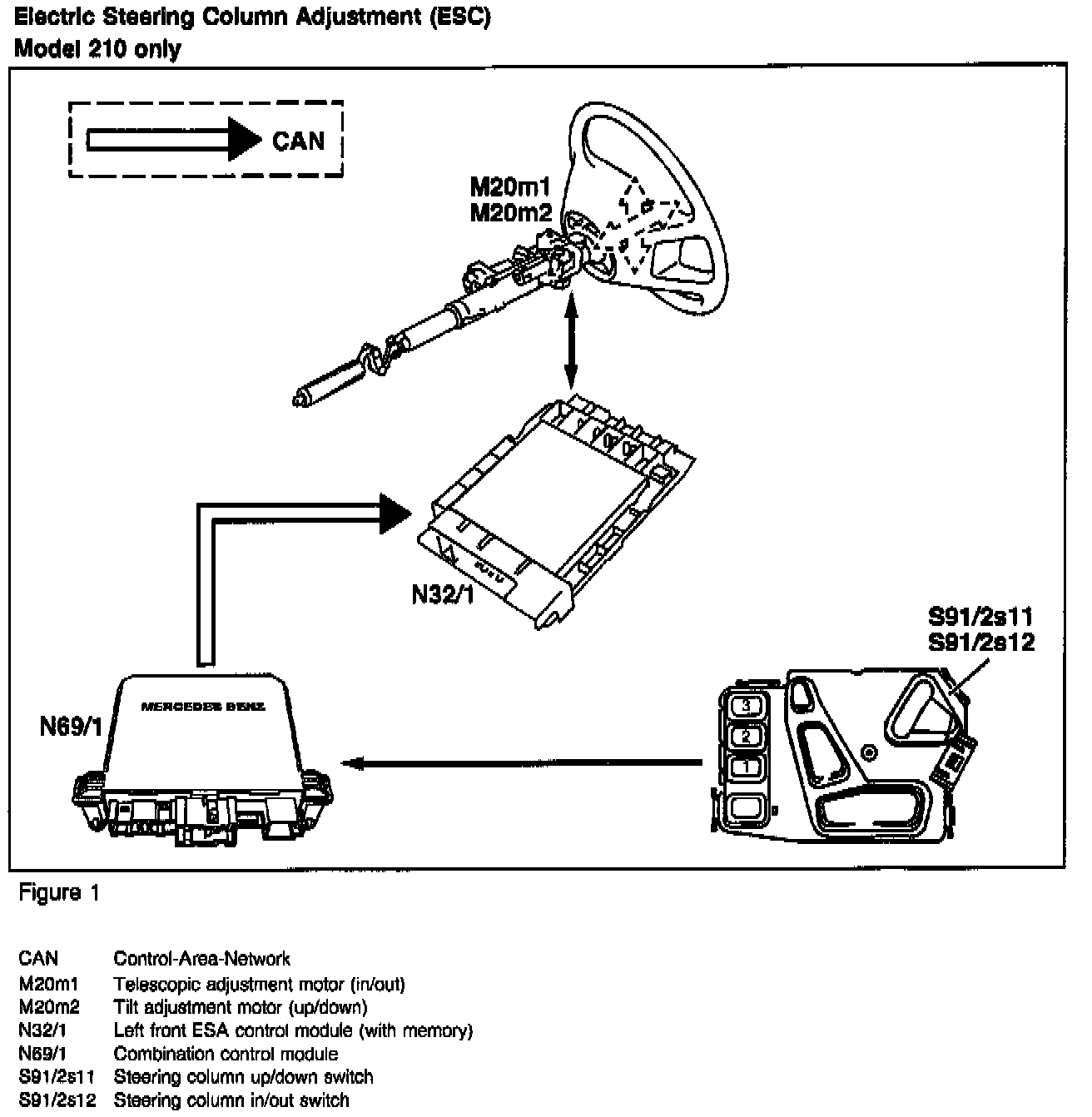

Electric Steering Column Adjustment:

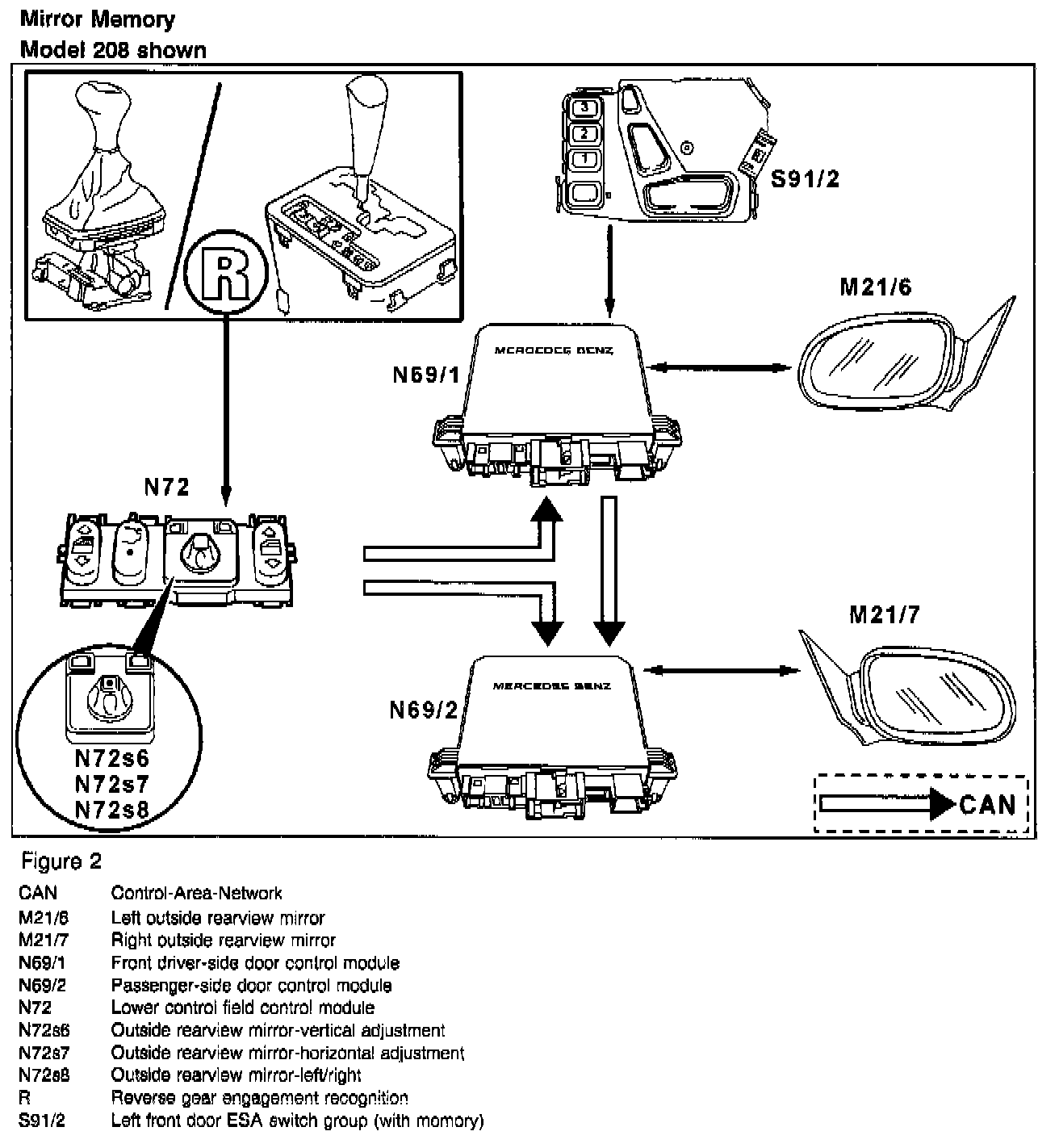

Mirror Memory:

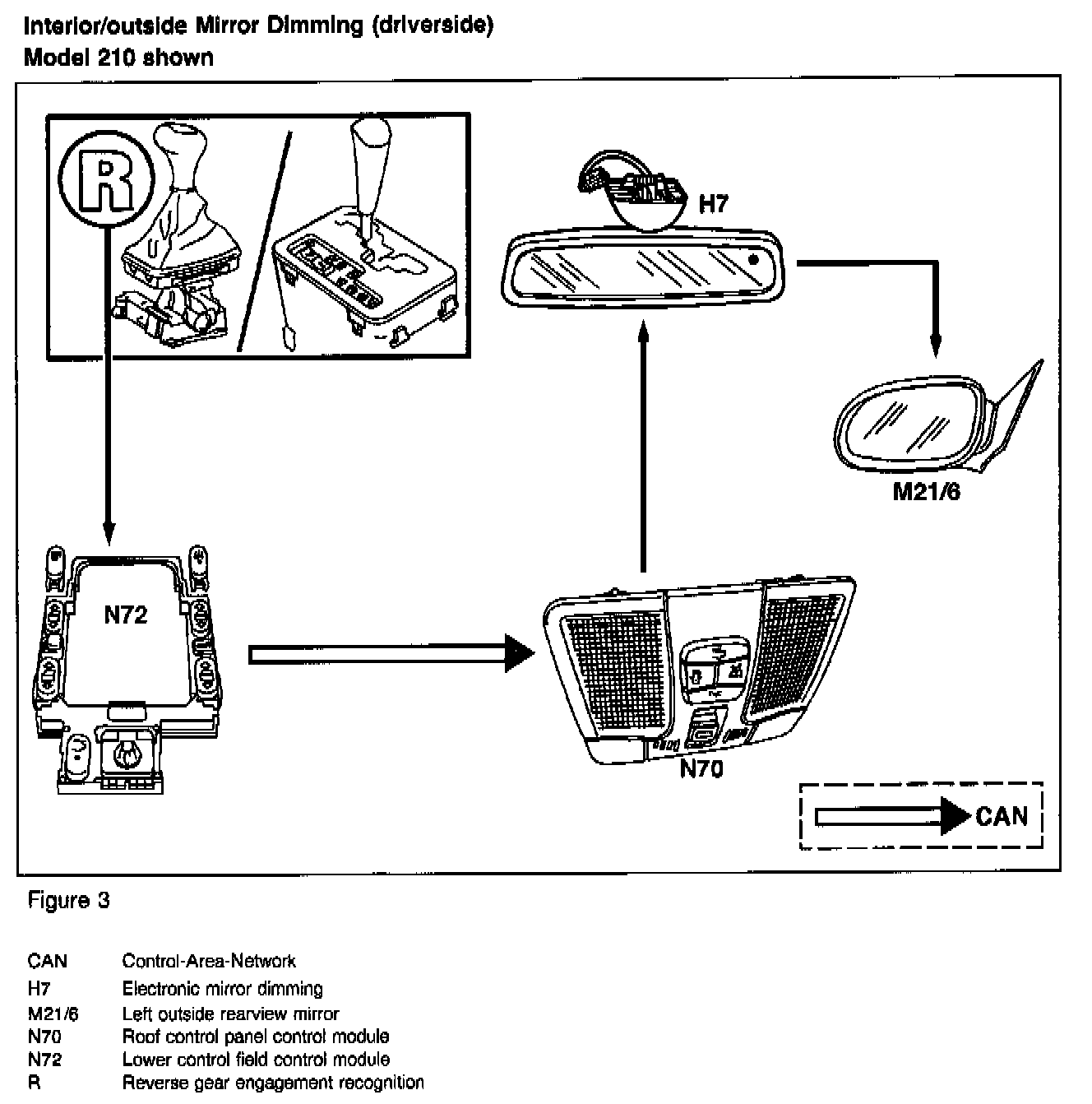

Mirror Dimming (Driver Side):
Mirror Heating:
