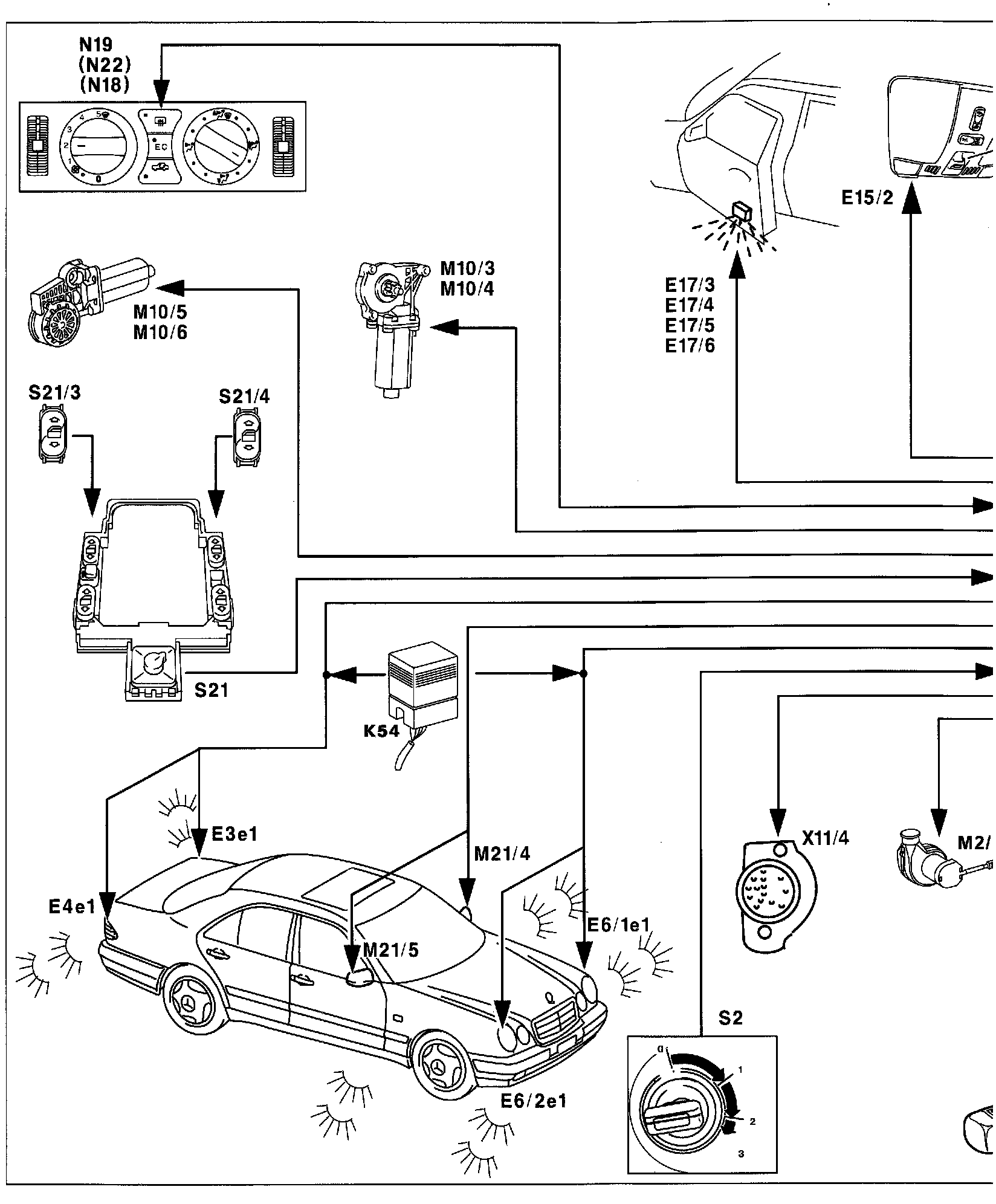

Connections of Components

�4�<���<���<:

A2 Radio
A26/7 RCL receiver (interior rearview mirror)
A37 PSE control module, combined functions
E3e1 Turn signal lamp
E4e1 Turn signal lamp
E6/1e1 Turn signal
E6/2e1 Turn signal
E15/2 Front dome lamp (with shut-off delay and front reading lamp)
E15/3 Rear dome lamp
E17/3 Left front door entrance/exit lamp
E17/4 Right front door entrance/exit lamp
E17/5 Left rear door entrance/exit lamp
E17/6 Right rear door entrance/exit lamp
E25/3 Left D-pillar interior lamp
E25/4 Right D-pillar interior lamp
H3 Alarm horn
K54 Locking confirmation relay module
L6/1 Left front axle VSS sensor
L11 Transponder coil
M2/2 Module box blower motor
M6/1 Wiper motor
M10/3 Left front power window motor (voltage supply)
M10/4 Right front power window motor (voltage supply)
M10/5 Left rear power window motor
M10/6 Right rear power window motor
M12/1 Sliding/pop-up roof
M20 ESC motor
M21/4 Electrically adjustable and heated driver-side outside rearview mirror (with memory)
M21/5 Electrically adjustable and heated front passenger outside rearview mirror (with memory)
M27 Left front ESA motor group (with memory)
M28 Right front ESA motor group (with memory)
N7 Exterior lamp failure monitoring module
N10-1 Combination control module
N22 A/C pushbutton control module (Automatic A/C)
N32/1 Left front ESA control module (with memory)
N32/2 Right front ESA control module (with memory)
N47-1 ASR/SPS control module
N47-2 ETS/SPS control module
N7 Exterior lamp failure monitoring module
N10-1 Combination control module
N22 A/C pushbutton control module (Automatic A/C)
N32/1 Left front ESA control module (with memory)
N32/2 Right front ESA control module (with memory)
N47-1 ASR/SPS control module
N47-2 ETS/SPS control module
N54 RCL control module
N54/1 IR DAS control module
R1 Rear window defroster element
S2 Starter switch
S4 Combination switch
S6/1s2 Interior switch (CL)
S6/1s3 RHR unlocking switch
S9/1 Stop lamp switch (4-pole)
S13/2 Sliding/pop-up roof switch
S15 Remote trunk release switch
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch
S17/8 Trunk lamp switch
S21 Center console switch group
S21/3 Left rear power window switch
S21/4 Right rear power window switch
S62 Engine hood switch (ATA)
S86/1 Left front door lock switch (CF) (USA)
S87/1 Right front door lock switch (CF) (USA)
S88/2 Rotary tumbler/trunk lid microswitch (USA)
S91 Left front ESA switch group (with memory)
S91s11 Steering column up/down switch
S91s12 Steering column in/out switch
S92 Right front ESA switch group (with memory)i:
X11/4 Data link connector (DTC readout)
Y65/3 RTR control valve (CL)

A CAN-version
SN1 Lock switch circuit 1 (disarm)
SN2 Lock switch circuit 2 (arm)
1 Engine control module
