Component Locations

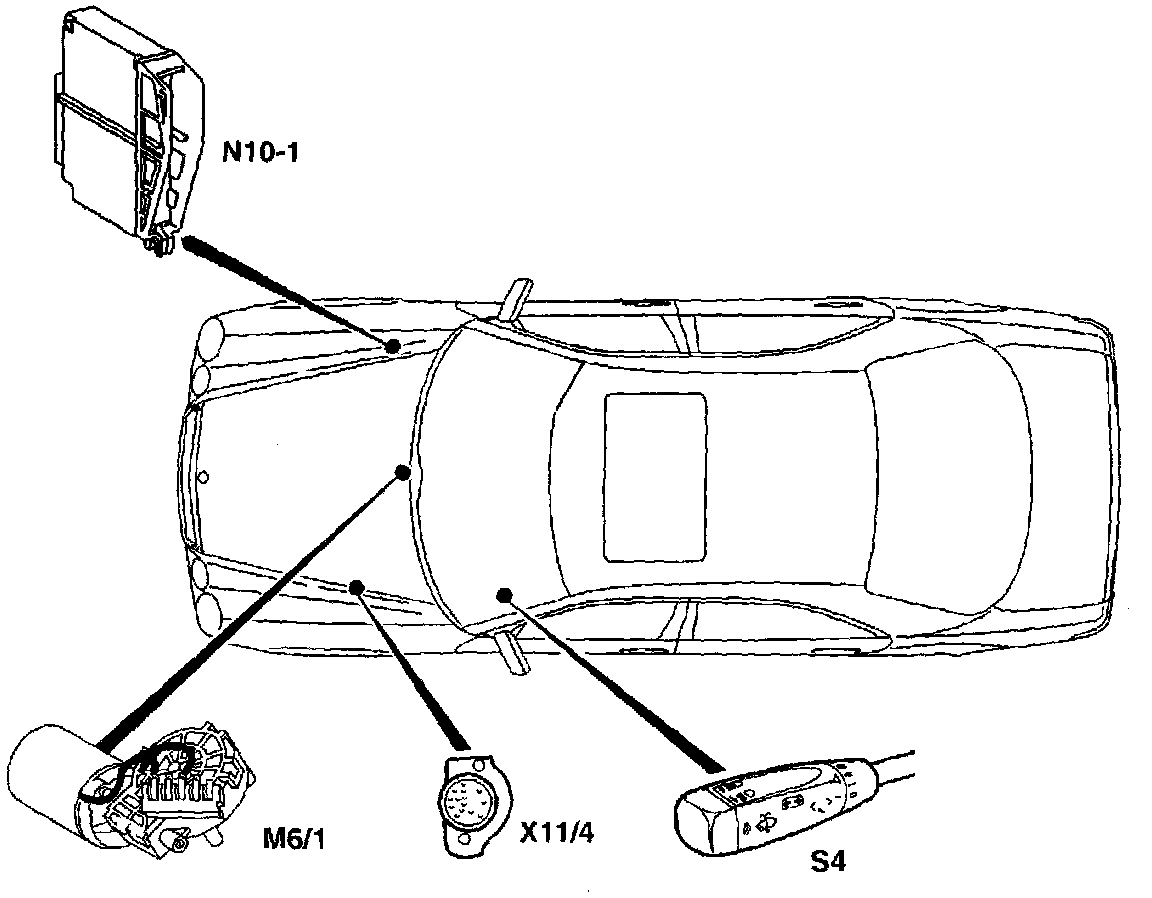

Wiper System




M6/1 Wiper motor
N10-1 Combination control module
S4 Combination switch
X11/4 Date link connector (DTC readout)


Interior Lighting




A37 PSE control module, combined functions
E15/2 Front dome lamp (with shut-off delay and front reading lamp)
E15/3 Rear dome lamp
E17/3 Left front door entrance/exit lamp
E17/4 Right front door entrance/exit lamp
E17/5 Left rear door entrance/exit lamp
E17/6 Right rear door entrance/exit lamp
N10-1 Combination control module
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Left rear door switch
S17/6 Right rear door switch

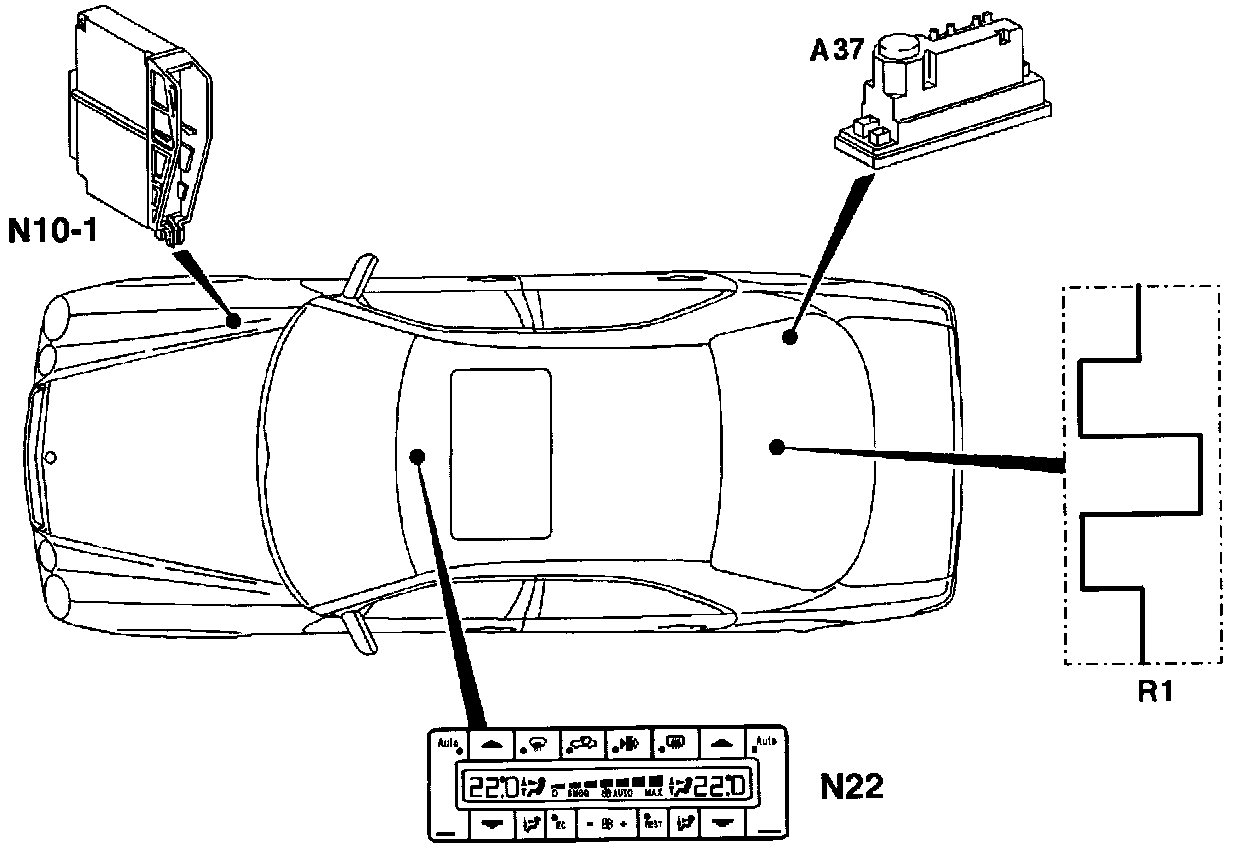

Heated Rear Window




A37 PSE control module, combined functions
N10-1 Combination control module
N22 A/C pushbutton control module (Automatic A/C)
R1 Rear window defroster element

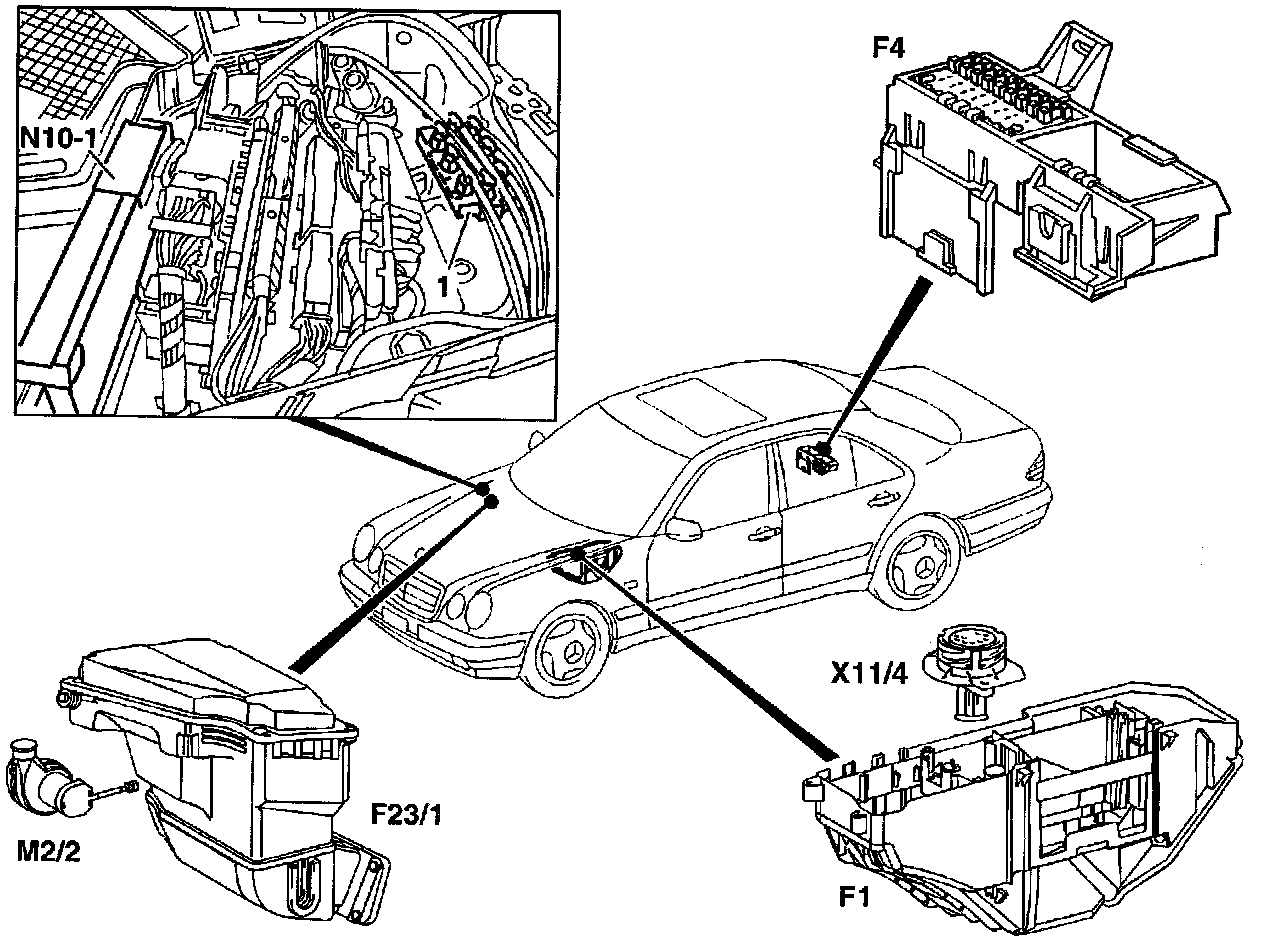

F1 Fuse and relay box
F4 Rear fuse box
F23/1 Control module box
M2/2 Module box blower motor
N10-1 Combination control module
X11/4 Data link connector (DTC readout)
