Home >> Mercedes Benz >> 1999 >> E 300TD (210.025) L6-3.0L DSL Turbo (606.962) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> CD Changer >> Diagrams >> Electrical Diagrams

Electrical Diagrams

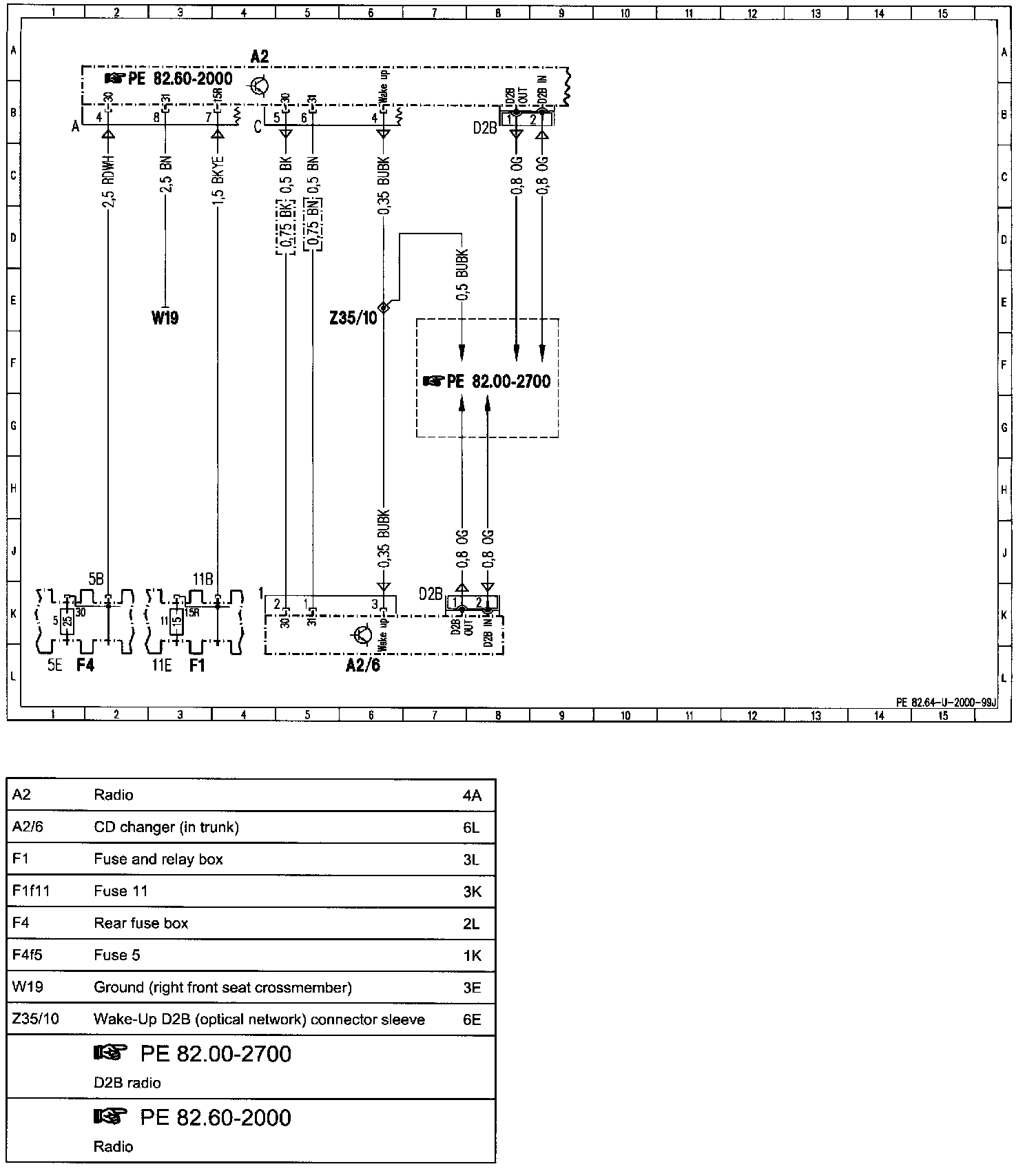

CD Changer - PE82.64-2000J:
