Component Locations In Engine Compartment

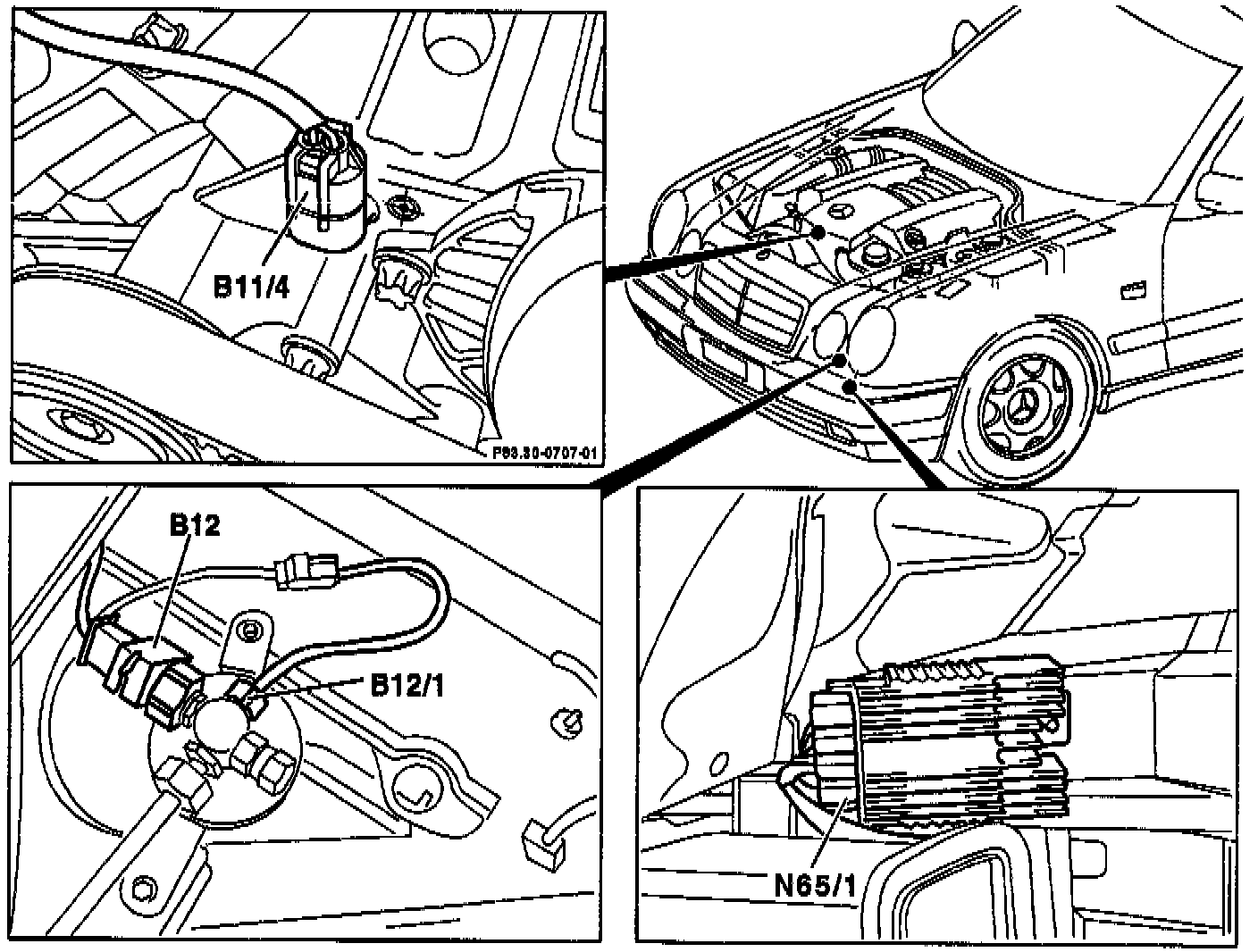

Component Locations In Engine Compartment:
B11/4 ECT sensor (DFI, IFI)
B12 Refrigerant pressure sensor
B12/1 Refrigerant temperature sensor
N65/1 Air control module
