Intake Manifold: Service and Repair
AR09.20-P-1310A Remove/Install Intake Manifold
Component Identification:
Component Identification:

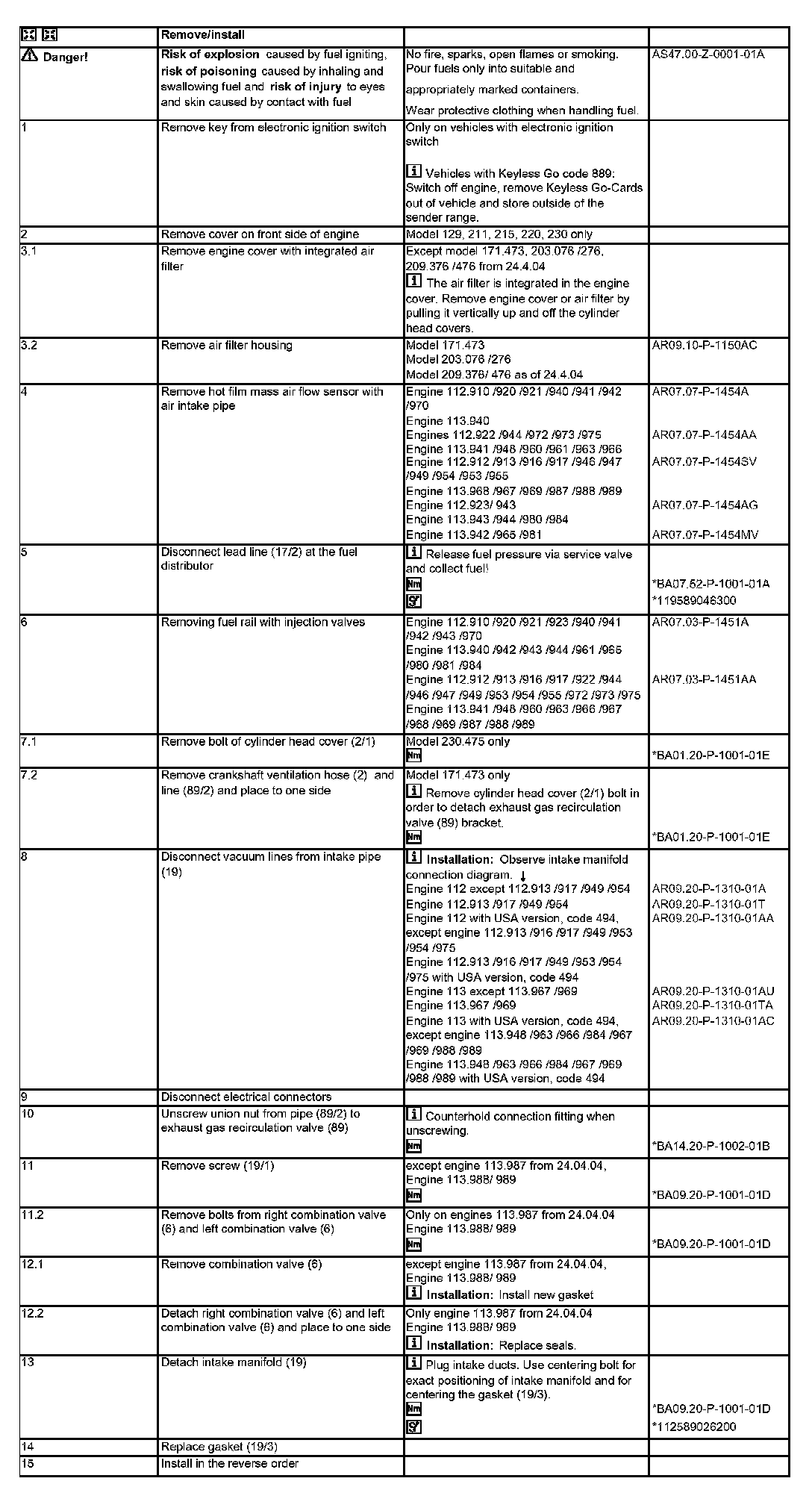

Steps 1 - 15:

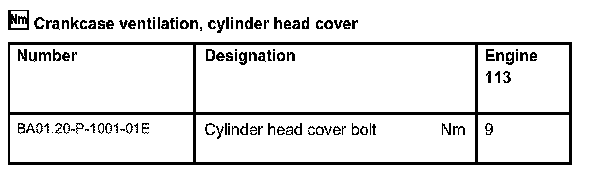

Crankcase Ventilation, Cylinder Head Cover:

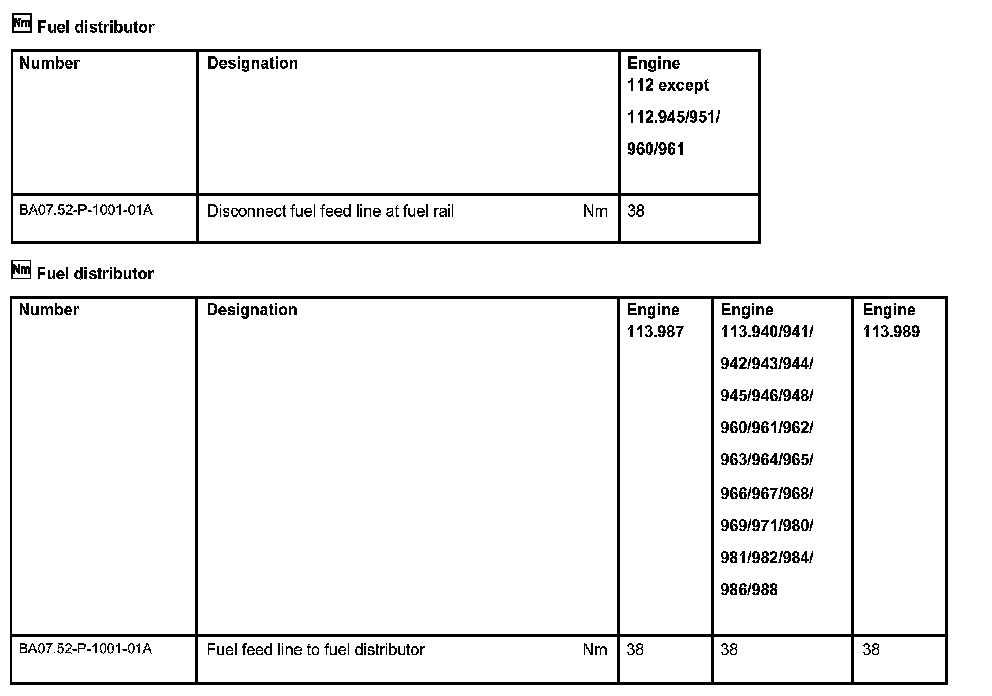

Fuel Distributor:
Intake Manifold:
Exhaust Gas Recirculation:
Special Tools:
Special Tools:
