ME-SFI Fuel Injection/Ignition System PE07.61-U-2000MP

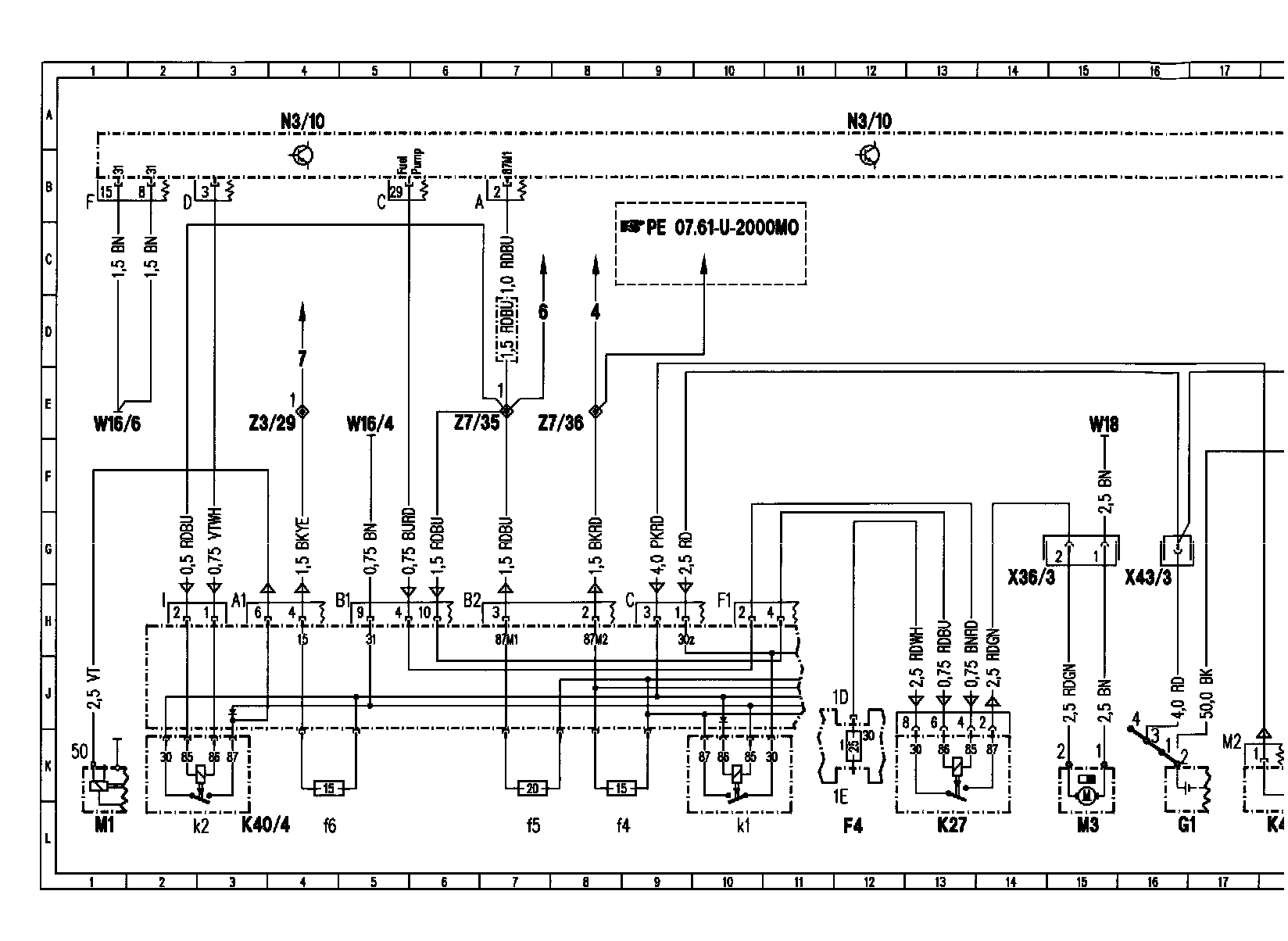

ME-SFI Fuel Injection & Ignition System
- Engine Block Harness


<n:

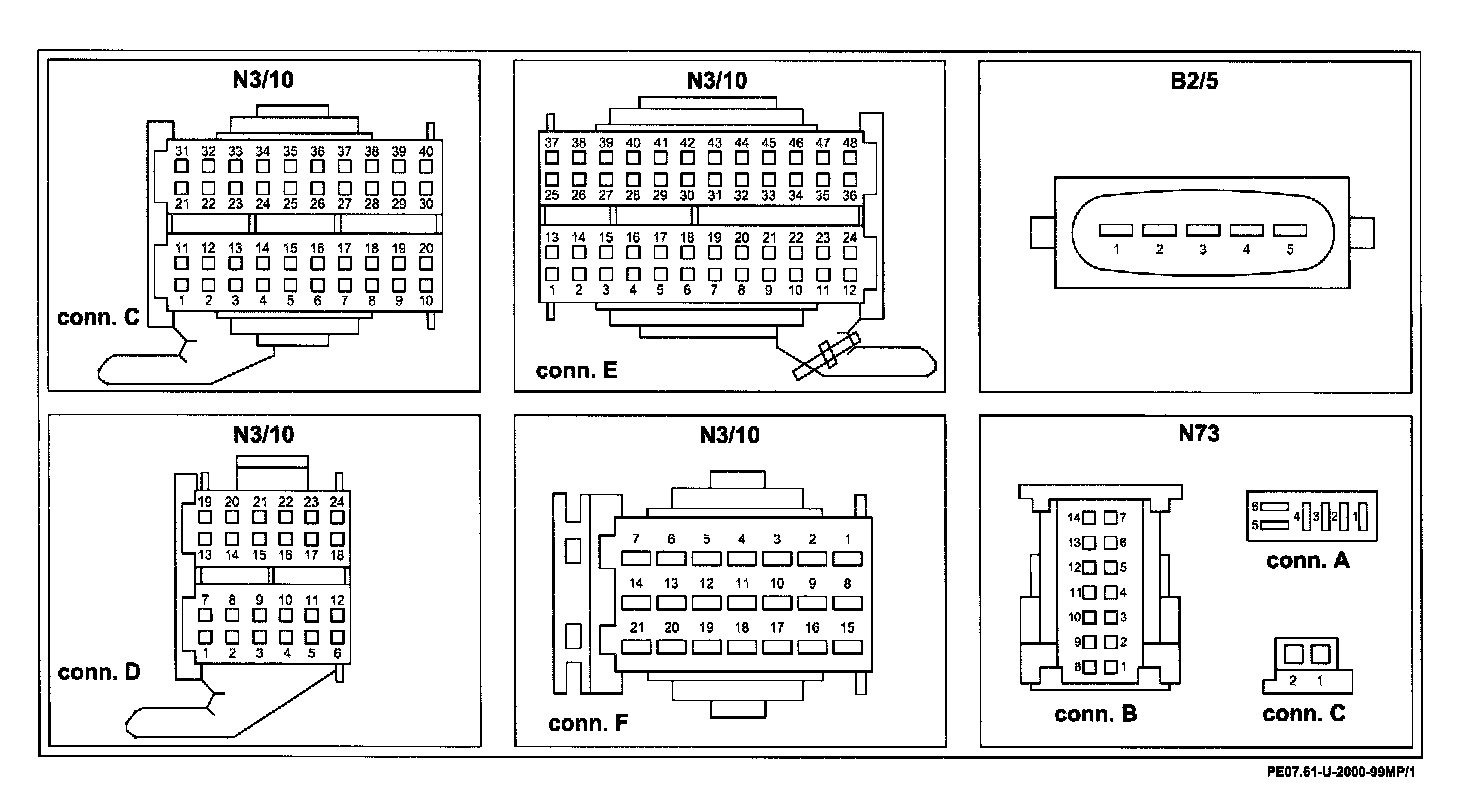

Connector Assignment:

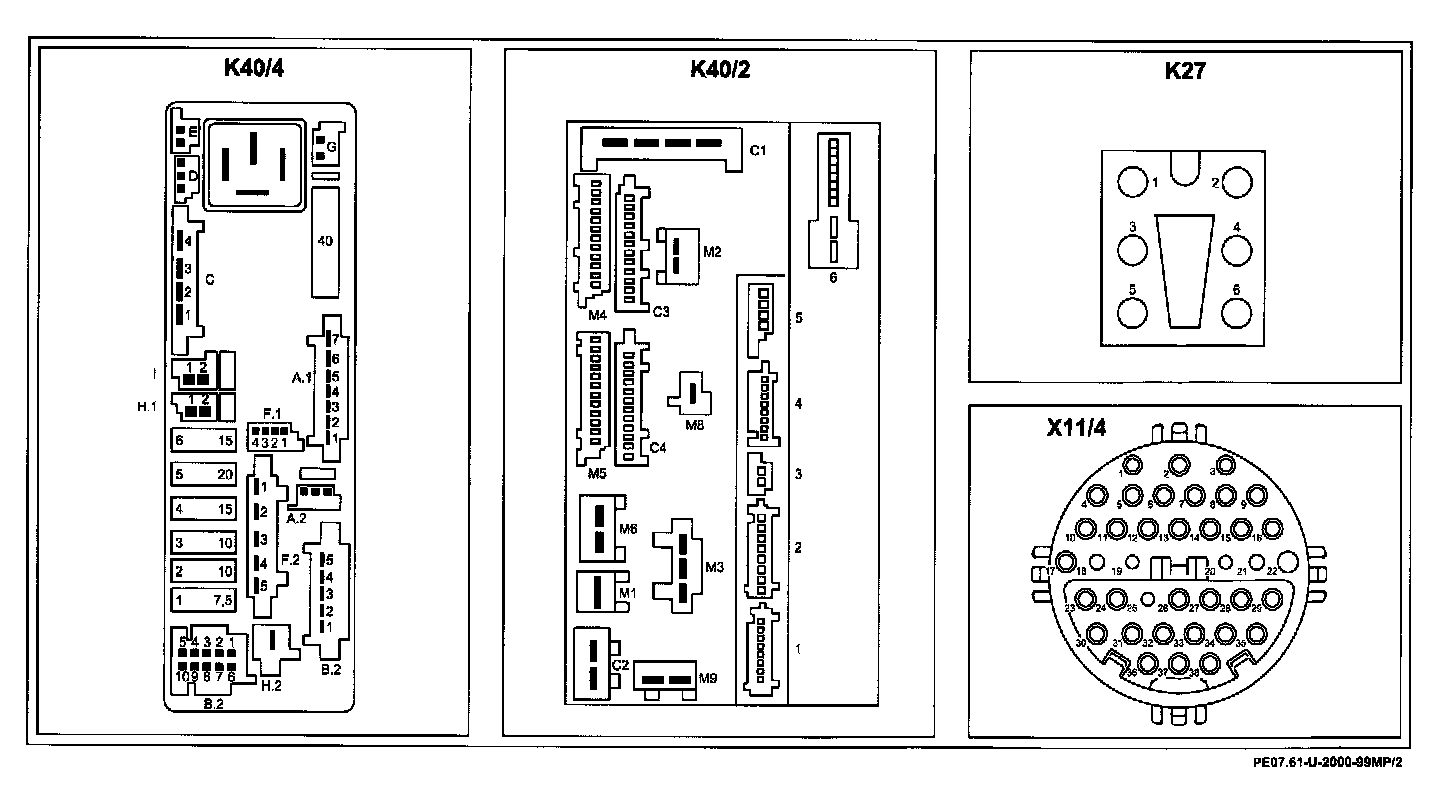

Connector Assignment:

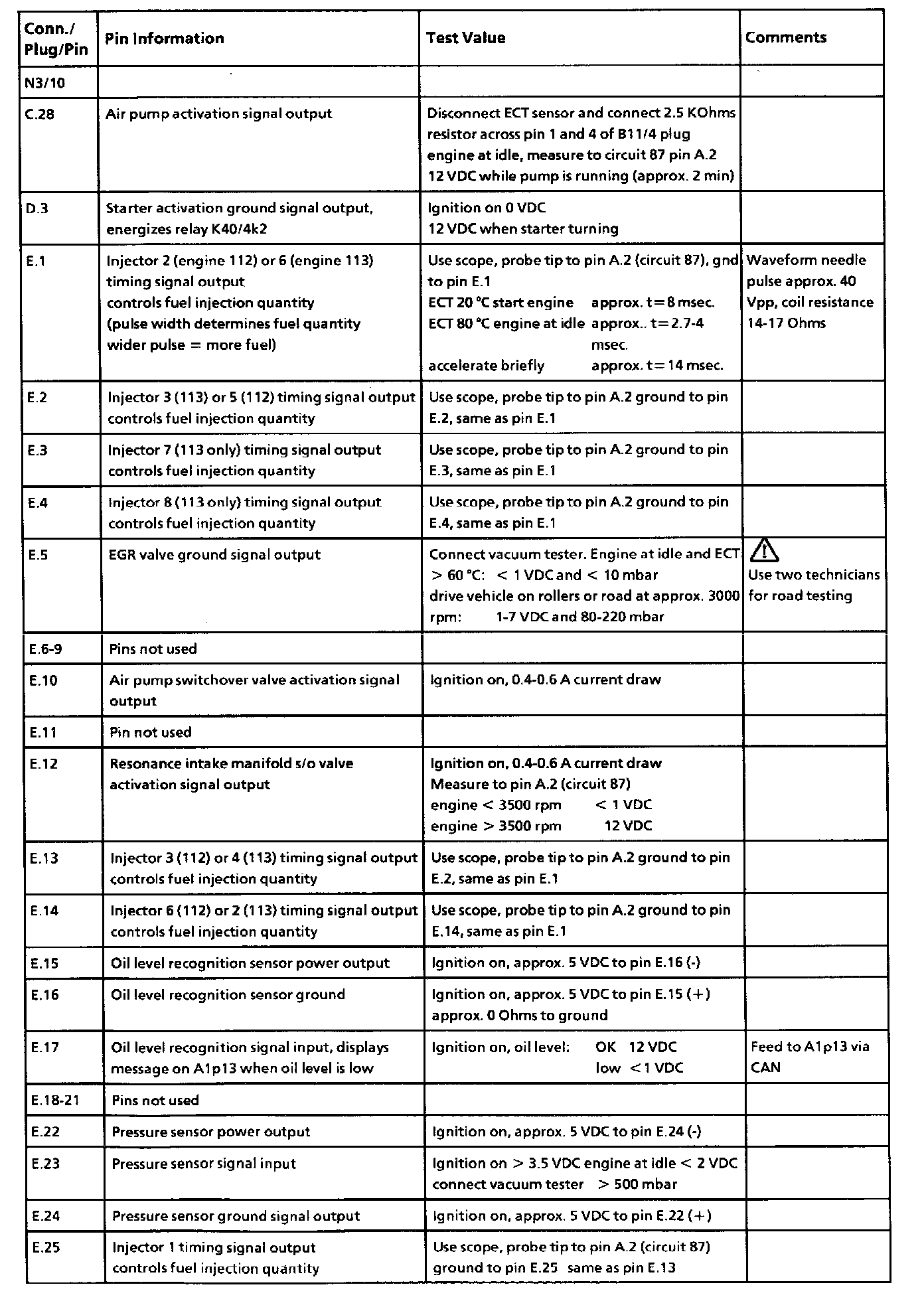

Pin Information, Part 1:

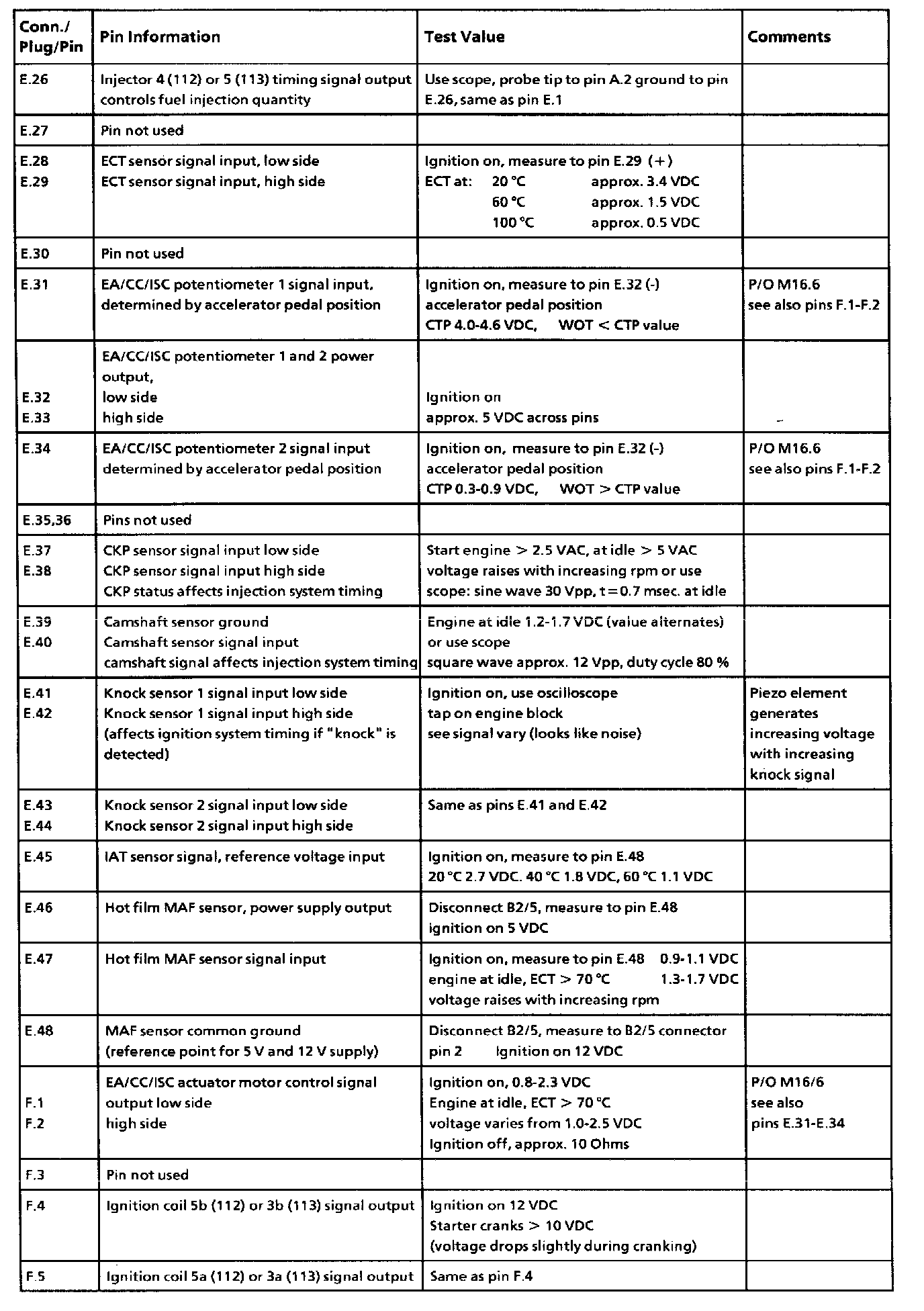

Pin Information, Part 2:

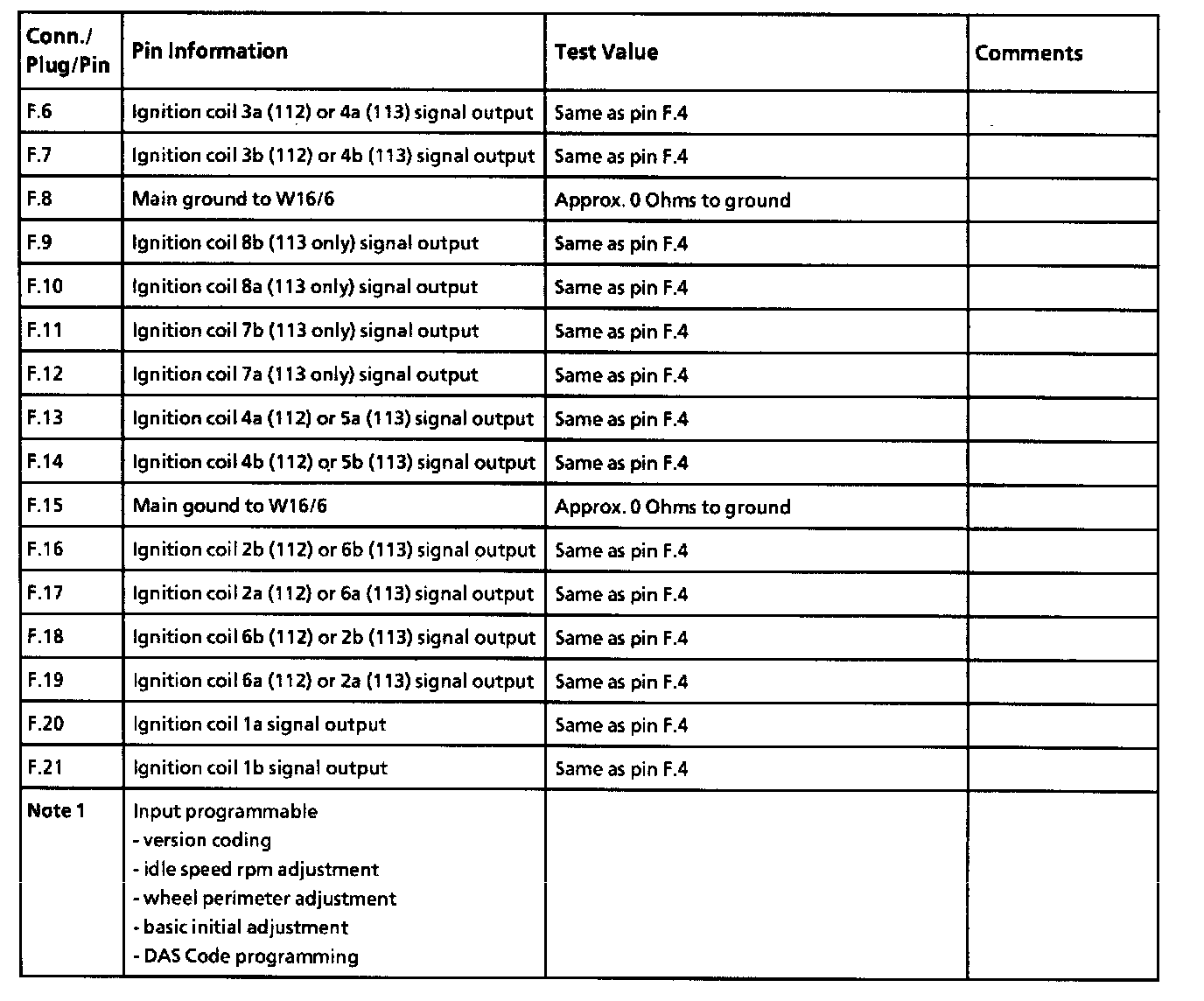

Pin Information, Part 3:
