CAN Bus - Engine Compartment PE00.19-U-2200ME
CAN Bus - Engine Compartment PE00.19-U-2200ME

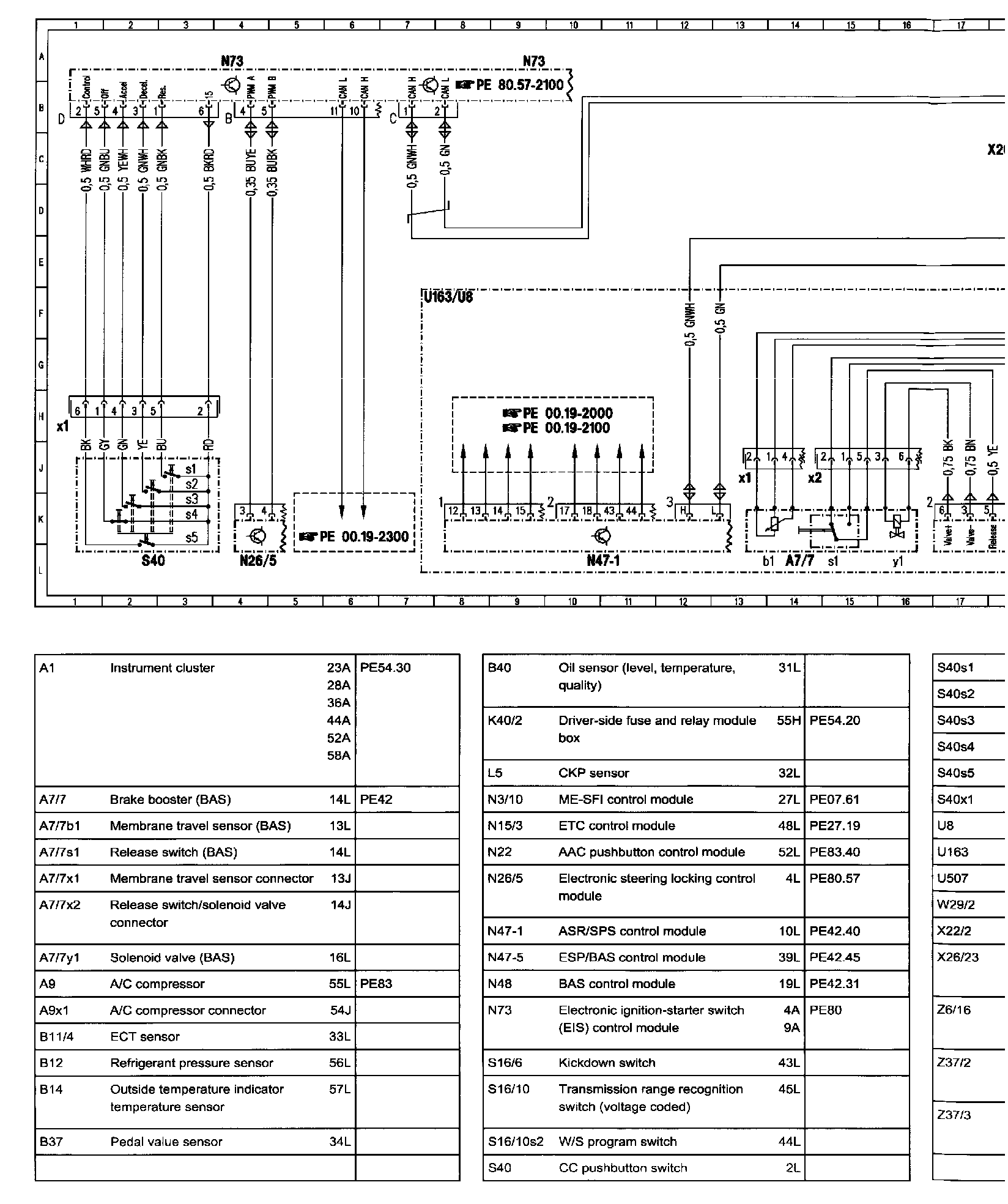

��a��aU bCAN Bus - Engine, PE00.19-U-2200ME:

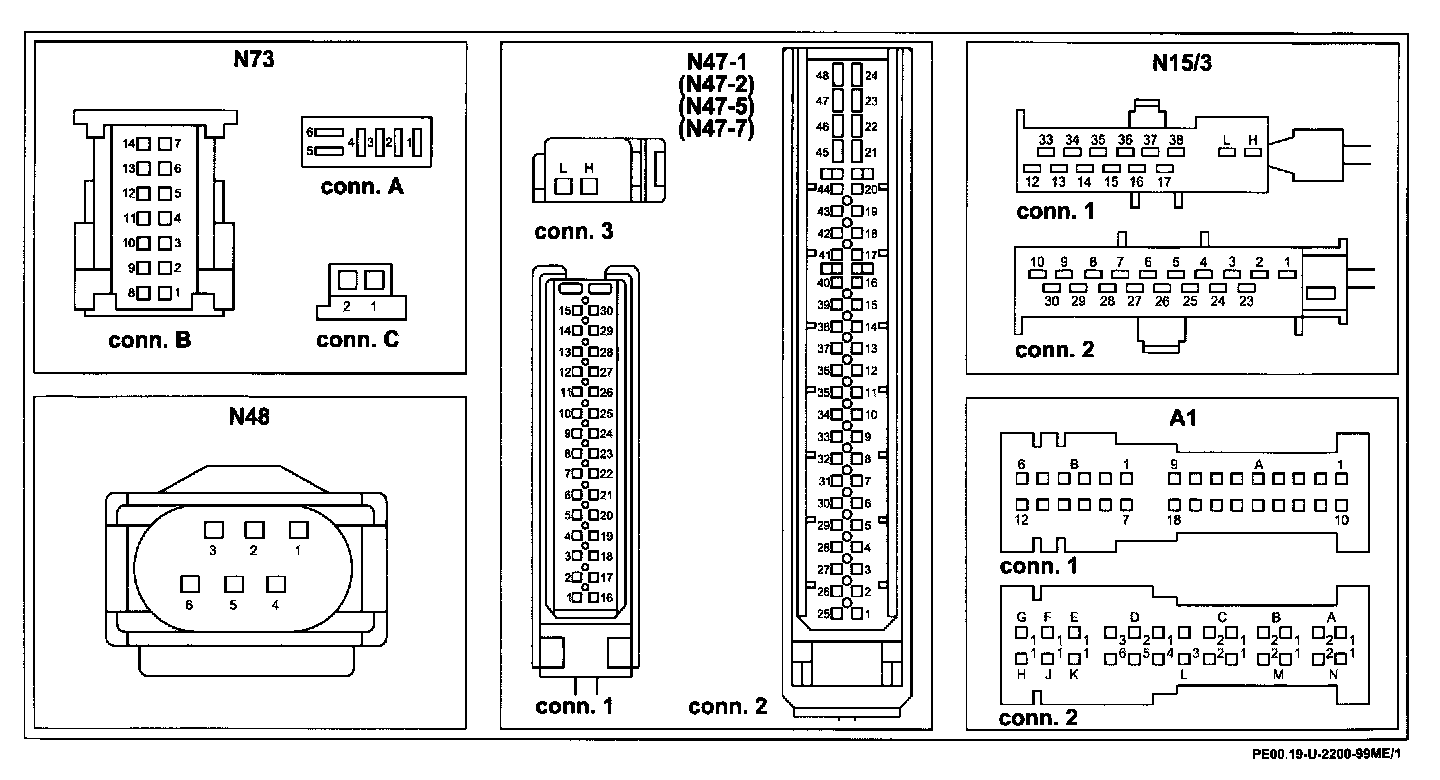

Connector Assignment:

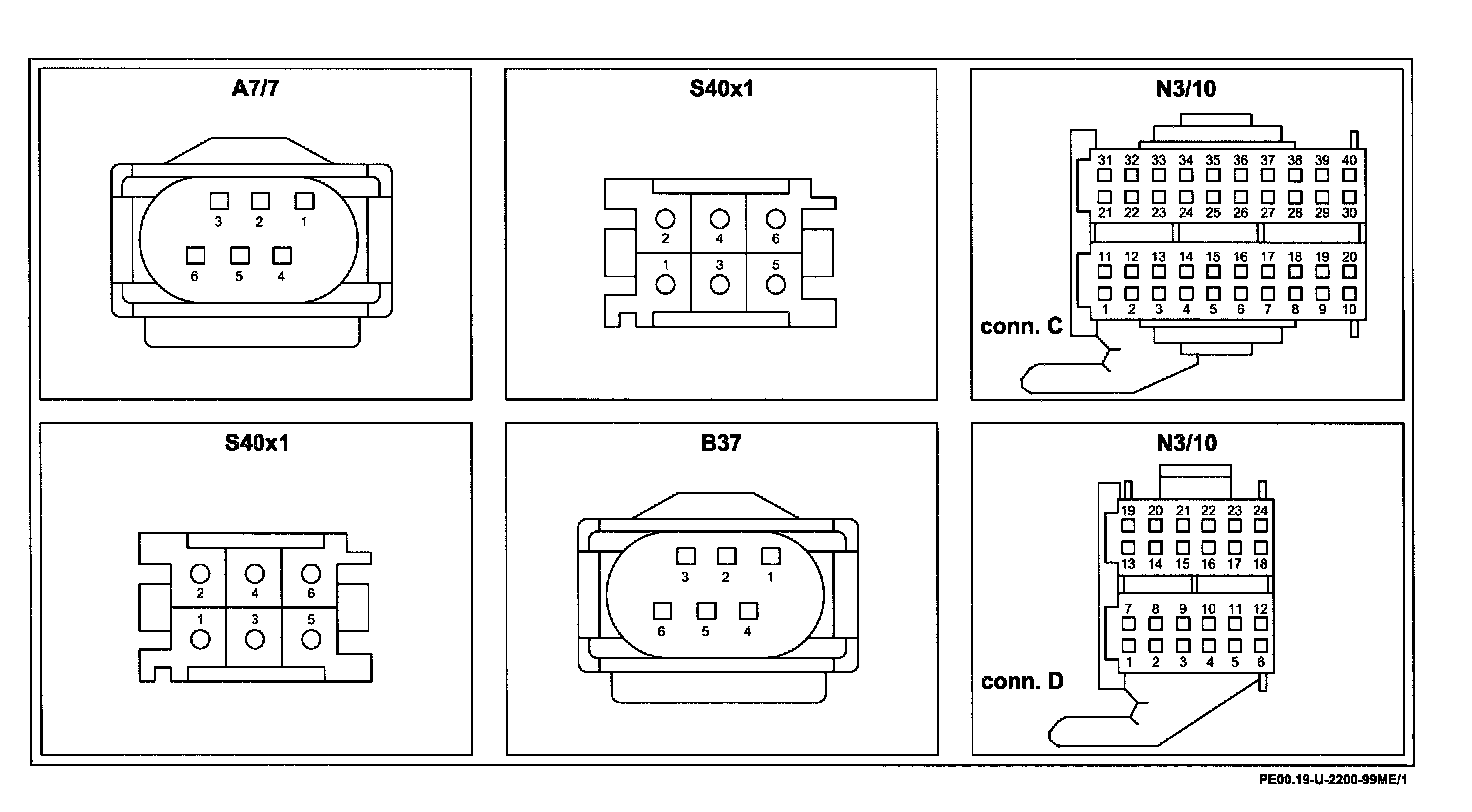

Connector Assignment:

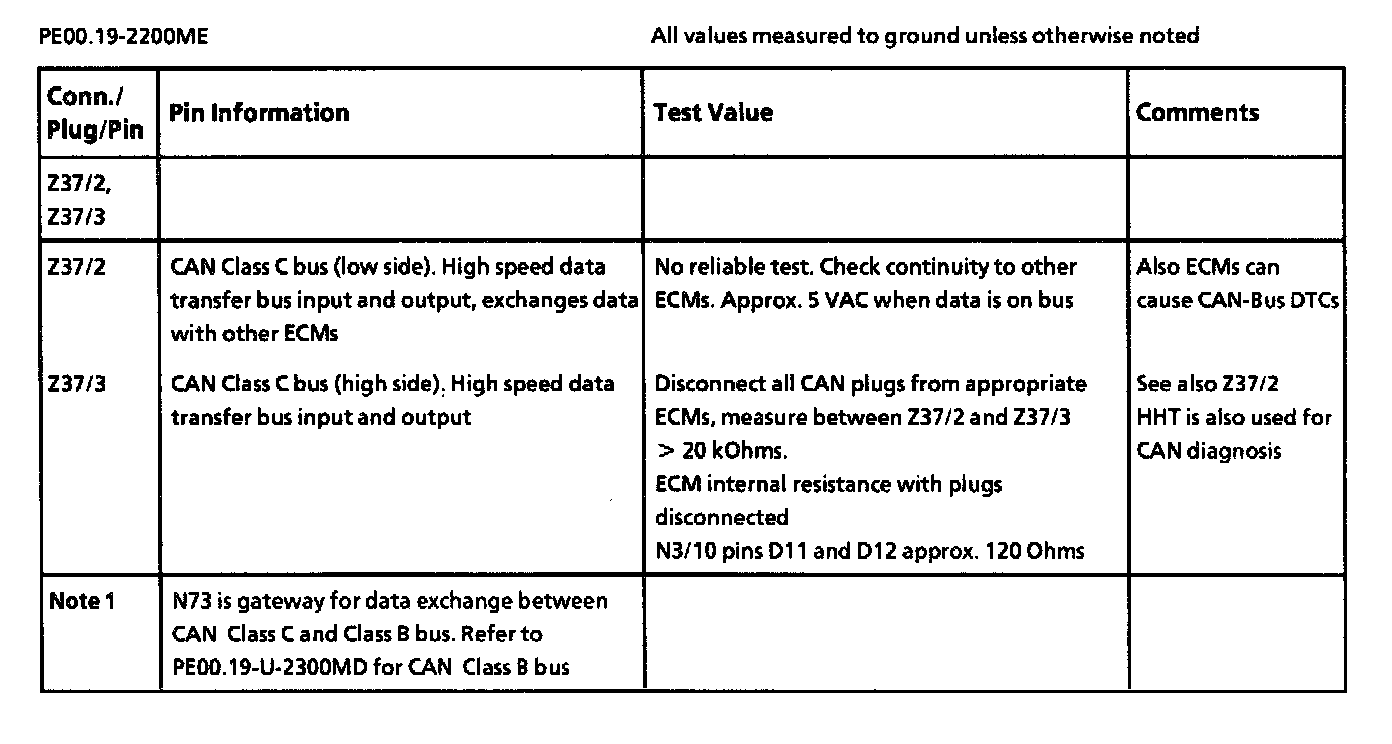

Pin Information:
